CT5

Quick look

CRYSTAL TOUCH door badge reader provides a multiple platform of RFID technologies and communication interfaces equipped with an 3.5” touch screen in a timeless design. CRYSTAL TOUCH suite almost all kinds of applications and environments installations and to the highest level of security.

CRYSTAL TOUCH incorporates with several chip technology and communication interfaces standards. For access control systems supporting OSDP secure channel a credential transaction can be complete AES 128 encrypted secured during the card reading and transmitting process between the reader and the access control controller. In additional to traditional radio frequency technologies such as 13.56MHz and 125KHz also BLE 5.0 and SAM AV2 are supported. This combination makes the product flexible for all kind of security applications and future technology requirements applicable for the security industry.

The touch screen indicates in combination with display text and buzzer sounds a user-friendly and clear information in real time for the user. CRYSTAL TOUCH is tamper protected with a mechanical switch which allows for indication both on attempts of break off and manipulation of the reader.

Advantages

· Linux based 3.5” colorful touch screen access control reader

· With embedded RFID reader compatible to dual frequency full range of 125KHz and 13.56MHz Ultralight, Mifare®, Mifare® Plus, DESFire® EV1/EV2/EV3 cards.

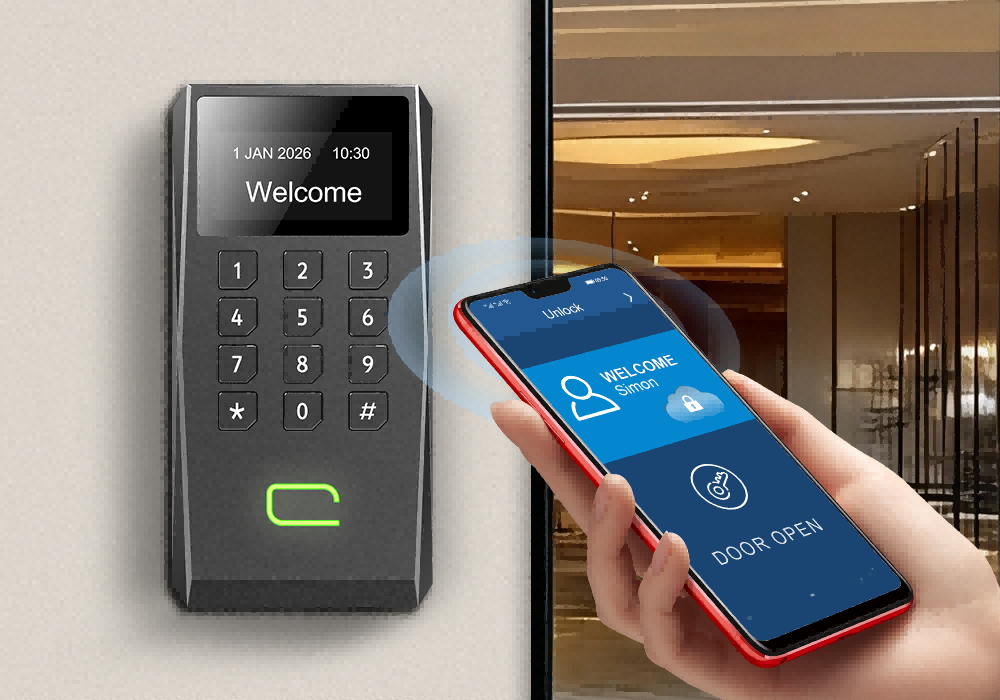

· BLE & IS018092 NFC for mobile ID door access control by using smart phone app

· SAM AV2 for increase the security of storing encryption keys

· Wiegand and RS485 (OSDP Secure Channel) communication interface, High compatible to third party controller

· CT5 access door reader is IP65 waterproof for outdoor installation .

For developer

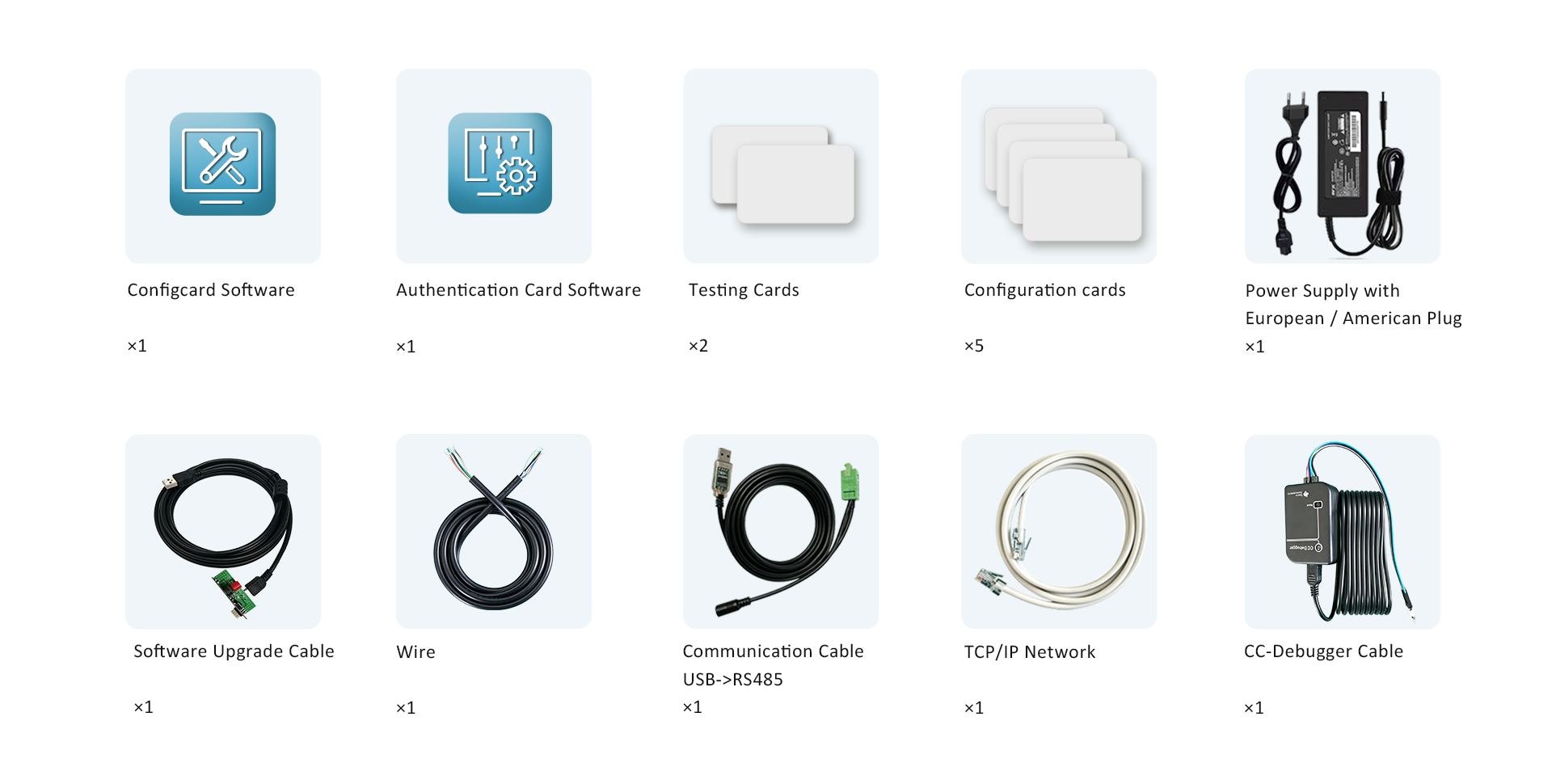

- Hardware testing package (HTP)

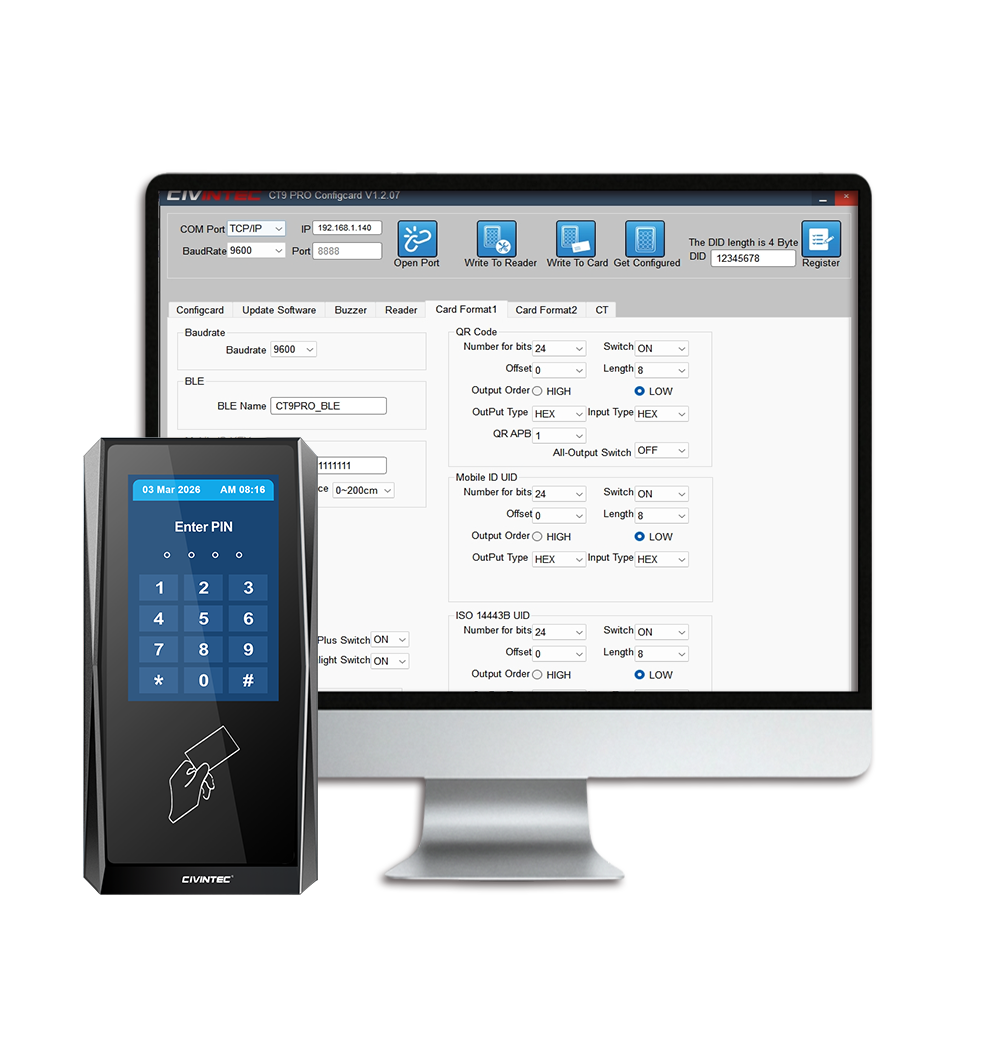

HTP is plug and play hardware testing, debug and upgrading package with all necessary accessories, software tool, configuration card to establish full testing environment for customer’s easy test, device configuration, fast development and software upgrade.

OEM & Customization Service

To make product stand out from the crowd, we offer the opportunity to profile your readers for increased recognition.

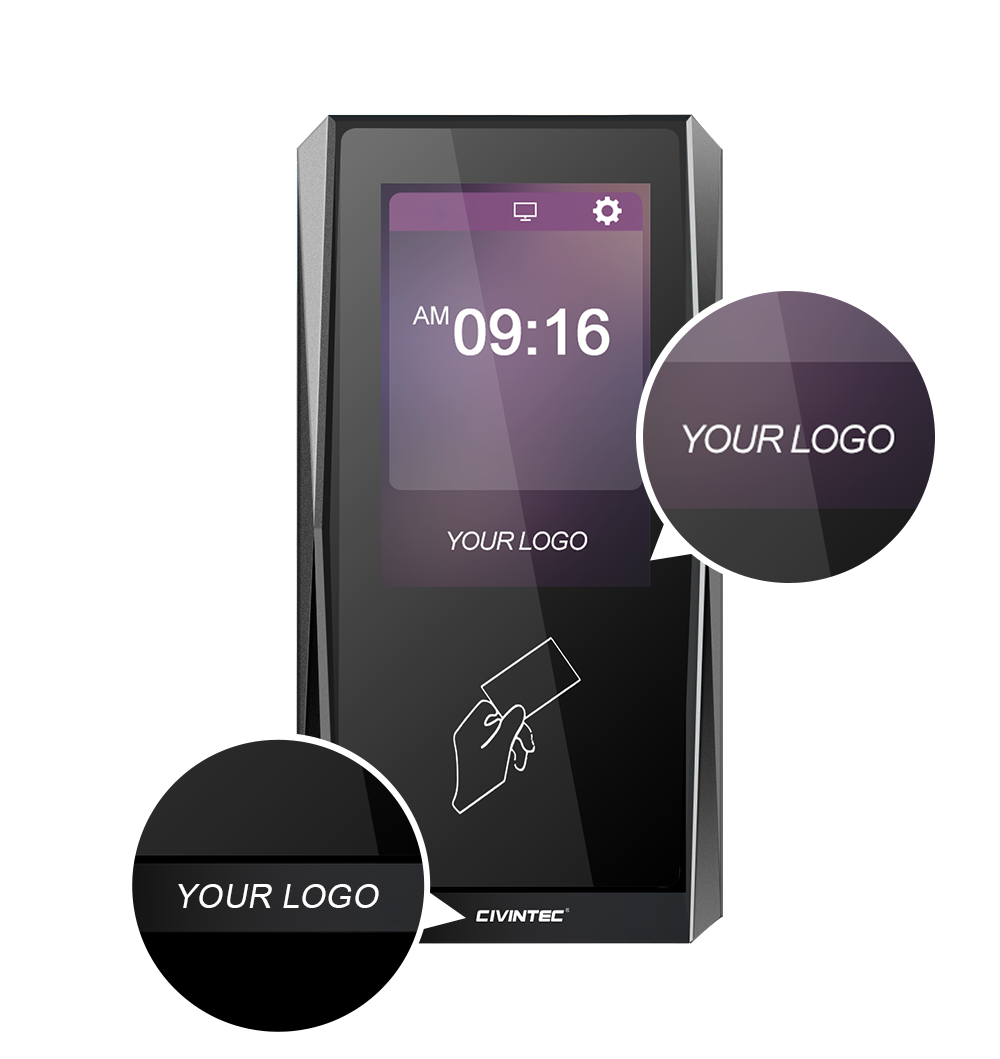

OEM service to enable logo printing in single or full color or program LOGO to display on touch screen. We also offer development customization service from hardware new features to software development.
