CT5

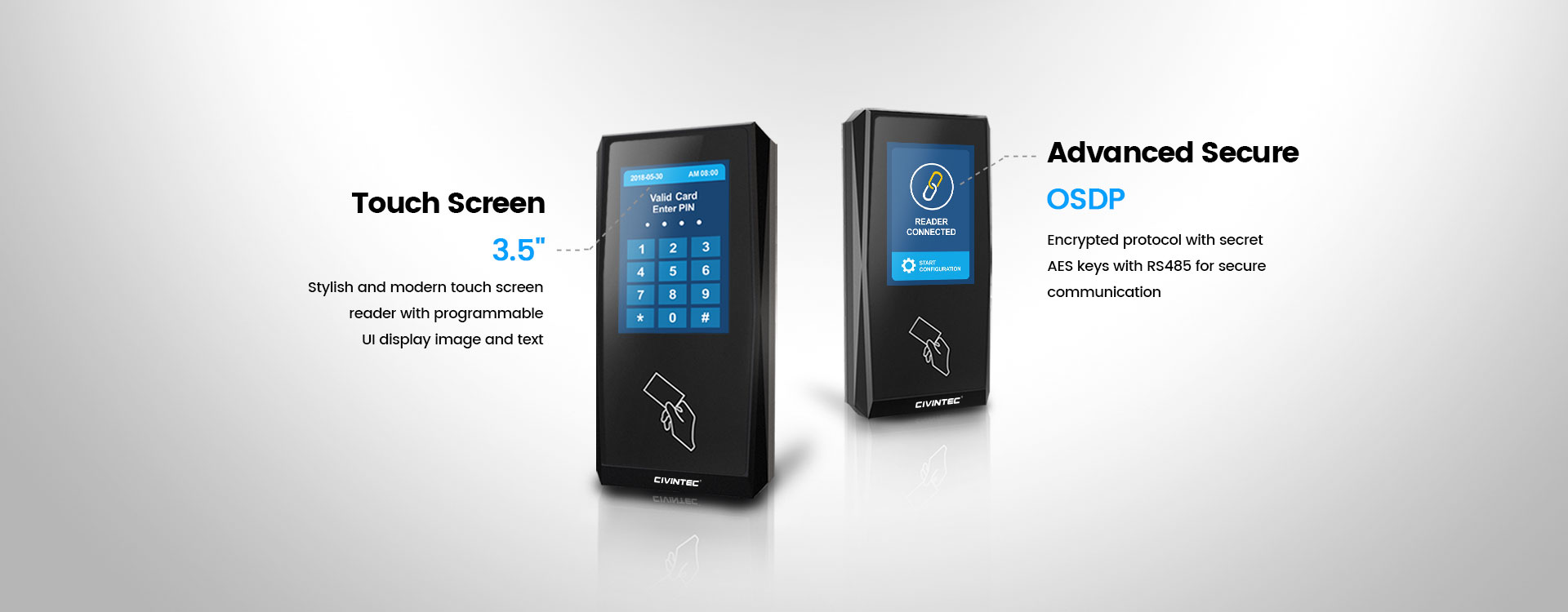

3.5” Touch Screen Mobile Access & RFID Card Reader
Secure OSDP/Wiegand Access Control Reader

Access Control Readers-banner

Access Control Readers-banner

Access Control Readers-banner

CT9 PRO_Server centralized access control terminal _CIVINTEC

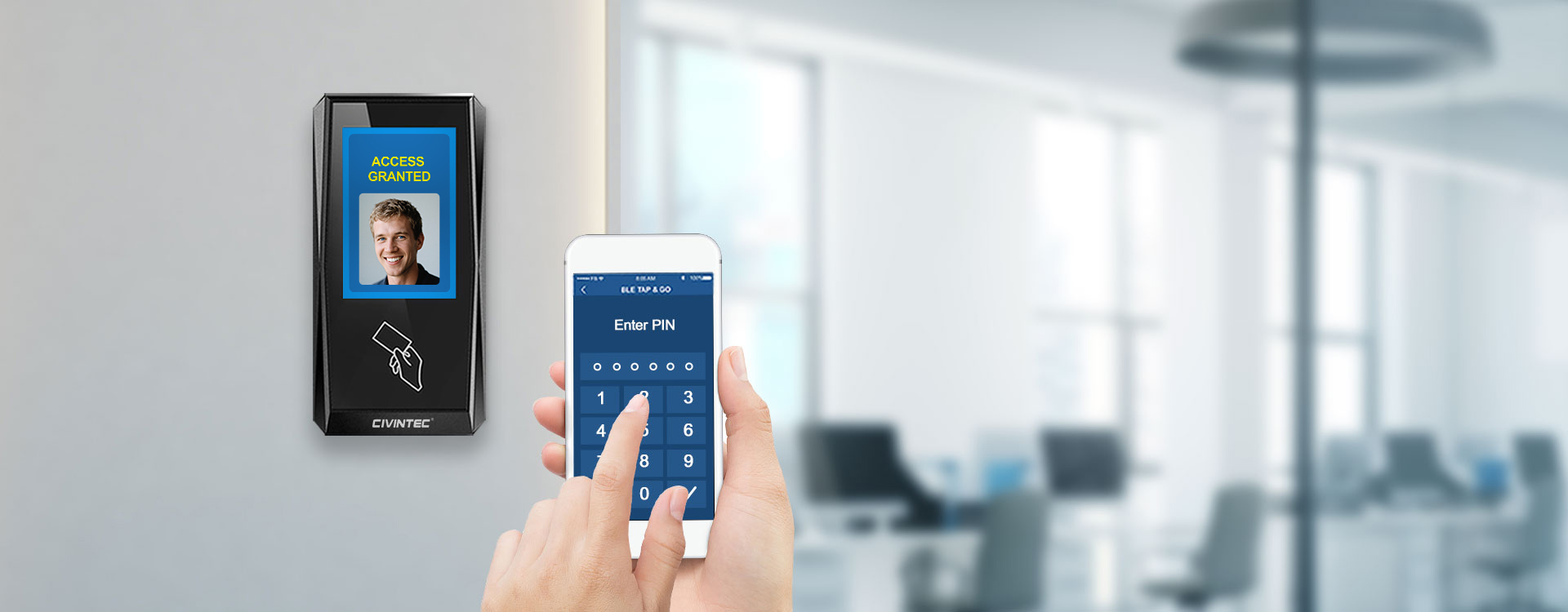

Your Phone Is The Room Key

Use smart phone as access credential for door lock control via NFC or BLE with advanced encryption.

Secure Identification Technologies

CT9 PRO_ Mobile Key access control_CIVINTEC

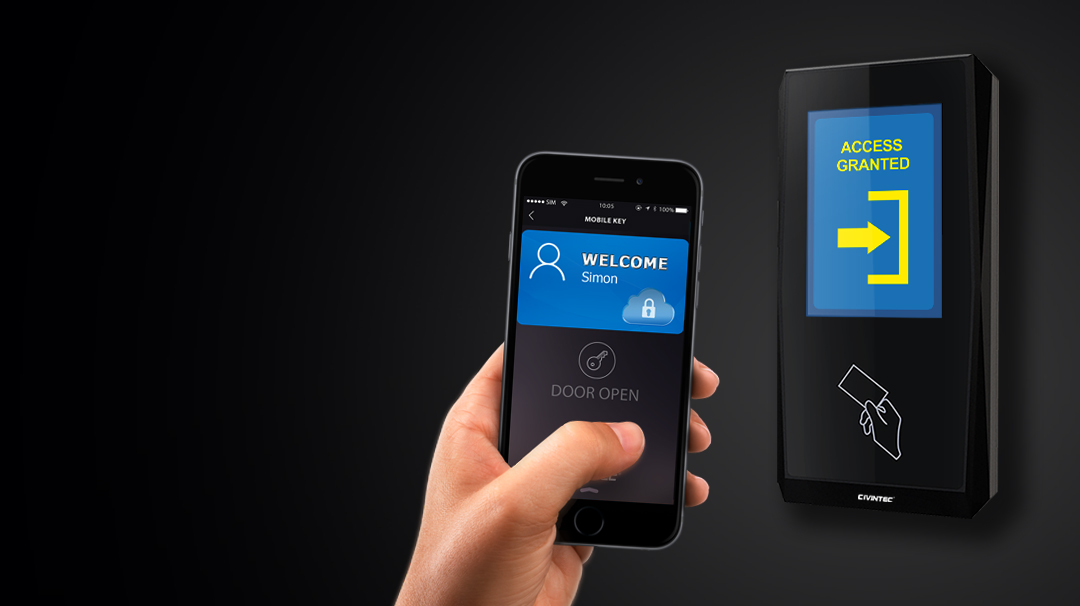

Your Phone Is The Access Key

Complaint with lSO18092 NFC and BLE Technology for Mobile lD Access Control in 5cm to 10M reading range

CT9 PRO_ QR code access control_CIVINTEC

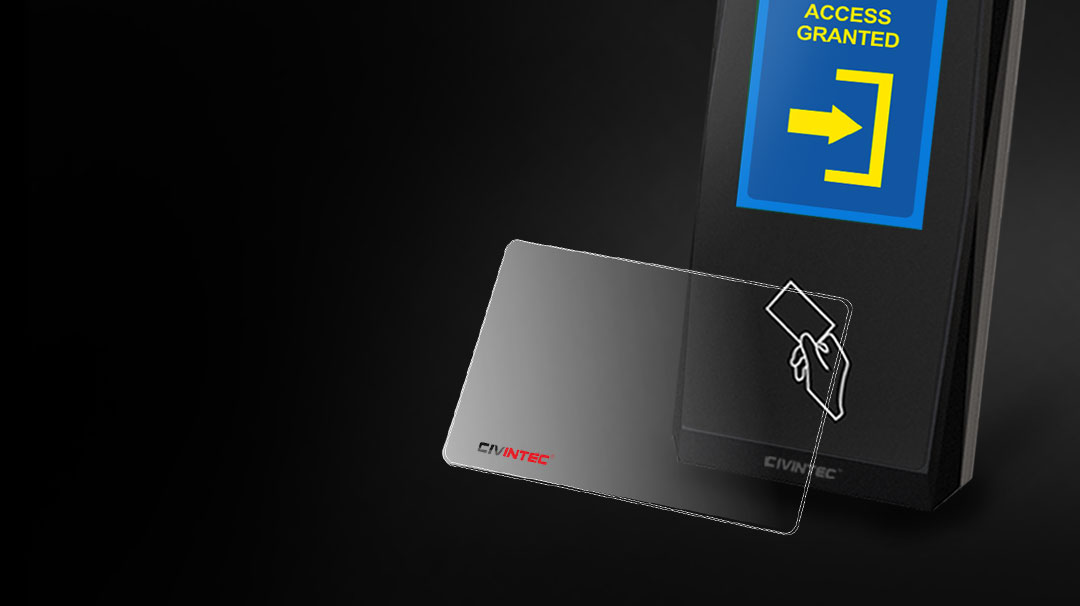

RFID & NFC Tags 125KHz+13.56MHz Encrypted Cards

EM, ISO14443A/B Mifare®, Mifare® PLUS, DESFire® EV1/EV2 with ISO7816 SAM (Secure Access Module) for data encryption

CT9 PRO_ Dynamic QR Code access control_CIVINTEC

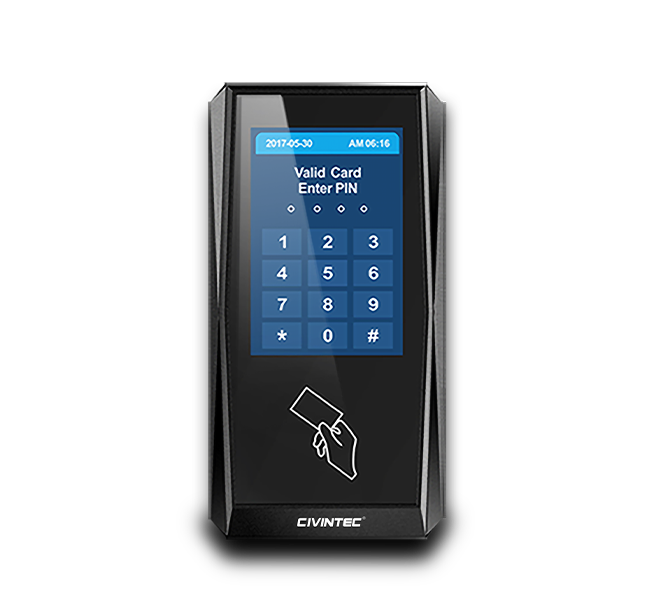

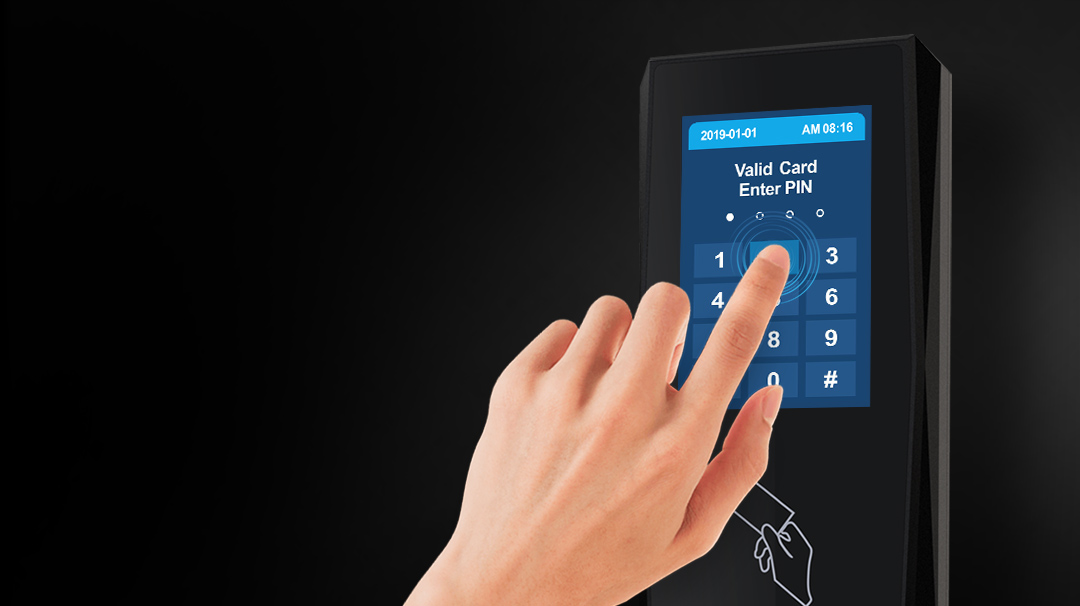

Touch Keypad

Capacitive touch screen keypad for Secure PIN Code Access Control

CT9 PRO_ Cloud Server Real-time Online Remote Access Control_CIVINTEC

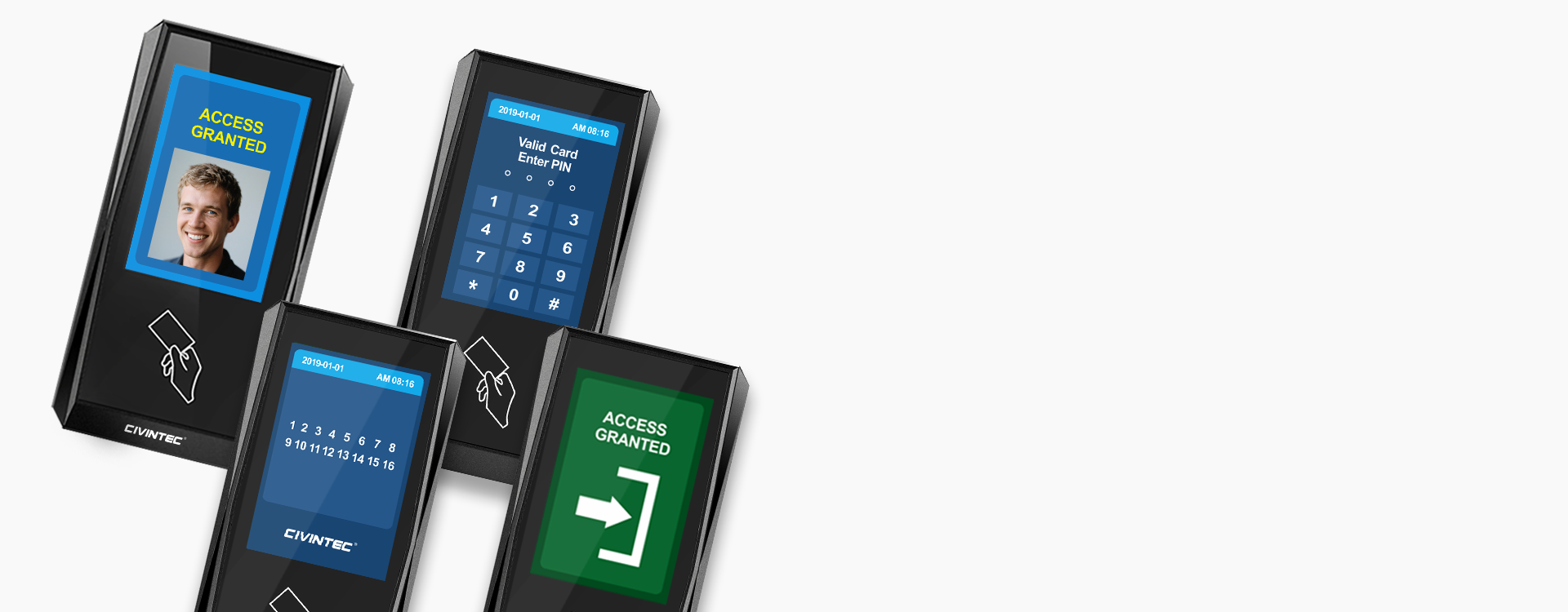

The Stylish 3.5" Colorful Touch Screen Intuitive Indication

· Programmable Ul design to display LOGO, 16 characters*2 lines TEXT (Support OSDP command)

· Support PIN Code and combination of smart card ID/Mobile lD and/or PIN Code multiple working modes

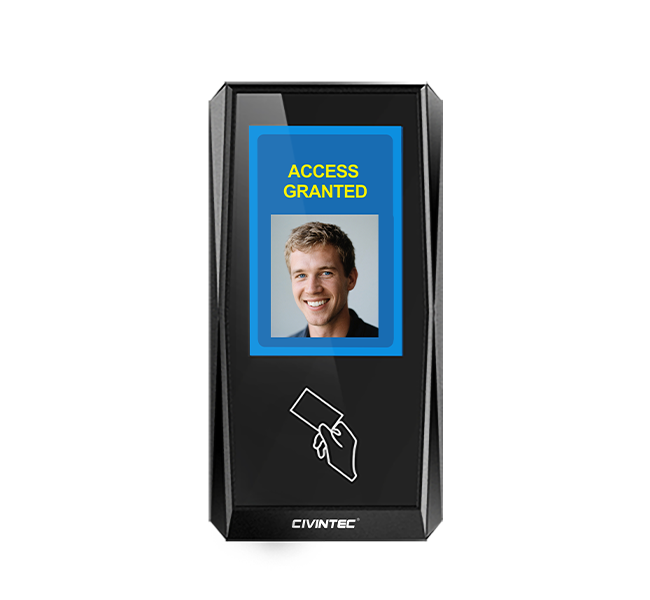

· Support visitor’s photo display on the 3.5" touch screen

· Multiple indicators of access granted, denied, tamper alarm

CT9 PRO_Cloud Server Real-time Online Remote Access Control_CIVINTEC

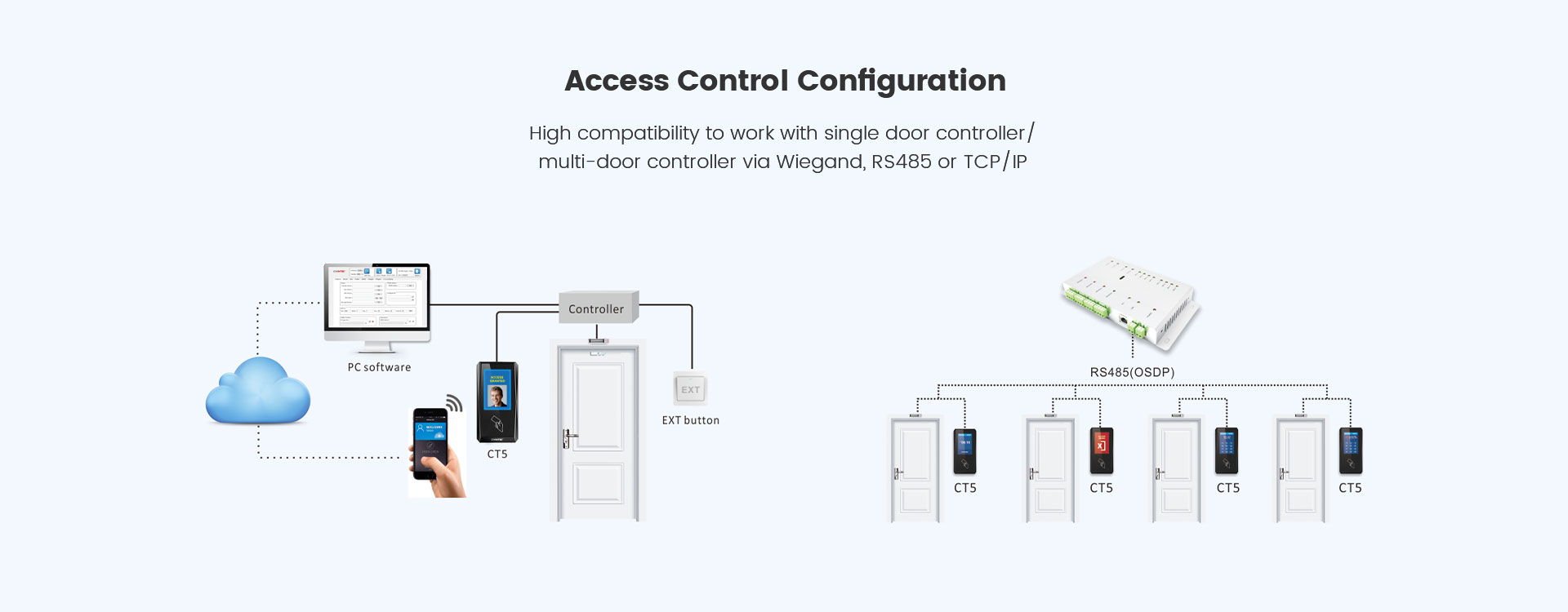

Easy Integration With Access Controller

CRYSTAL touch keypad reader offers universal compatibility to work with the third party access controller via Wiegand, RS485 (OSDP)

CT9 PRO_Tamper Alarm Access Control_CIVINTEC

CT9 PRO_PoE access control with relay_CIVINTEC

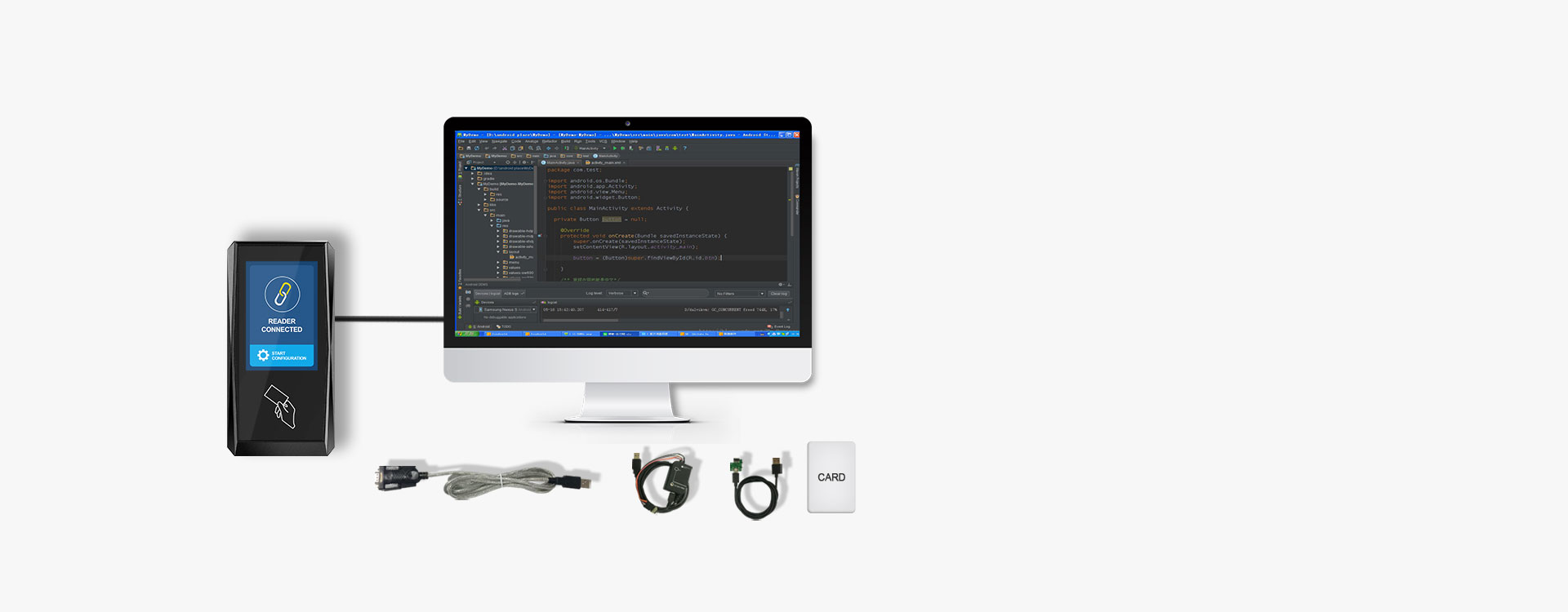

Plug & Play Testing Tool And Software Tool

CONFIG SOFTWARE TOOL & CONFIGCARD make users easily manage encrypted key, reader configuration, functional test and reader upgrading.

CT9 PRO_IP65 Weather-Resistant access control_CIVINTEC

Specification



CT5
CRYSTAL TOUCH READER

CRYSTAL TOUCH

CT5

Display

3.5" touch screen

Operation System

LINUX
KeypadTouch PIN pad

ISO-protocol

125KHz, 13.56MHz ISO14443A/B, NFC

Contactless cards

125KHz Prox,125KHz EM,13.56MHz Mifare® Classic, Ultralight®,Ultralight®C, Mifare® Plus, DESFire® EV1/EV2/EV3,NFC tags(T2T,T4T)

High Secure Access Level

ISO7816 (T=0, T=1) 1 SAM module with AV2/AV3(on request) supports with MIFARE ® SAM AV2/AV3 which gives the possibility to further increase the security of storing encryption keys (Evaluation Assurance Level, for EAL5+/EAL6+) and also allows for diversification of encryption keys.

Mobile Credential BLE, NFC ( Support BLE in iOS, and NFC/BLE in Android)
Communication Interface

1x Wiegand Out (26-1024bit) , RS485(OSDP protocol), BLE 4.0

Power Supply

9-30V DC

Indicator

Controllable buzzer and TP display, speaker with controllable volume

I/O Port

2*I/O Port, 1* tamper alarm switch

Installation

Terminal block connector, wall mount or flush mount

Protection Class

IP65 electric epoxy potted

Resistant to UV ray (suitable for UV-resistance model)

Operation Temperature

-20 ~ +60°C

Operation Humidity

0-90% relative humidity non-condensing
CertificationCE & RoHs3


* The specifications are subject to change without notice.
