Touch keypad Terminal
with Embedded Linux OS & SDK
+
Embedded 4G, WiFi & TCP/IP HTTP/HTTPs protocol
for both LAN & Internet Server Software
+
Embedded Relay Control for Lock & Facility Control
Support Both of Host Mode & Local Mode

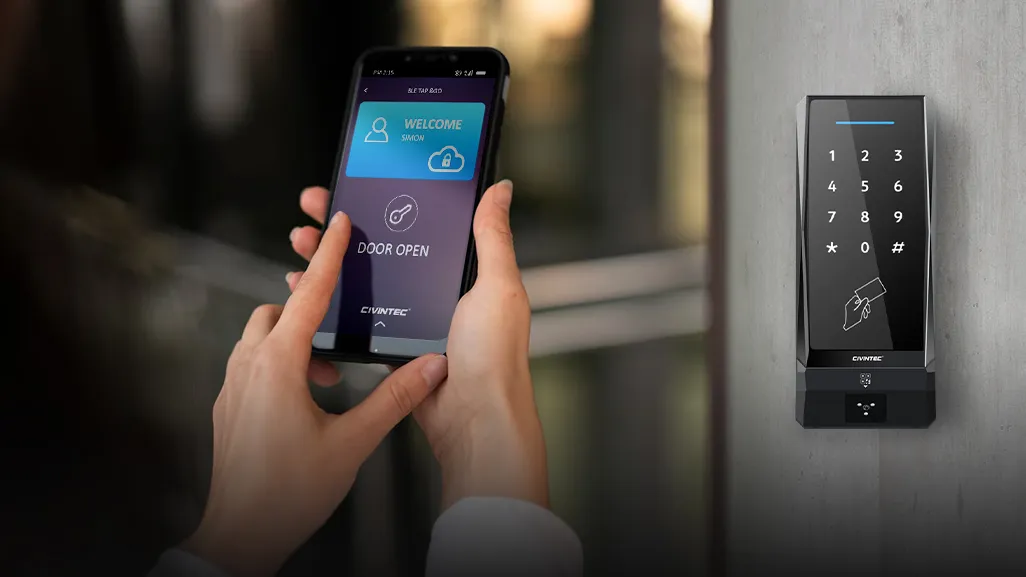

Server centralized door access control allows you to use mobile app as a credential for door access control and visitor management
Touch free access control compliant with encrypted BLE and NFC technology to use smart phone or smart watch as mobile virtual card

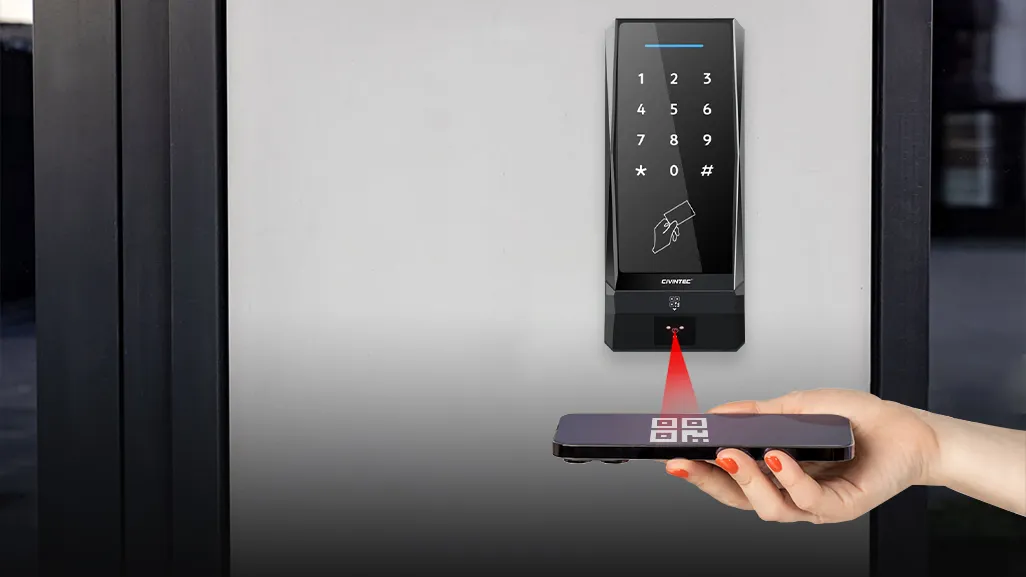

CT9 E with assembled QR code scanner to support multi-formats QR Code 1D & 2D codes, QR & Micro QR codes and Barcode, ideal for touch free visitor access control

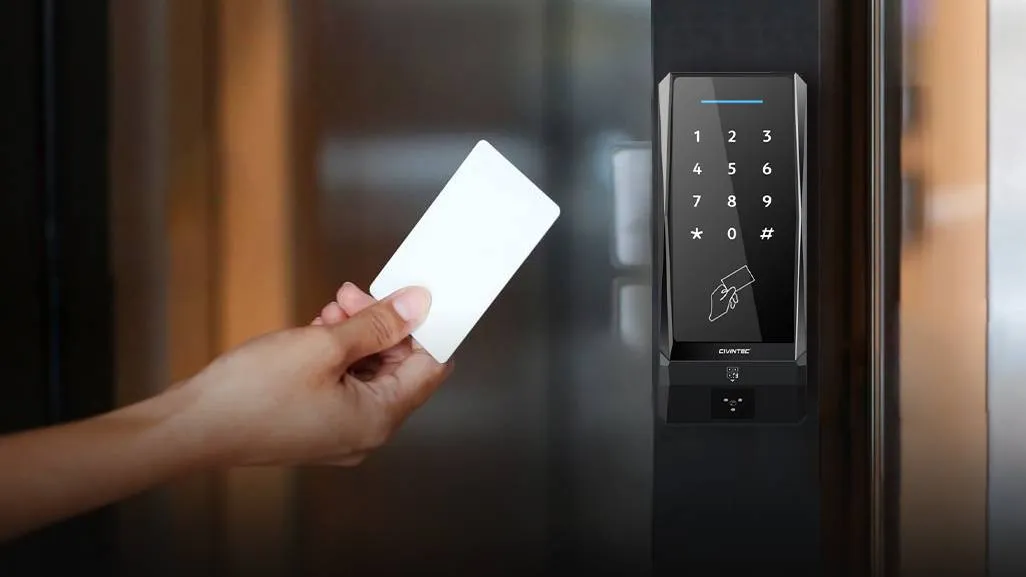

Support both 13.56MHz and 125KHz RFID, compatible with the most popular RFID smart cards
including Mifare®, Mifare Plus®, DESFire®, smart cards

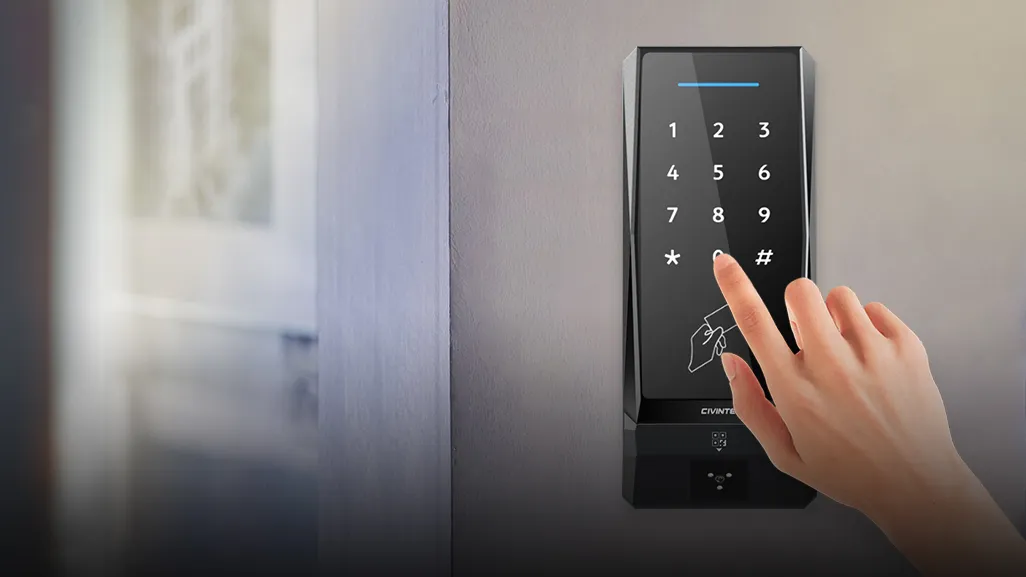

Programmable 4-8 digit length of PIN codes, supports multiple access modes, Card or PIN, Card+PIN, PIN Code Only, Card Only

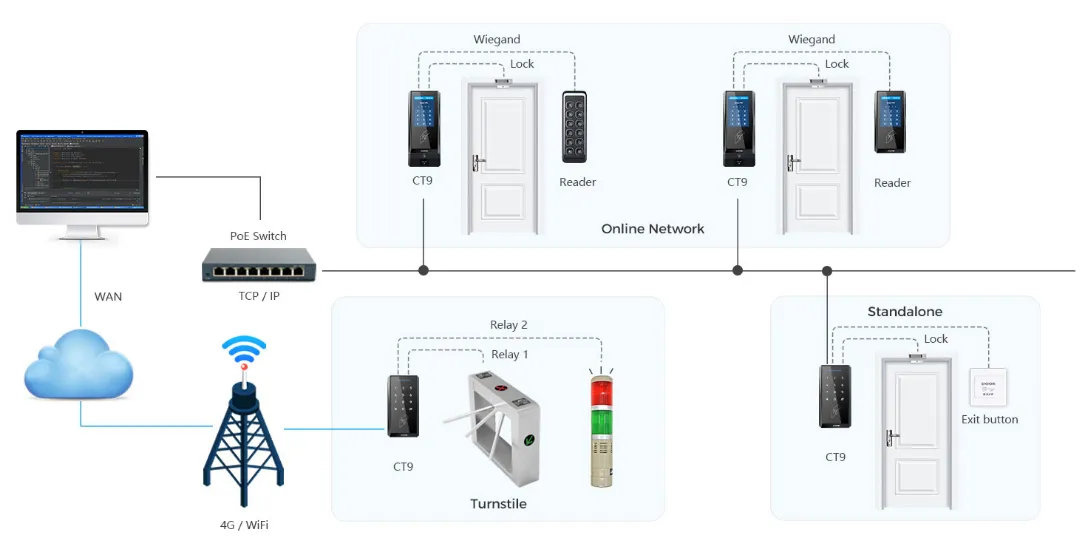

Bio-direction encrypted HTTP/HTTPs communication via GET/POST commands between CT9 E door access systems and server for online remote door lock, turnstile and various facility control. Features of WiFi, BLE, 4G and TCP/IP Ethernet PoE port offer a flexible and cost-save installation well-suited for various network environments.

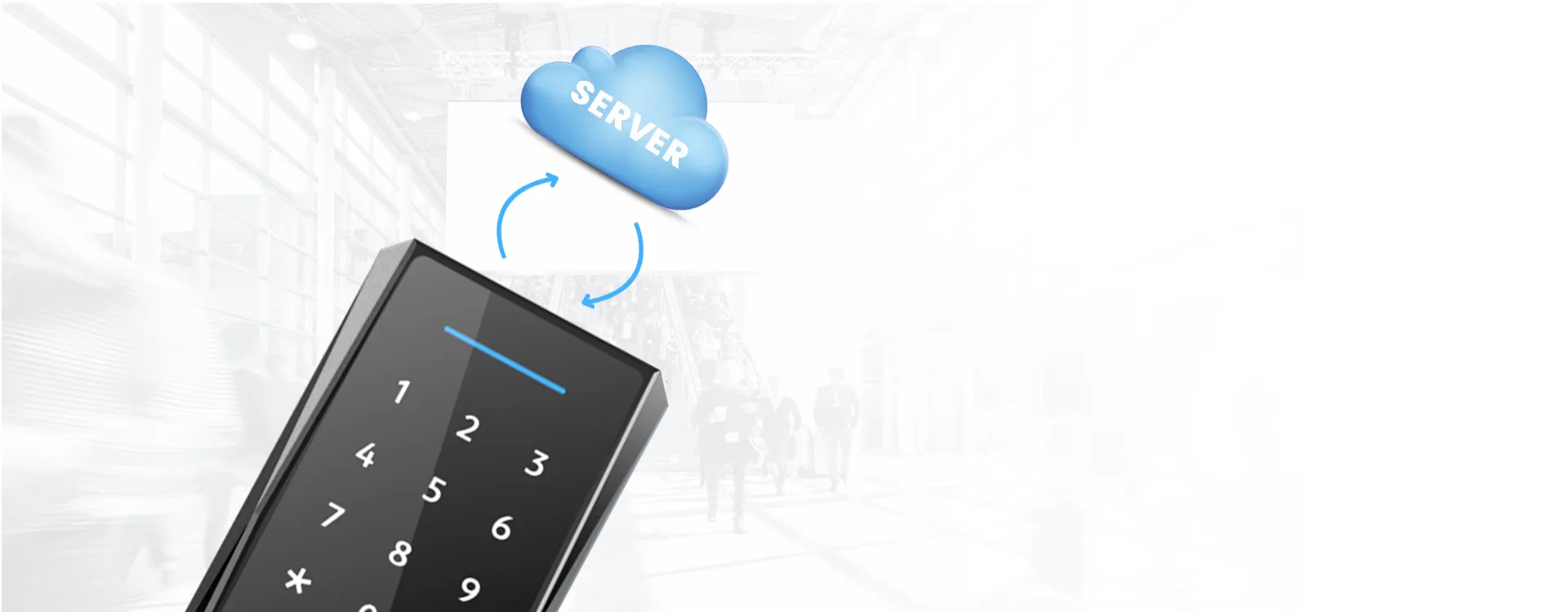

Auto switch between Host and Local modes protect door access security under offline mode and provide server online remote control and management solutions.
As an extremely secure encryption system, CT9 E implements the encryption of all credentials and personal information avoiding the risk of cloning, and also protects data security through encrypted communication protocols.

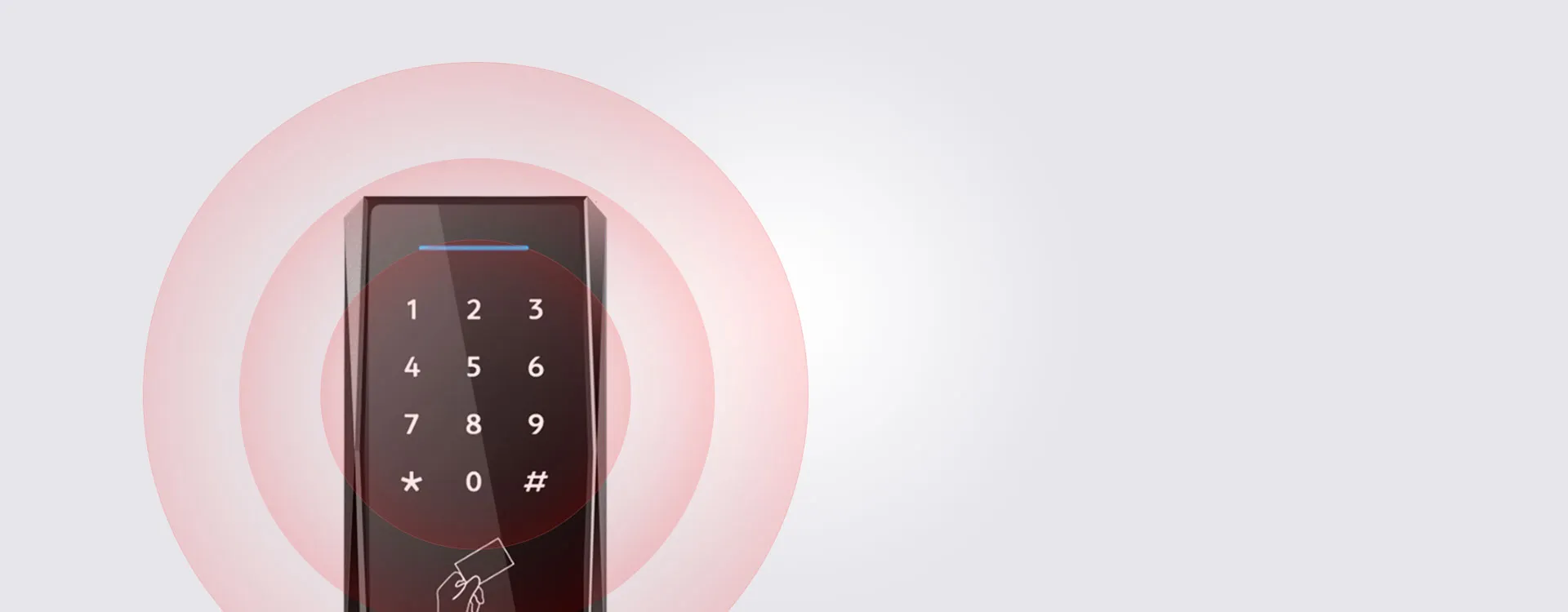

With integrated tamper alarm monitoring, CT9 E door access control enhance security by providing real-time alarm.
Support RS485, Wiegand communication protocols, and versatile GPI/O interface, smart relay control to build comprehensive security and IoT systems features of less wiring and cost-save installation.

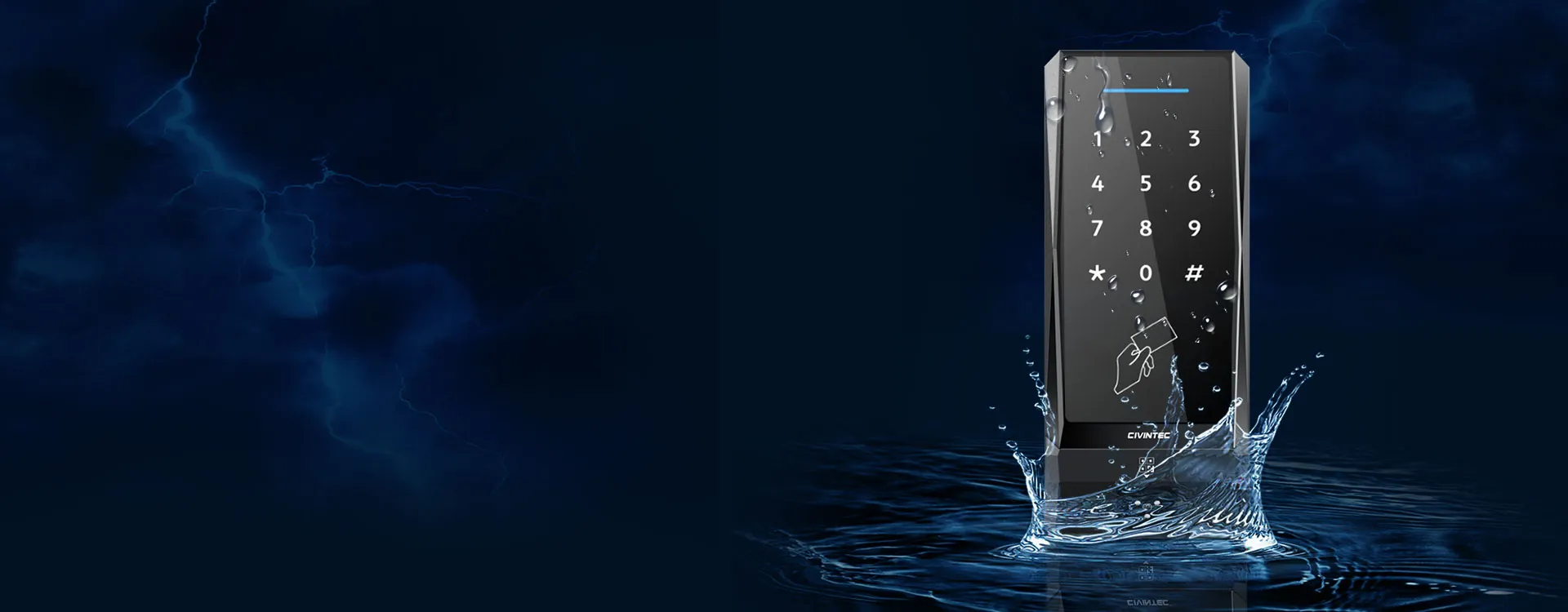

With IP65 ratings, CT9 E is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments
Robust SDK with demo software is offered for the third-party server software integration and development. HTP plug and play hardware testing package with all necessary accessories, software tool to establish full testing environment for easy testing, configuration, fast development and software upgrade.
 | |
| CT9 E | |
| CT9 FAMILIY TERMINAL | |
| RFID Contactless Cards | - 125KHz PROx, 125KHz EM - 13.56MHz Mifare® Classic, Ultralight® , Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags |
| Secure Access Module | ----- |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR scanner | - Decode range: 20mm - 150mm(QR 20MIL) - Roll/ Pitch/Yaw: 360 °, +55 °, +55 ° - Multiple formats supported (1D & 2D Codes) : QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes . |
| Keypad | 12 digit Touch keypad in 4 rows of 3 keys in each row with white LED backlit controlled to ON/OFF and auto, intensely adjustable |
| Communication Interfaces | - TCP/ IP(RJ45) - 4G - WiFi 2 .4GHz IEEE802.11b/g/n(on request) - RS485, wiegand input |
| I/ O port | 3 * Inputs - Door contact, Door exit, Buzzer control 4 * Outputs - Tamper alarm switch, Output Buzzer control, Access Granted, Access Denied |
| Relay | 1 or 2 relay outputs |
| Fire alarm | 1 Input to connect fire alarm |
| Operating System | LINUX |
| Display | ----- |
| Access control mode | Mobile ID, QR Code, RFID Card, Pincode |
| Online Card Users / Event logs | Unlimited |
| Offline Card Users / Event logs | 10,000 users / 50,000 logs (more on request) |
| Working Mode | Host mode or Local mode |
| APB access control | Yes, external wiegand reader |
| Indicators | - Controllable tri-color LEDs with red, green, blue and amber colour - Controllable Buzzer and speaker |
| Housing Dimensions | Basic Model: 24mm(D) * 165mm(H) *84mm(W) |
| Power supply | - 12~ 24V DC - PoE IEEE 802 . 3af |
| Installation | Wall mount with terminal block connector |
| Protection Class | IP65 electric epoxy potted (request waterproof spacer) Resistant to UV ray |
| Operation Temperature | - 20 ℃ ~ 60 ℃ |
| Operation Humidity | 0-90% relative humidity non-condensing |
| Upgrade | Support OTA software and firmware upgrade |
* The specifications are subject to change without notice.
