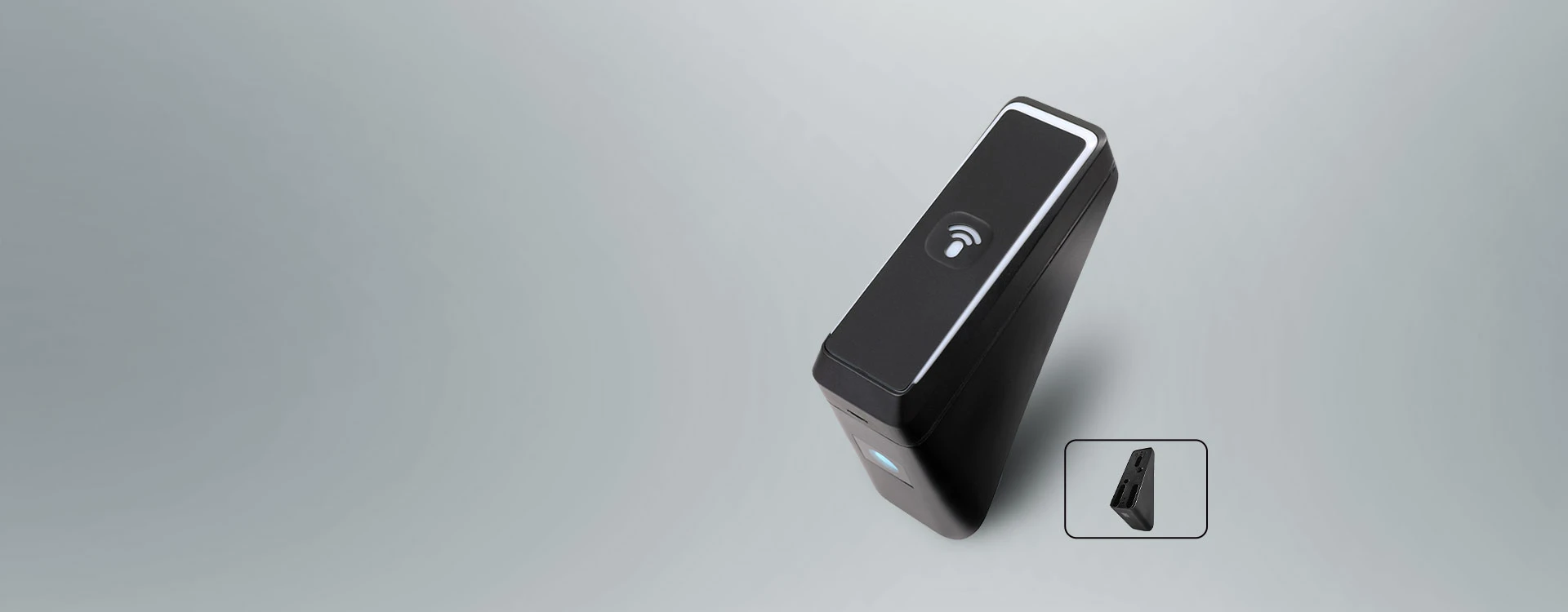

Cidron E is elegant design with only 48.0mm width slimline size, flexible and easy installation for various kinds of narrow occasions

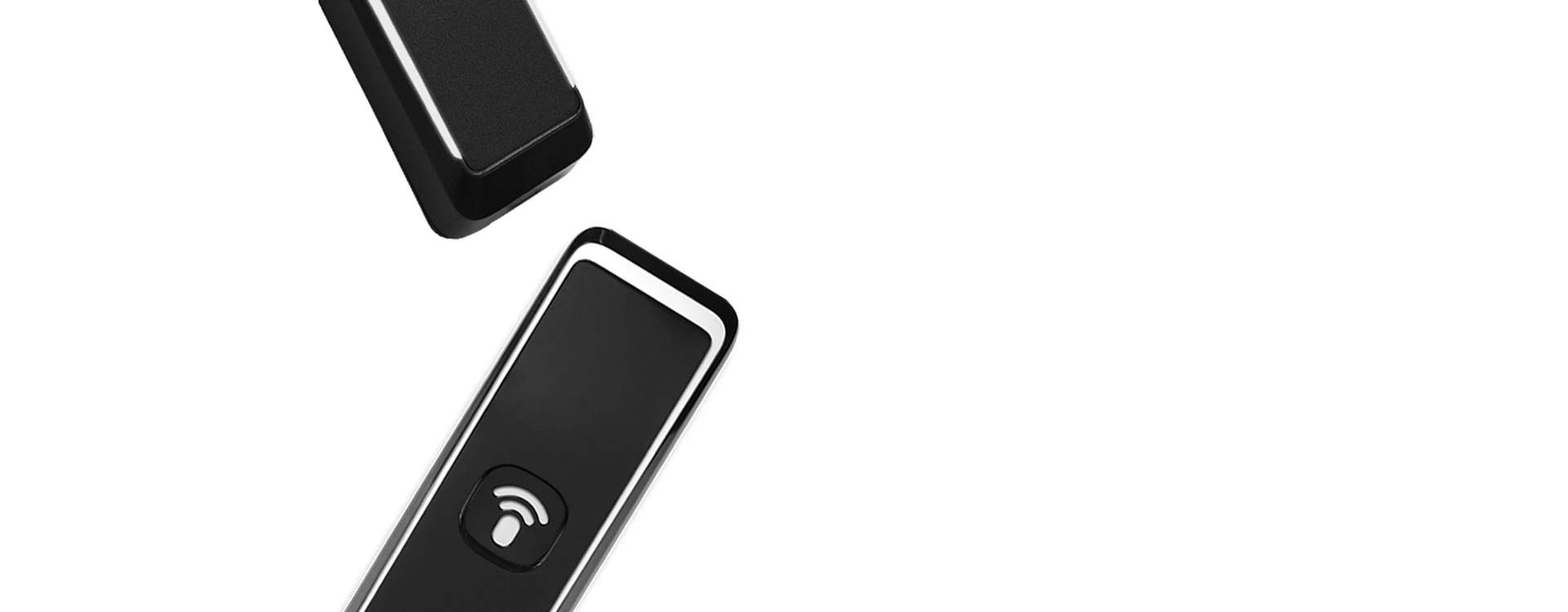

Cidron E is flexible for users to extend QR code scanner by assembling a QR code module for function expansion at anytime.

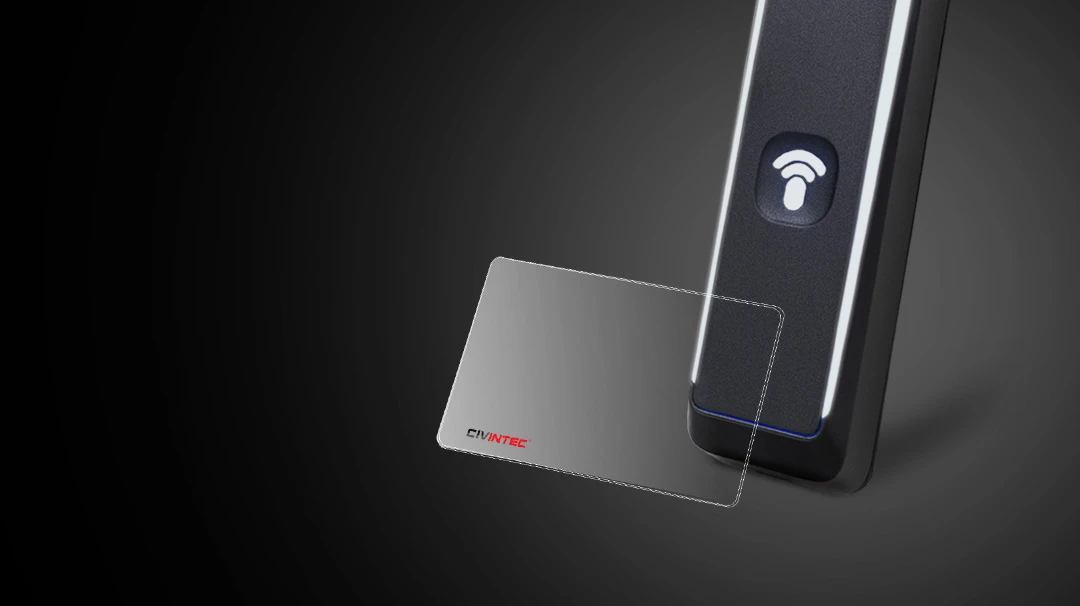

ISO14443A MIFARE® CSN 4 byte, MIFARE® CSN 7 byte, MIFARE® Classic and MIFARE ®DESFire® EV1 /EV2 contactless smart card

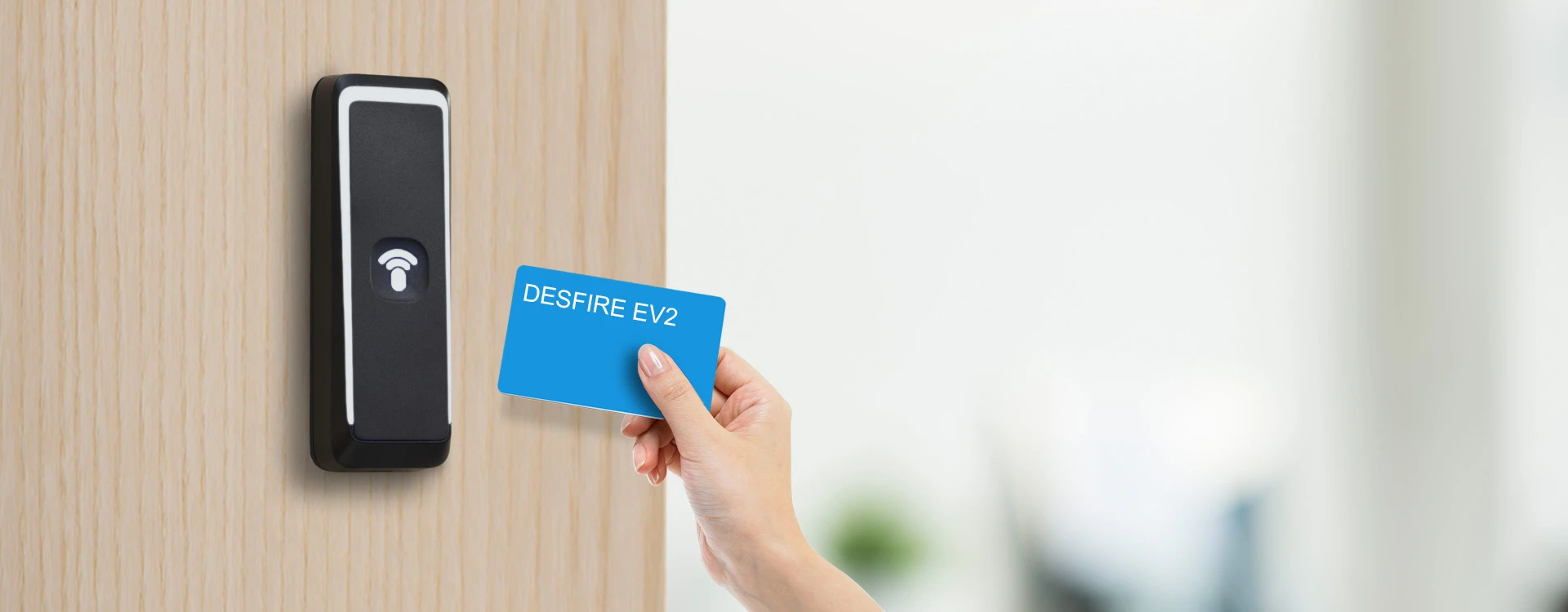

Supports 13.56MHz technologies, both AES encrypted applications and sector reading as well as card serial number reading of Mifare® and DESFire® EV1/EV2 cards and key fobs.
Reader is equipped with symbol backlit, which is configurable as standard. Valid or invalid card, or other operations are indicated by a LED bar and illuminated symbol in the middle of reader with a clear green, red or yellow light.
Cidron E contactless rfid readers support almost all access controllers on the market with standard communication interface Wiegand and RS232/RS485 OSDP.

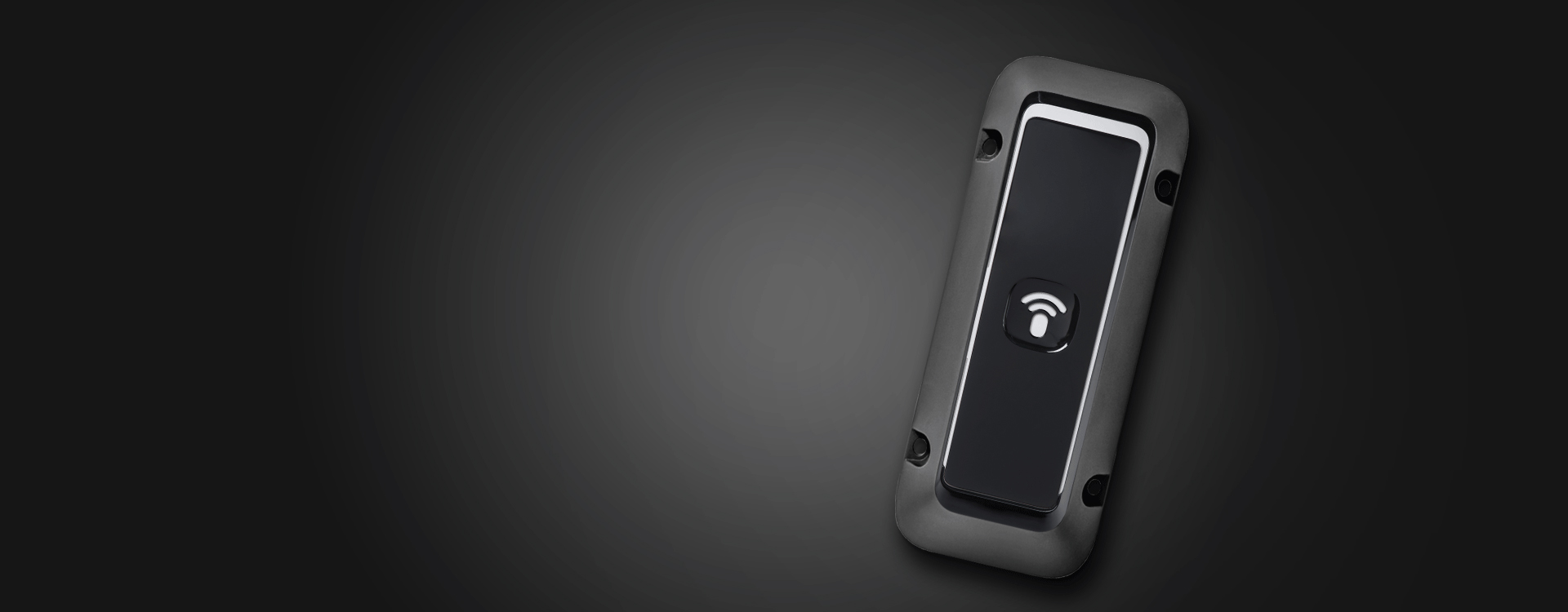

Vandalization protection is an optional accessory that shields the reader and helps it withstand violence by absorbing and redirecting external forces away from the reader. The sloping sides also make it harder to climb on the reader.

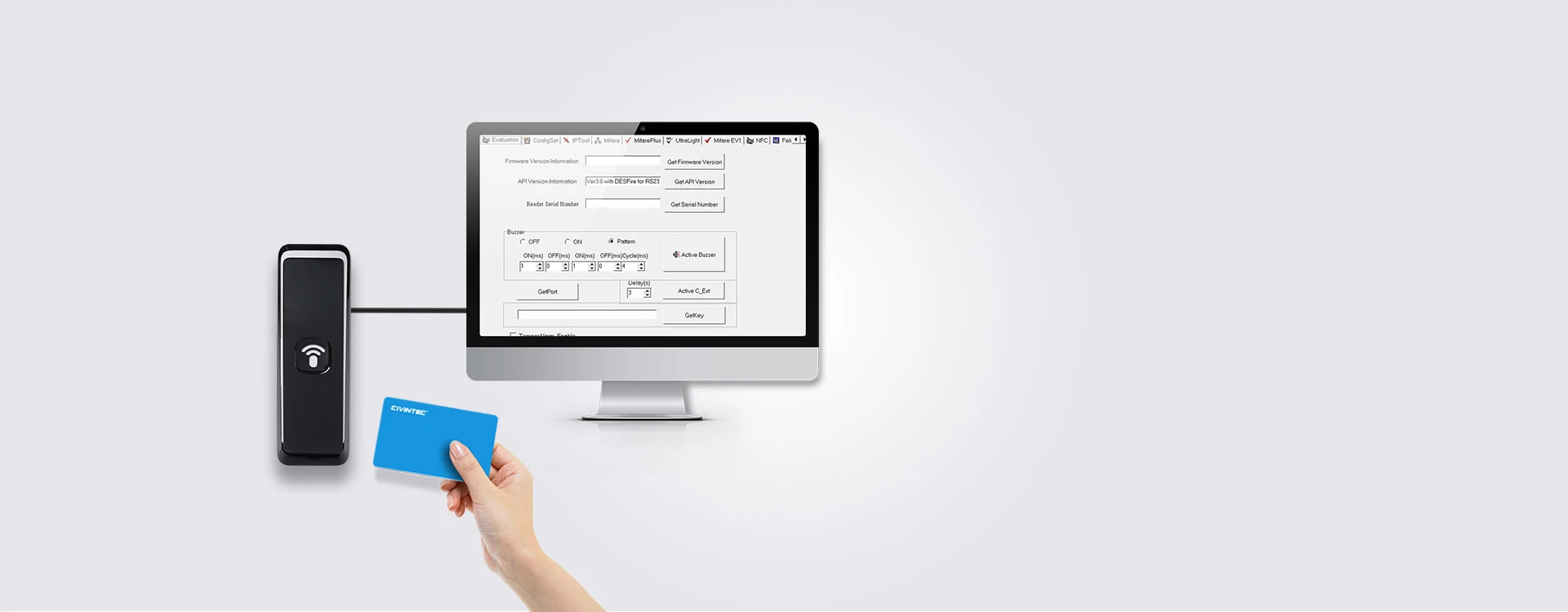

CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.

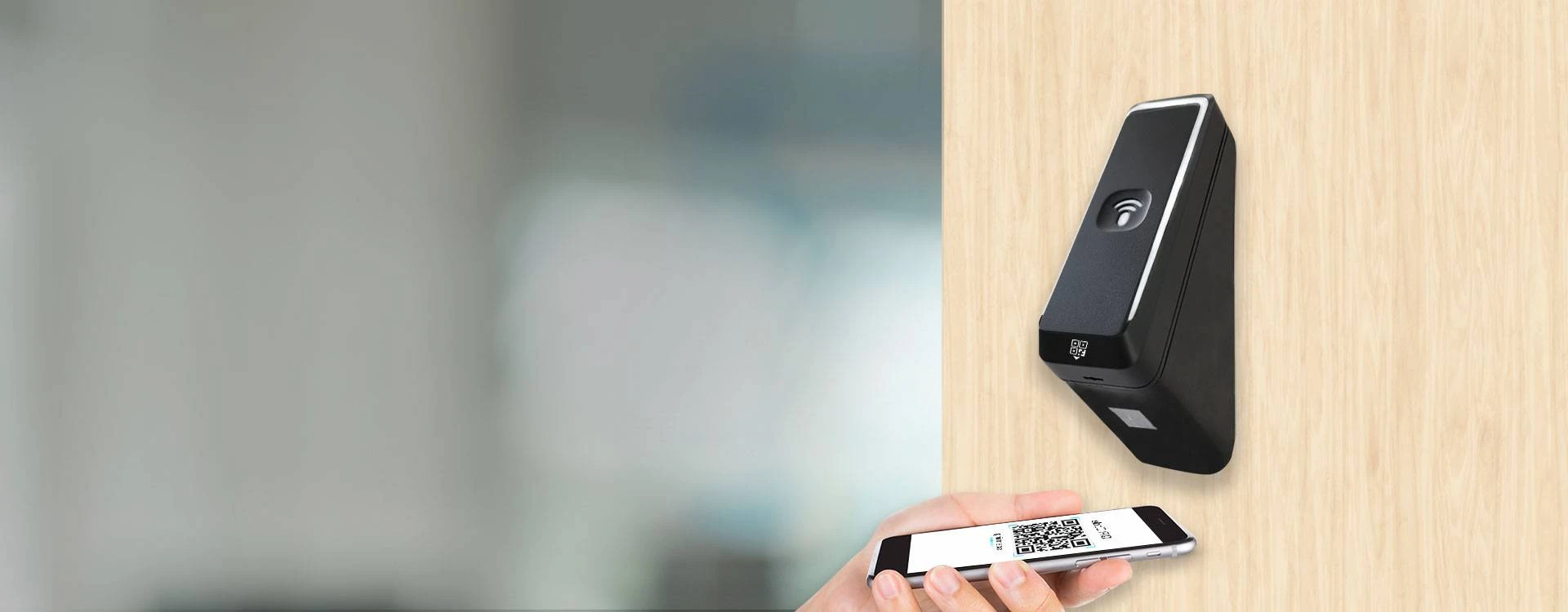

Cidron E customized version with QR Code scanner supports multi-format QR Code 1D & 2D codes, QR & Micro QR codes, Barcode and QR codes for touchless access control solution.
 | |
| Cidron E | |
| Cidron E READER | |
| Operating Frequency | 13,56MHz |
| Contactless ISO Standard | ISO14443A |
| Contactless Cards | MIFARE® CSN 4 byte, MIFARE® CSN 7 byte, MIFARE Classic® and MIFARE® DESFire® EV1/EV2, Also supports other ISO14443 A compatible cards CSN |
| Barcode/QR scanner | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Communication Interface | Cidron E - Wiegand, RS232/RS485 (OSDP1, OSDP2, including secure channel) Cidron E QR (customized version) - Wiegand |
| Indicators | - LED, Green, Red and Yellow (Bi-color) adjustable. Backlight in blue color - Buzzer |
| Power Supply | 9 – 12VDC |
| Operating Temperature | -20° ~ +60°C |
| Operating Humidity | 0 ~ 95% RHNC (Relative Humidity No Condensation) |
| Ingress Protection Classification | IP65 (request weather protection casing) |
| Housing Dimensions | L=141mm, H=25mm, W=48mm |
| Configuration Methods | Configuration card, reader tool software or factory configured readers |
| Compliances | CE & RoHS |
* The specifications are subject to change without notice.
