CN56X0B

Quick look

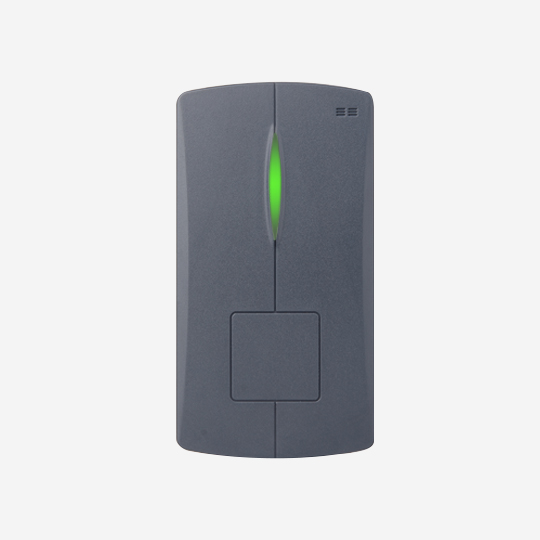

Optimized to make physical access more secure and smart, CN56X0B access reader introduce multi-technique to work with all main 13.56MHz smart cards as DESFire® EV1, Mifare® Plus and Sony Felica to enhance security through high encryption and multi-authentication,and ISO18092 NFC for mobile phone access solution. Adopt advanced high performance CPU, CN56X0B achieve fast running speed and lower consumption to ensure system more stable and affordable. It is with wide operating voltage and unique multi-interface design as RS232/ 485, TCP/IP, Wiegand, C&D&ABA with various output formats to meet high compatibility for most controllers on Housing Type 2 - RS232, Wiegand/Clock & Data/ABA1,2 the market. More than traditional access control reader application, CN56X0B nfc access control reader is also suitable for general purpose such as time attendance, personal Identification, membership and E-payment on security and smart card applications to build flexible and intelligent low cost solution

Advantages

· Multi RFID smart card options access control reader: ISO14443A/B, Mifare®, DESFire® EV1, Mifare® Plus,

125KHz Prox, Felica

· Support ISO/IEC18092 nfc as access card

· Support high speed of ISO14443 up to 424 kbps

· Build-in tamper-resistant switch

· Three-wire fully control LED and buzzer

· Build-in TCP/IP interface and relay

· Support DHCP and Static IP address assignation

· Support TCP/IP online upgrade via web page, to greatly ease firmware upgrade and IP parameter setting

· Factory default setting and system reset function for easy setting

· Keypad Shortcut to enter upgrade mode and factory parameters recover mode.

· Flexible to integrate with Civintec device and other access control system

· Support metal surface installation

· Customization service to meet specific requirements

· Embedded SAM (Secure Access Module) on request

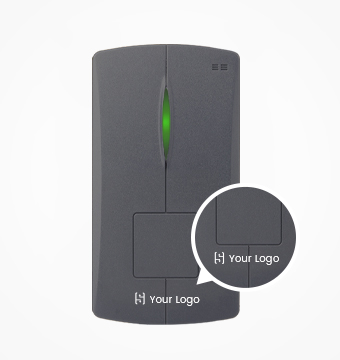

OEM & Customization Service

To make product stand out from the crowd, we offer the opportunity to profile your readers for increased recognition. OEM service to enable logo printing in single or full color. We also offer development customization service from hardware new features to software development.
