Ultra-low power consumption
Support Arm® TrustZone® for high security
Support Desfire EV1/EV2/EV3
A powerful platform for personalization and customization
Bio-direction encrypted HTTP/MQTT communication via WiFi and BLE wireless communication between CM3 terminal and server for online remote door lock, real time location tracking and IoT management.
As an extremely secure encryption system, CM3 implements the encryption of all credentials and personal information avoiding the risk of cloning, and also protects data security through encrypted communication protocols, and together with supporting Arm® TrustZone® for high security application.
Wire & wireless communication interface of WiFi, BLE 5.4, Type C USB port with battery powered feature offers a flexible and cost-save installation solutions well-suited for various network environments, and rich I/O port for external devices control.
Smart CM3 has ability for selection memory to store the data and can reliably gather the data and safely transmit and exchange data wirelessly via WiFi or BLE to a central point for identification.
Smart CM3 supports various credentials, including NFC/BLE mobile ID, popular smart cards RFID for personal identification.

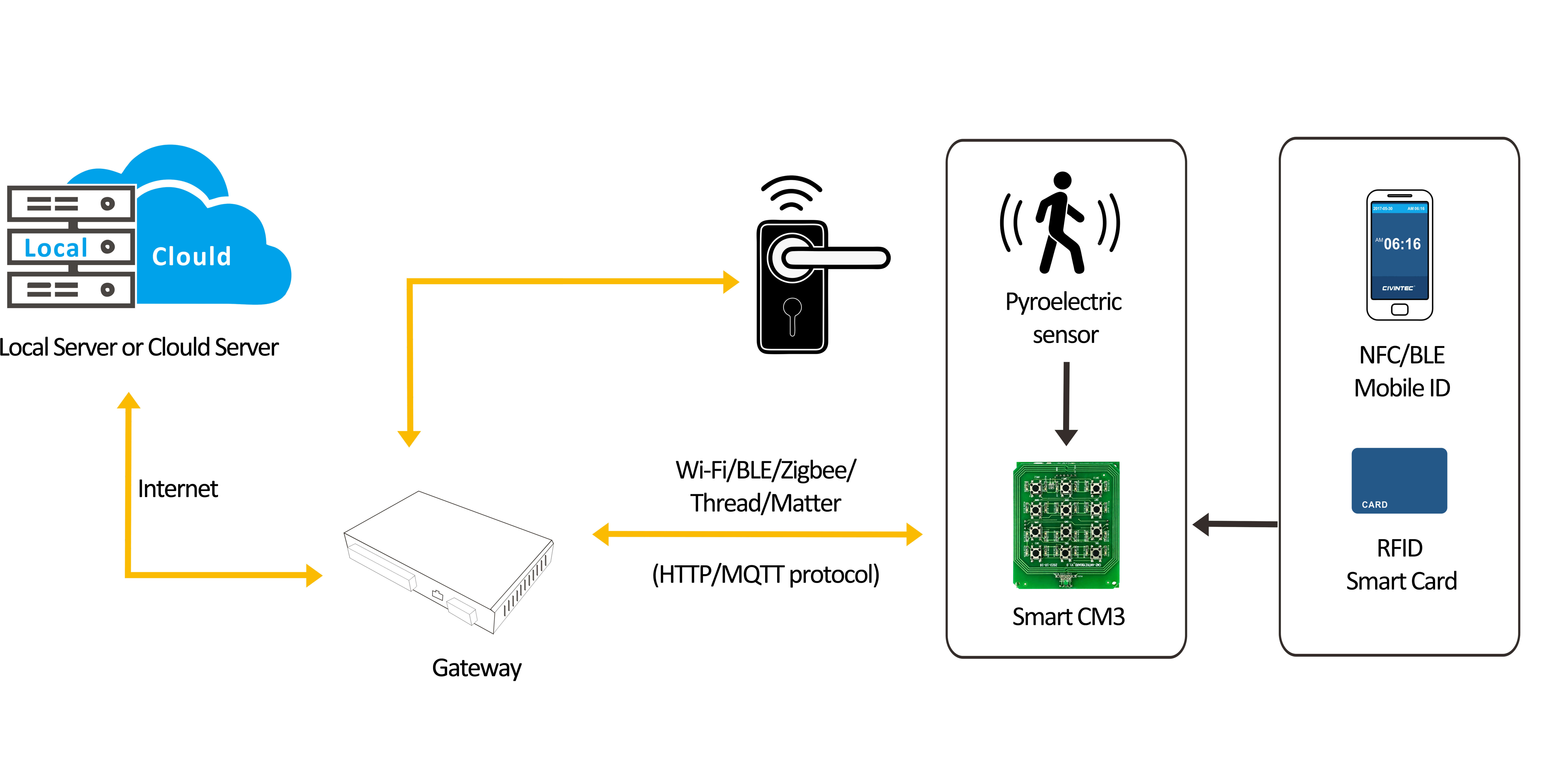

Bio-direction encrypted HTTP/MQTT communication via WiFi and BLE with gateway wireless communication between CM3 terminal reader and server for keyless access control, time attendance, visitor management, member management and loT management, etc.
Smart CM3 reader provides economic local wireless battery powered RFlD NFC reader using WiFi, BLE, for localization solution and provide additional customization design and manufacture service. When user present RFlD/NFC card or mobile phone on CM3 reader, CM3 will read the data encoded in the card and transmit it with reader location to cloud service over WiFi, BLE. Server identify the card data and reader location to do various application management.
Battery driven Smart CM3 is wireless reader ideal for portable applications to read & write RFID smart card and mobile lD tokens, and get wireless communication to server. Smart CM3 is widely used in asset tracking, as library book management, archives management, jewelry management, drug tracking management,etc. It also includes WiFi and BLE function, rechargeable and removable battery design to enable the device to have a mobile inventory function.

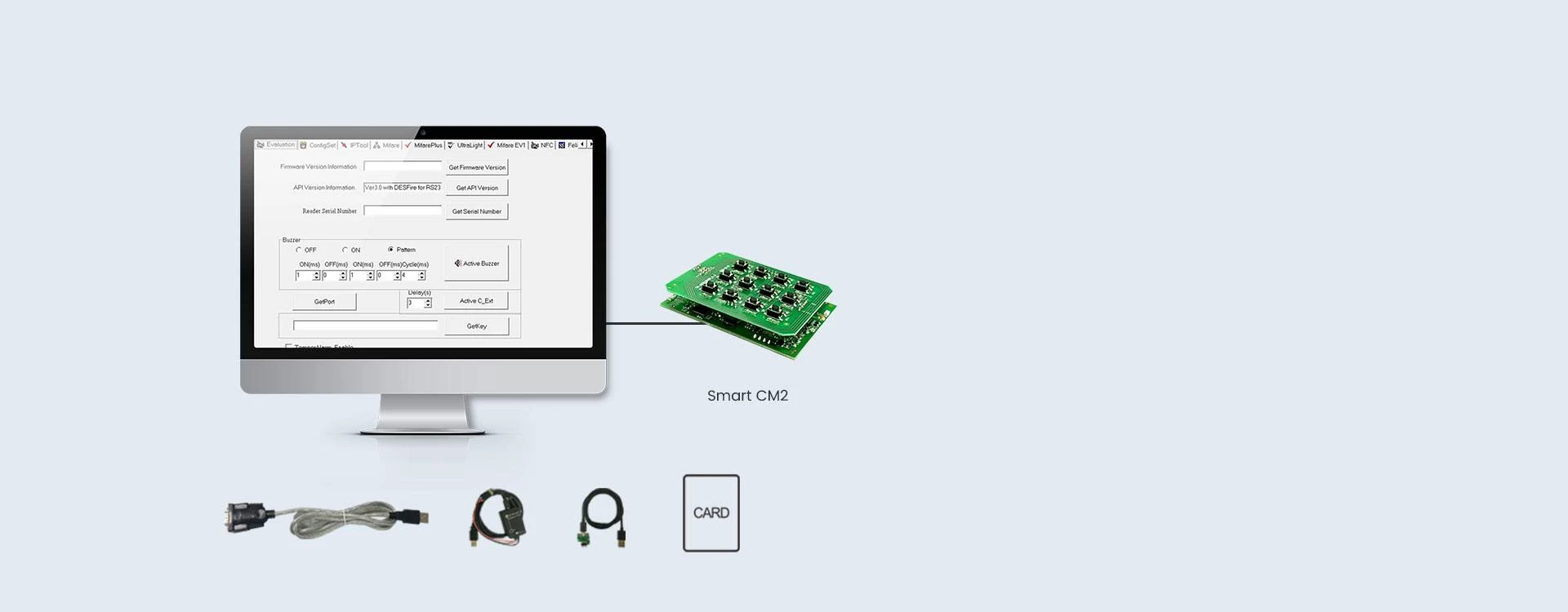

With configcard software & configuration cards, users can easily configure all readers programable parameters such as indication behaviours, custom unique encryption keys and communication interface settings.
Smart CM3 supports intercommunication with server to identify and send RFID smart card and NFC mobile credential through BLE gateway or WiFi (2.4G) under low power consumption.
| |
| CM3 | |
Smart CM3 Terminal Platform | |
IDENTIFICATION TECHNOLOGIES | |
RFID ISO Standard &Cards | 13.56MHz ISO14443A, ISO15693 and NFC standard |
| · Mifare Classic CSN &Sector | |
| · DESfire EV1/EV2/EV3(2k/4k/8k)CSN &Sector | |
| .Ultralight/Ultralight C CSN &Sector | |
| · Mifare plus S,X CSN &Sector | |
| · NFC tag | |
Mobile Credential | NFC mobile phone |
| BLE 2.4GHz | |
| INTERFACES | |
Communication Interfaces | WiFi IEEE 802.11b/g/n |
| BLE 5.4(Slave mode, Thread, Zigbee, Matter) | |
USB (Type C) | |
Secure Interface | Embed the necessary security features for secure boot |
Sensor | Body detection sensor |
Fire alarm | On request |
| GENERAL | |
Memory | 4KB (on request) |
Power Supply | 4* AA batteries |
Indicators | Bio-color LEDs with red, green and amber colour and buzzer |
Dimensions | 59x50mm (The dimension is customizable on customer's request) |
Operating Temperature | -20℃~60℃ |
| Configuration Methods | Configuration card, reader tool software or factory configured readers. |
| * The specifications are subject to change without notice. | |
