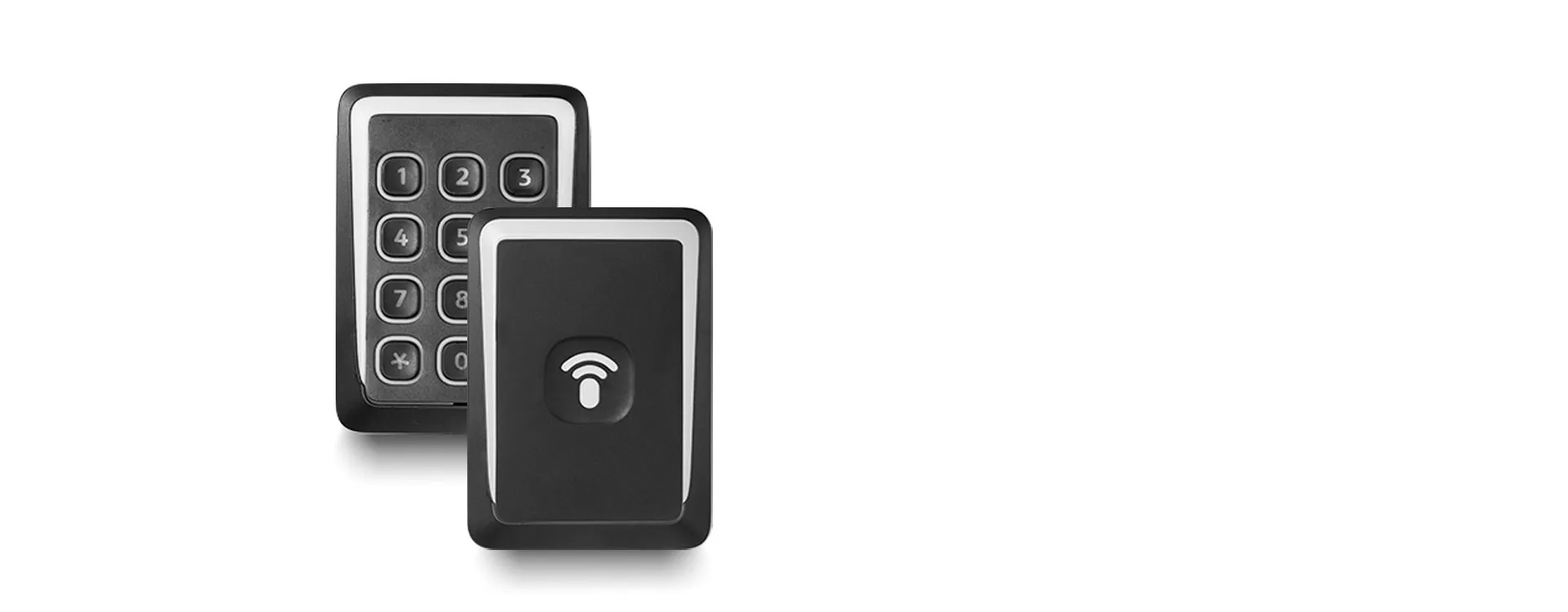

Cidron reader Slimline cidron reader Standard cidron reader
CRYSTAL TOUCH

Cidron

RFID & BLE Mobile ID Access Control Reader

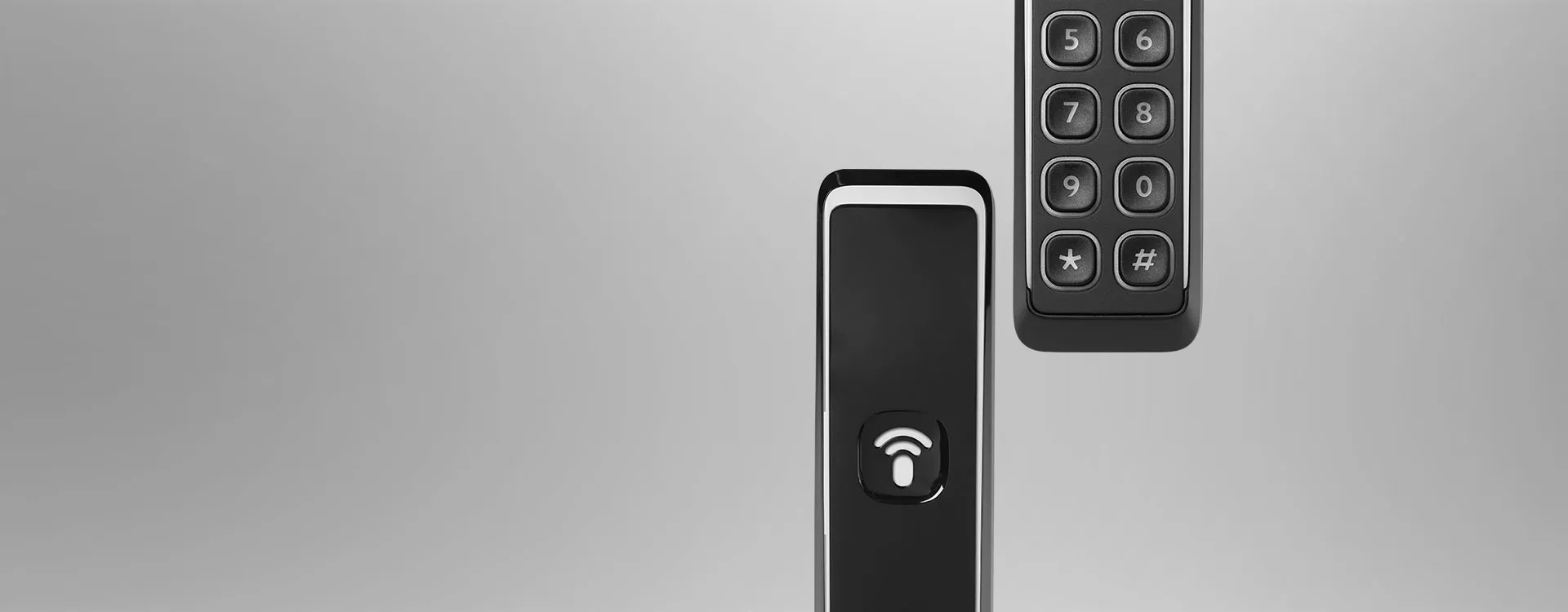

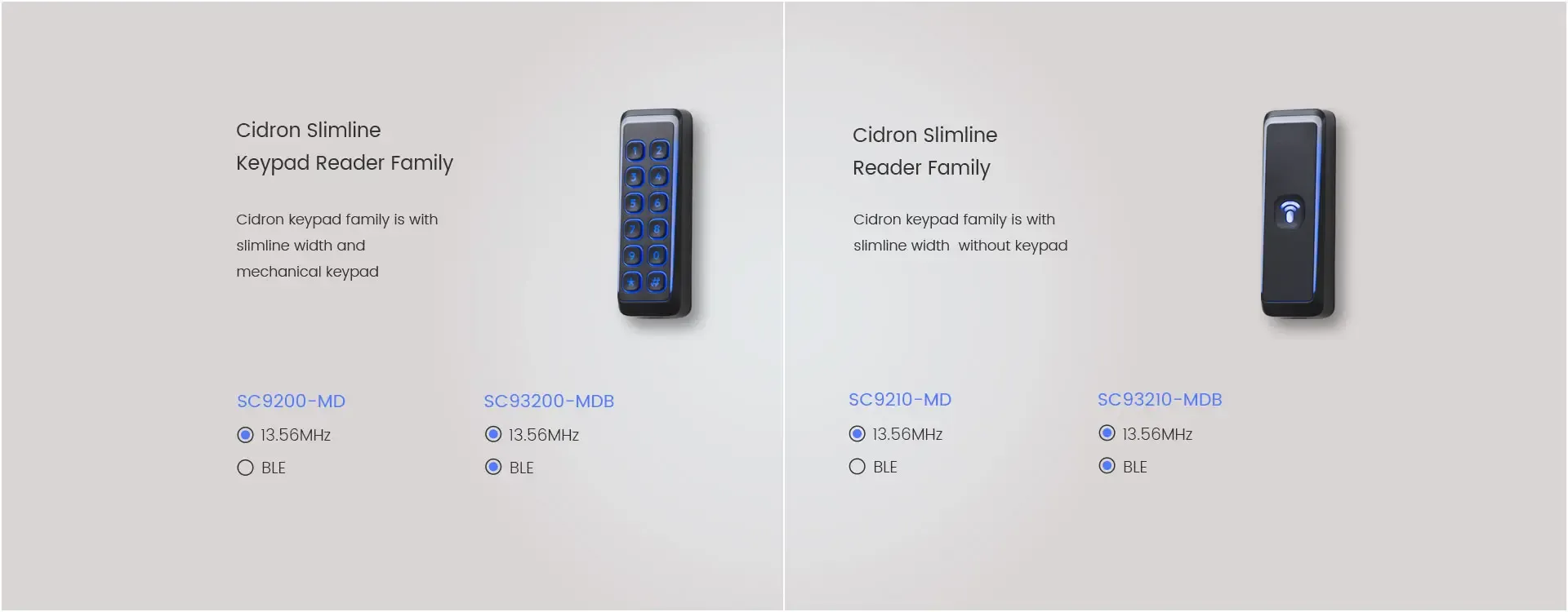

Slimline Body Reader With Elegant Timeless Design

Cidron Slimline reader is elegant design with slimline size, flexible and easy installation for various kinds of narrow occasions

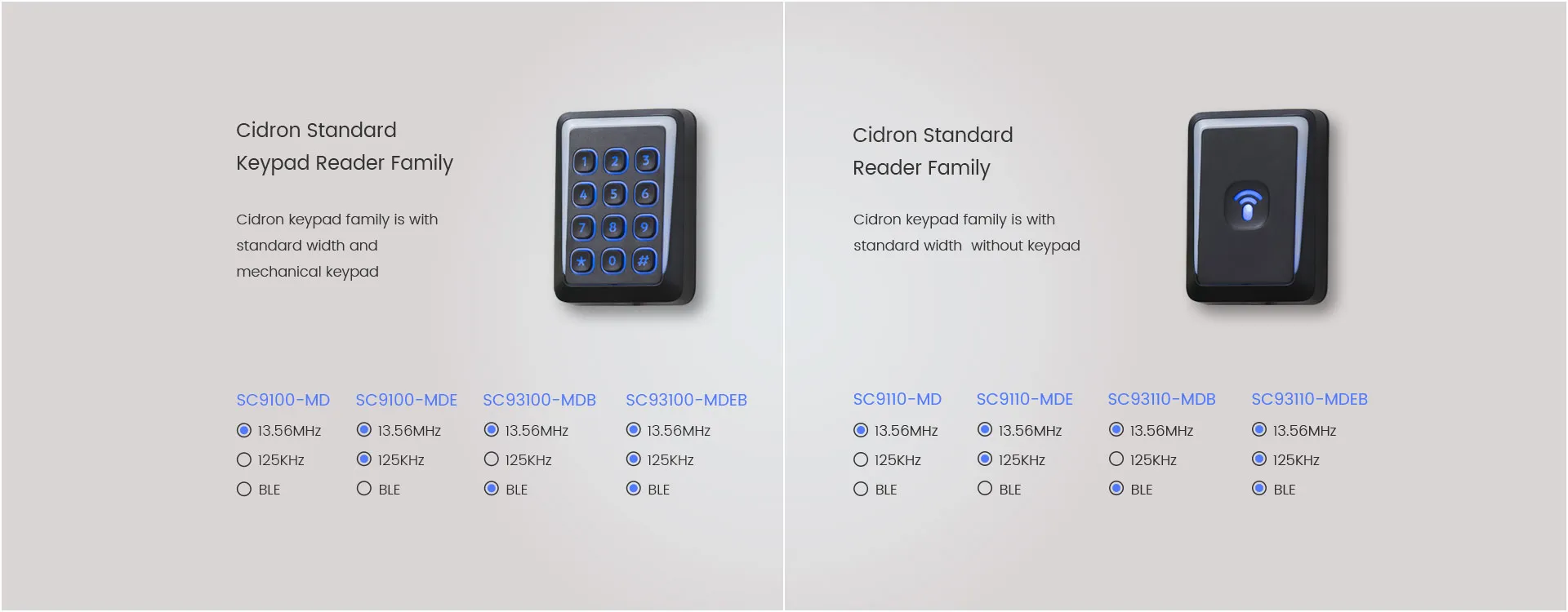

Standard Size Reader With Elegant Timeless Design

Cidron Standard Reader is elegant design in standard size with or without keypad for various occasion installation.

Innovation Technology

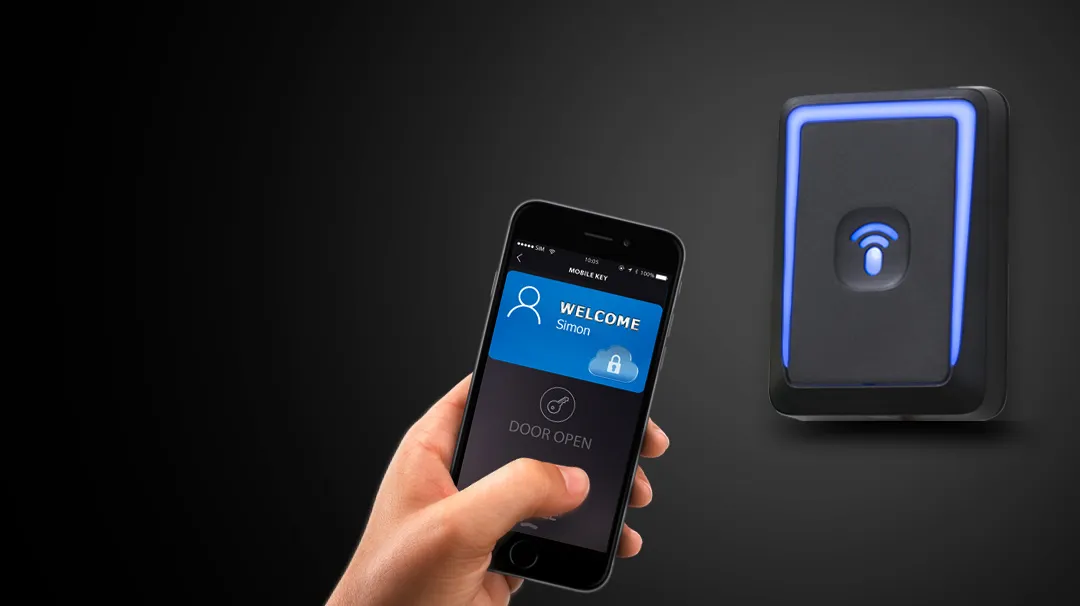

Your Phone Is The Room Key

Your Phone Is The Room Key

Smart phone as access credential via ISO18092 NFC or BLE with AES encryption for door lock control

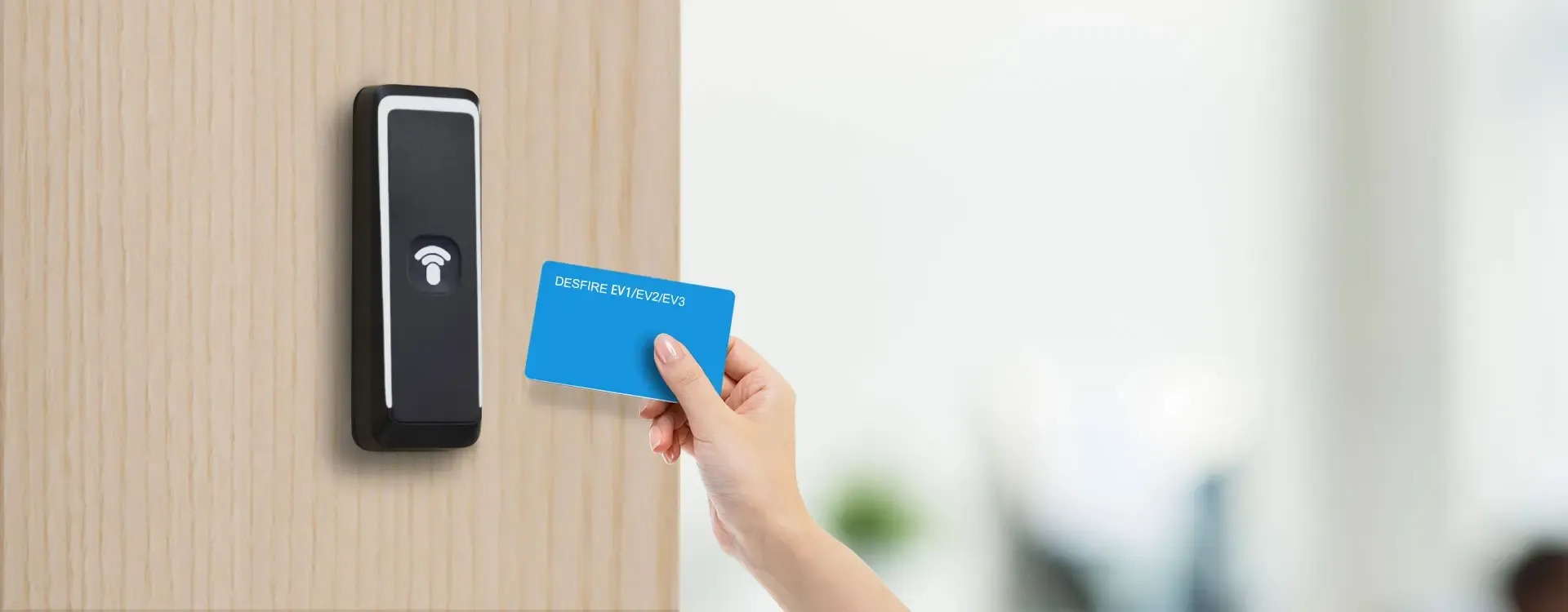

RFID & NFC Tags 125khz+13.56mhz Encrypted Cards

RFID & NFC Tags 125khz+13.56mhz Encrypted Cards

ISO14443A/B Mifare®, Mifare® PLUS, DESFire® EV1/EV2 with ISO7816 SAM (Secure Access Module) for data encryption

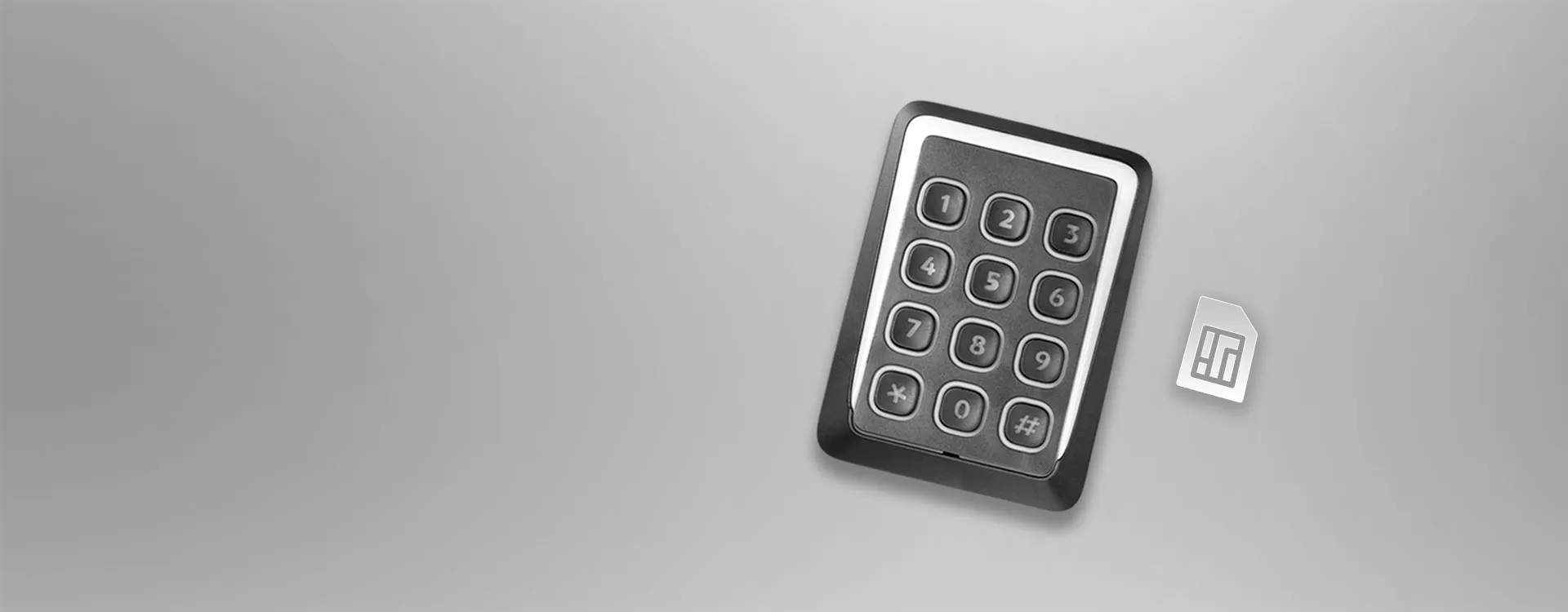

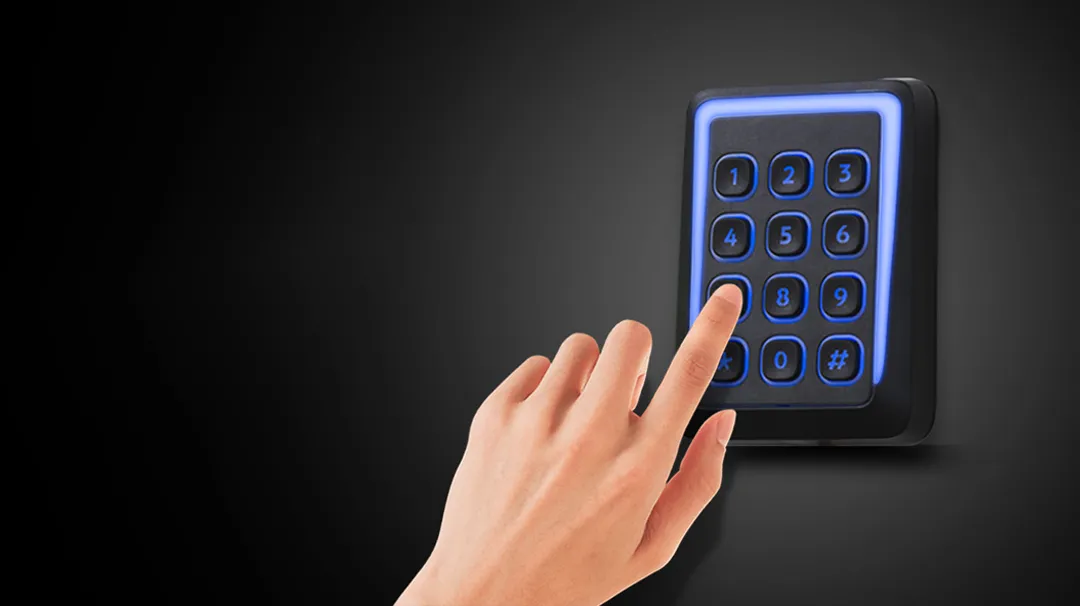

Mechanical Keypad card reader

Mechanical Keypad card reader

12 digit keypad in 4 rows of 3 keys in each row with blue LED backlit controlled to ON/OFF and auto, intensely adjustable

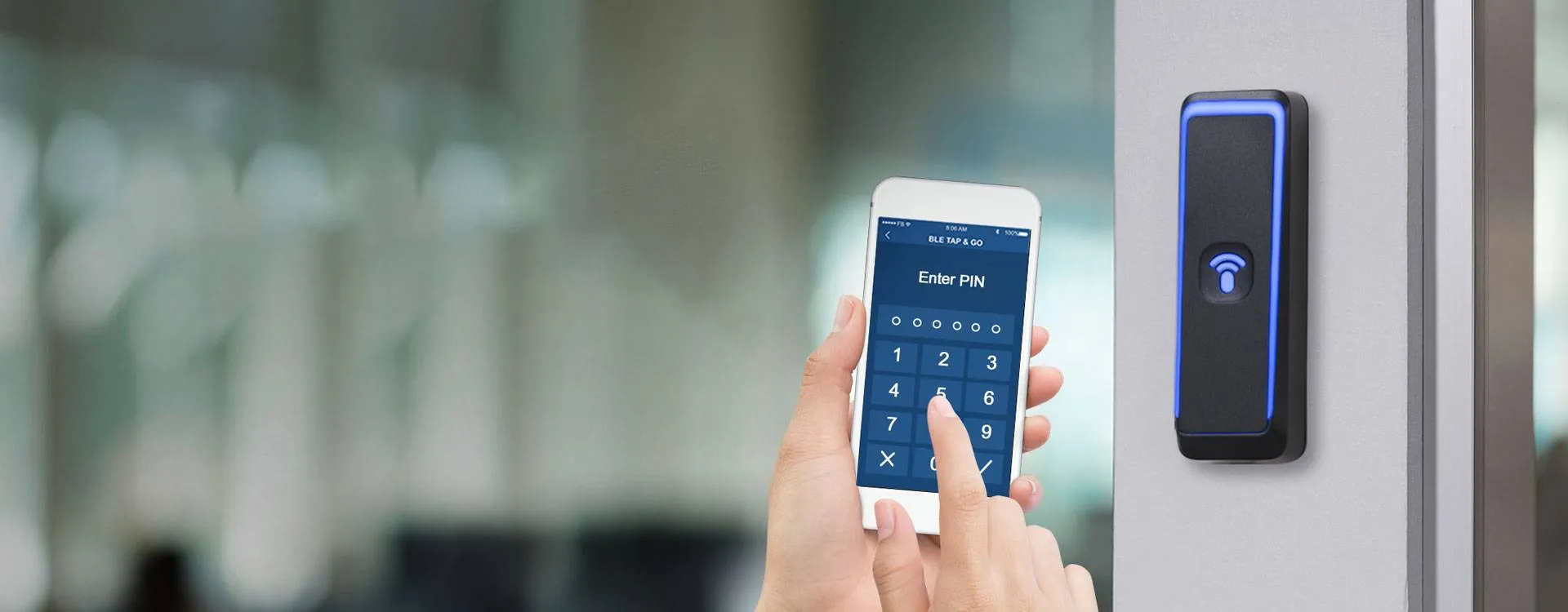

Your Phone Is The Room Key

Touch free access control by using personal smart phone via lSO18092 NFC and BLE, with configurable BLE reading range for hand free door access control

Dual Frequency Multi-smart Cards

Cidron Reader support 13,56MHz technologies, MIFARE Classic® , MIFARE Plus and DESFire EV1/EV2 combined with 125KHz technologies, which makes it ideal to use where several card populations with different RFlD-technologies and/or frequencies should be used at the same time.

Secure Access Module

Cidron Reader features a contact card socket to read. Secure Access Module's (SAM's) embedded on a SlM-card sized contact chip. Cidron is compatible with MIFARE ® SAM AV2 which gives the possibility to further increase the security of storing encryption keys (Evaluation Assurance Level, EAL 5+) and also allows for diversification of encryption keys.

Multiple Communication Interfaces

Wiegand, Clock/Data, OSDP 1, OSDP 2 (including Secure channel) and RS485, offer universal compatibility to work with the third party access controller.

Indicator

The substantial LED frame provides visual indications with green, red or yellow. The LED frame, backlight and buzzer can all be configured to indicate different operations and events using sound or light to communicate with the user. The indications can also be activated by external controls by using general purpose input/ output's (GPl/O's)

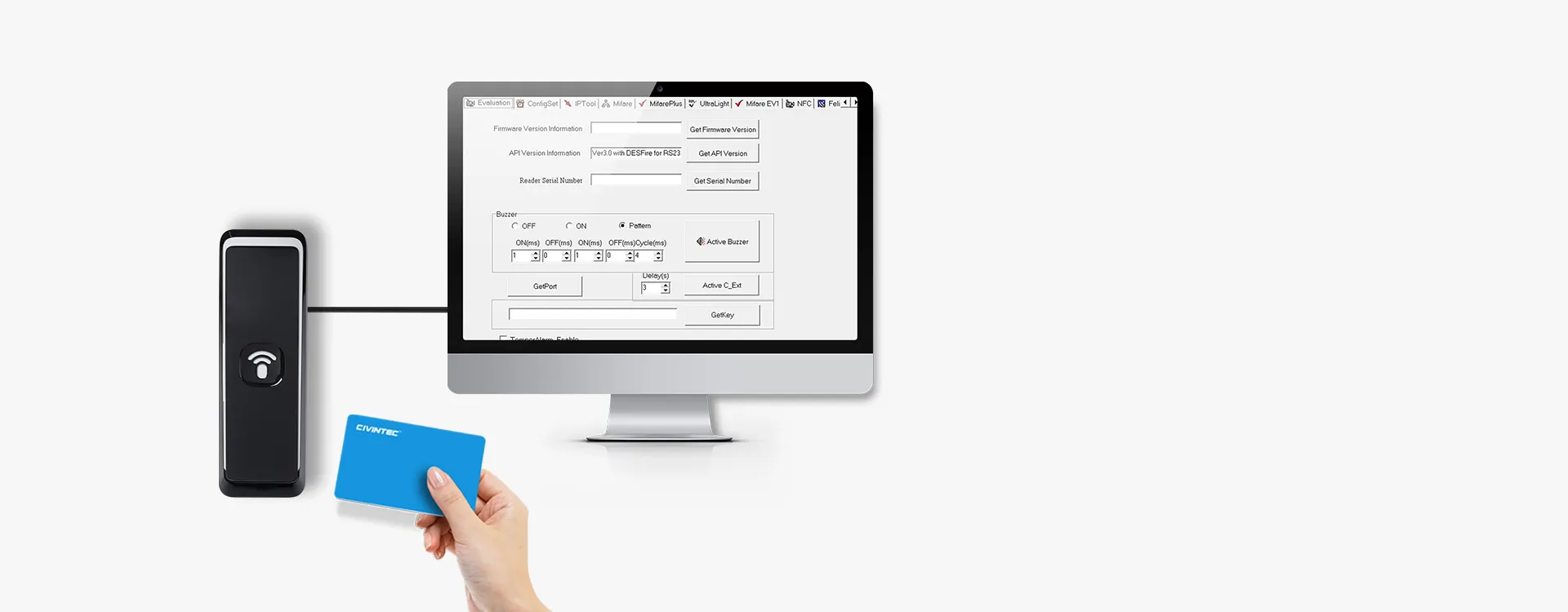

Plug & Play Testing Tool And Software Tool

CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.

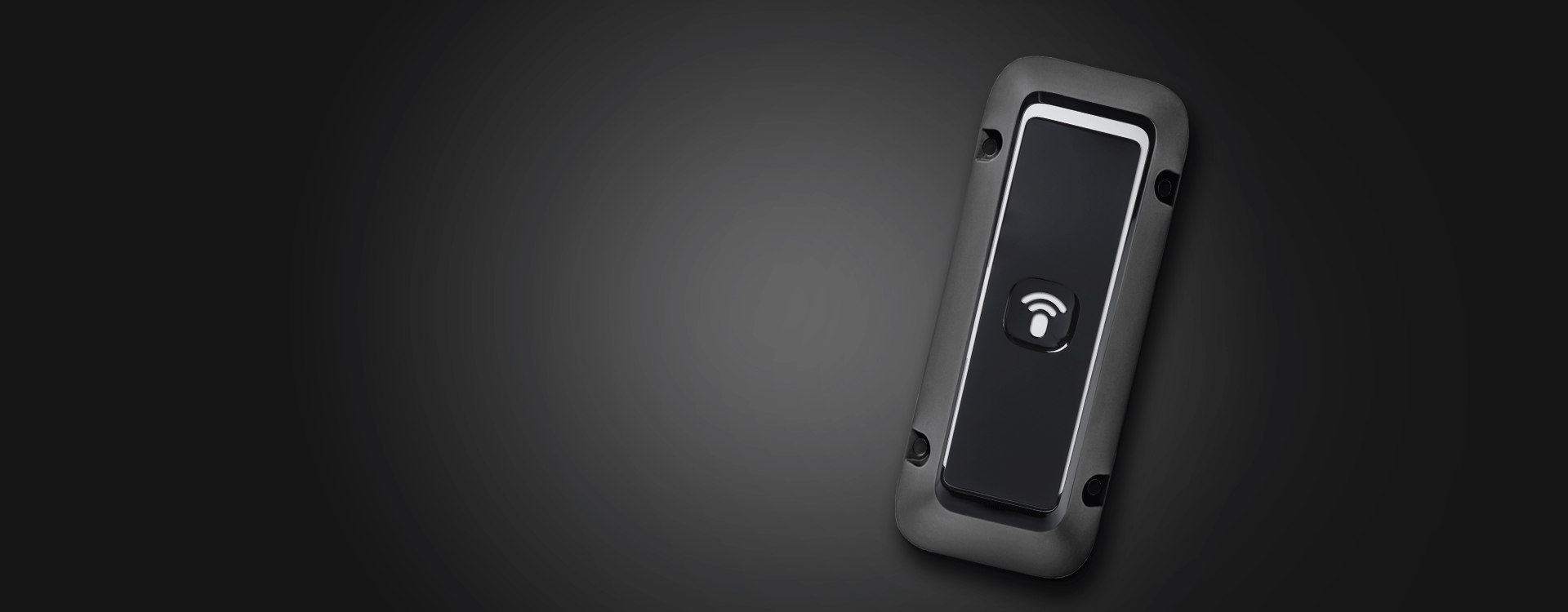

Vandalization Protection

Vandalization protection is an optional accessory that shields the reader and helps it withstand violence by absorbing and redirecting external forces away from the reader. The sloping sides also make it harder to climb on the reader.

Applications

Specification



Cidron
CIDRON SERIES READER
Operating Frequency125kHz & 13,56MHz
Contactless ISO StandardISO14443A/B, ISO18092 NFC
Contactless Cards

- EM Prox, EM4100, EM4200

- MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1

- ISO18092 NFC (T2T, T4T) tags

Mobile IDISO18092 NFC, BLE
Secure Access ModuleMIFARE SAM AV2, external SAM card connection slot
Communication InterfaceWiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE
Keypad12 digit keypad in 4 rows of 3 keys in each row with Blue LED backlit controlled to ON/OFFand auto, intensely adjustable
Indicators

- LED bar with red, green and Amber intensely adjustable

- Buzzer

Power Supply9 – 30VDC
Input/Output4 input for LED and buzzer and 2 configurable GPIO’s

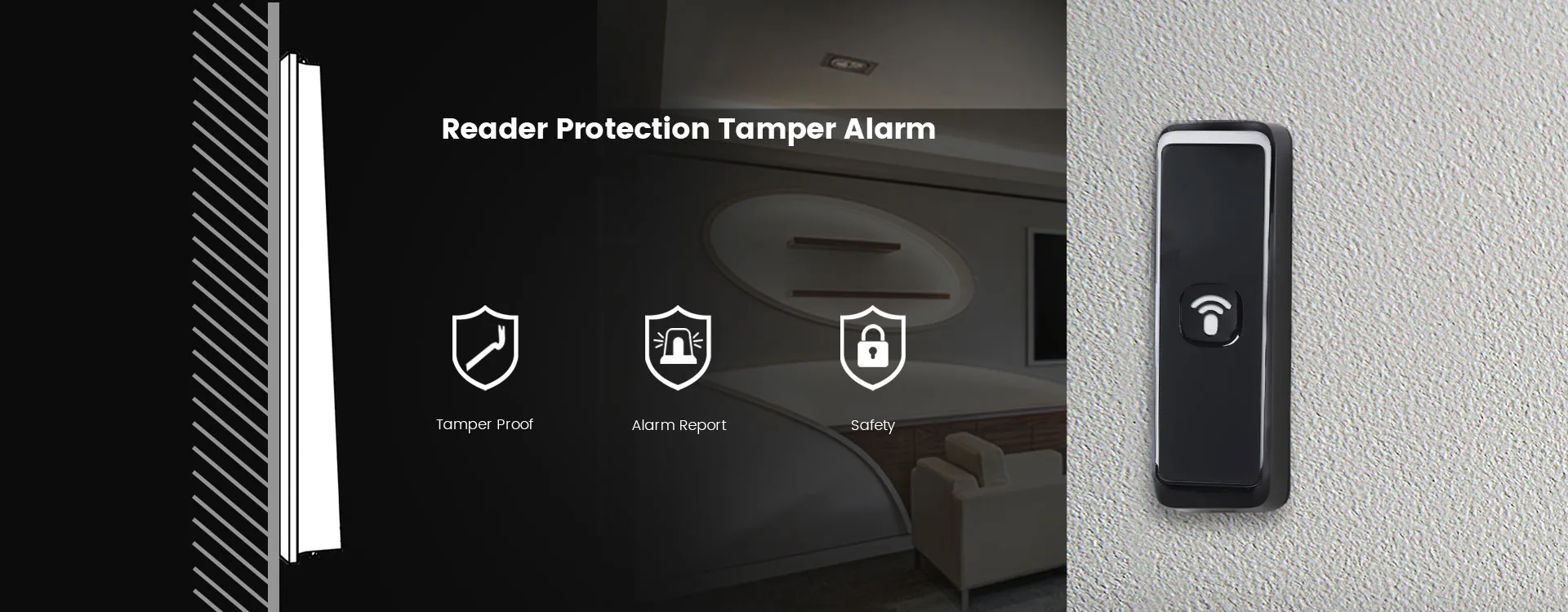

Tamper AlarmBuilt-in mechanical tamper switch which allows for indication both break off protection and opening of the reader

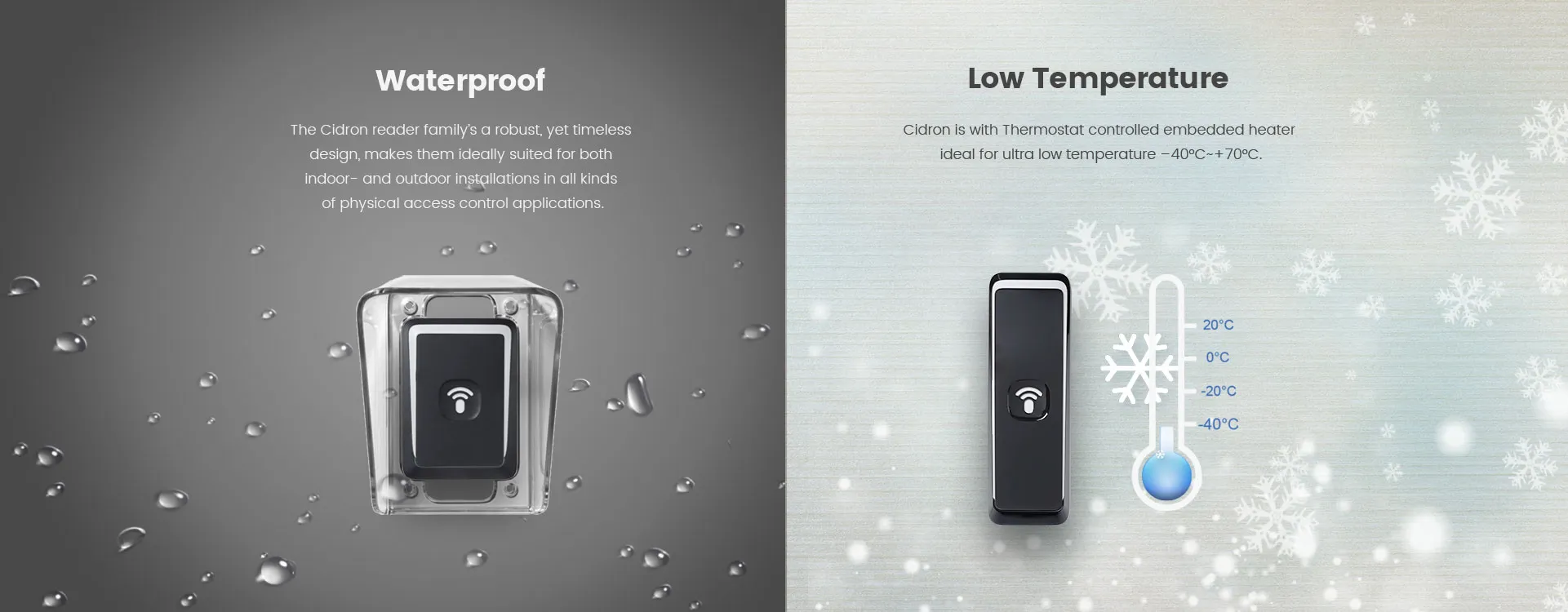

Operating Temperature-40° ~ +70°C. With thermostat controlled embedded heater
Operating Humidity0 ~ 95% RHNC (Relative Humidity No Condensation)
Ingress Protection ClassificationIP65 (request weather protection casing)
Housing Dimensions

L=109mm, H=25mm, W=79mm (Standard)

L=141mm, H=25mm, W=48mm (Slimline)

Configuration MethodsConfiguration card, reader tool software or factory configured readers


* The specifications are subject to change without notice.
