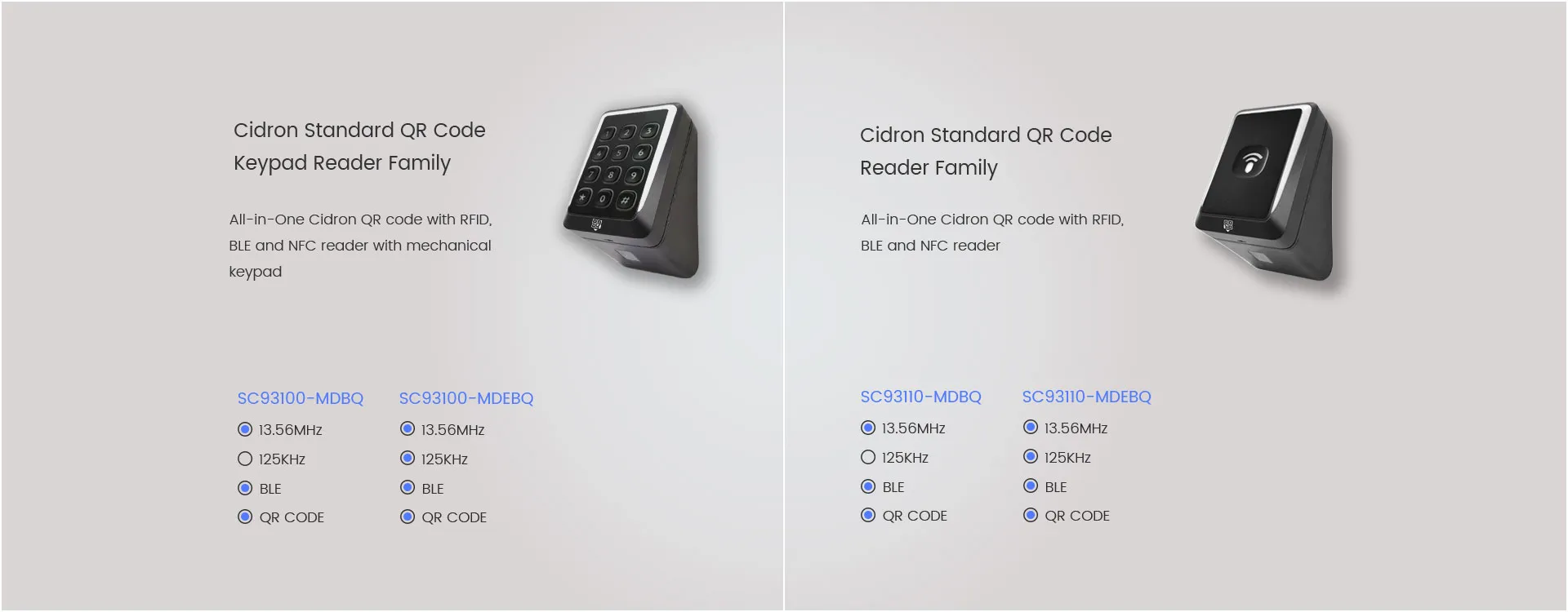

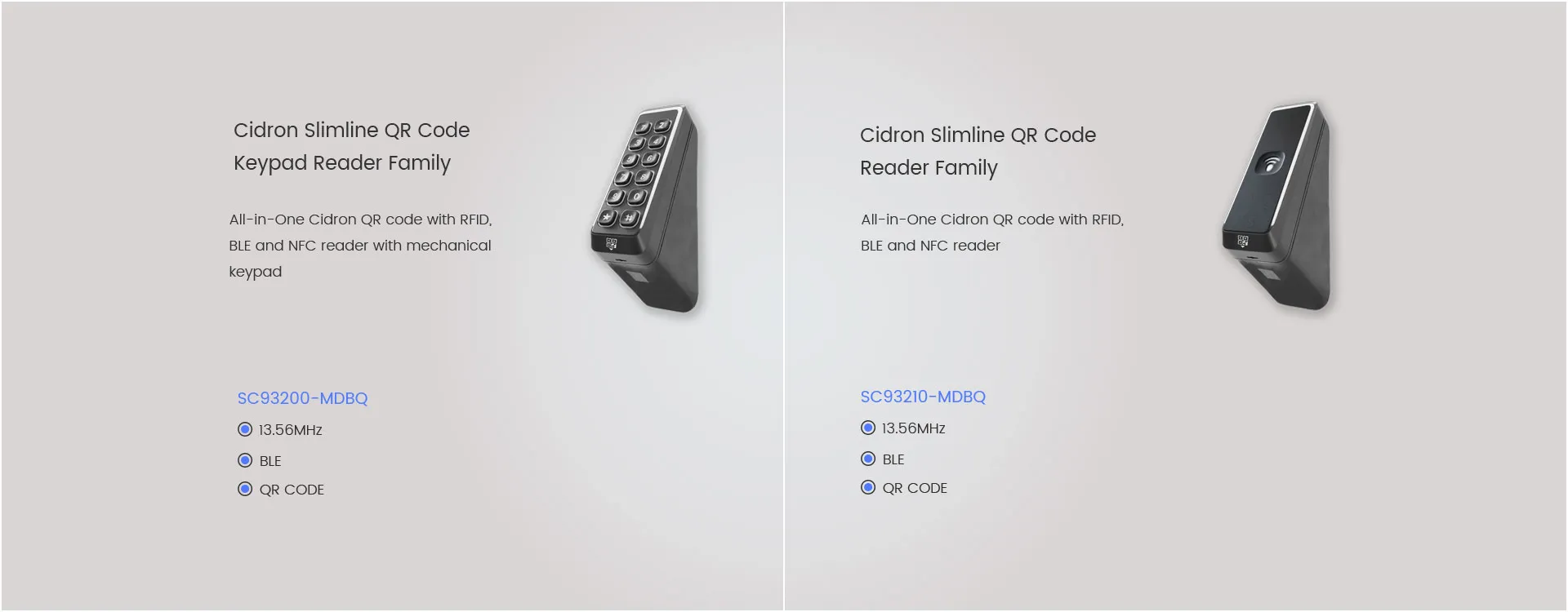

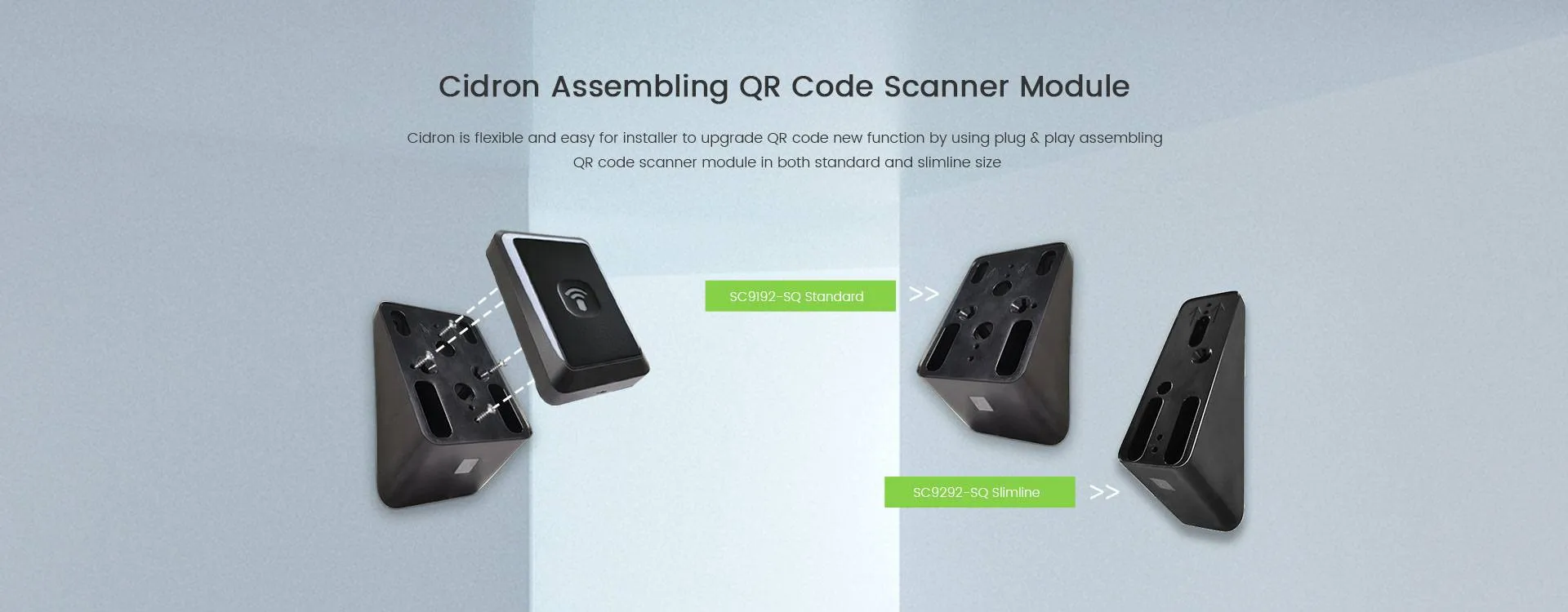

cidron-QR-reader Slimline cidron-QR-reader Standard cidron-QR-reader

Cidron QR

Multi-technologies Wiegand QR Code Access Control Reader

Access Control Readers-banner

Access Control Readers-banner

Access Control Readers-banner

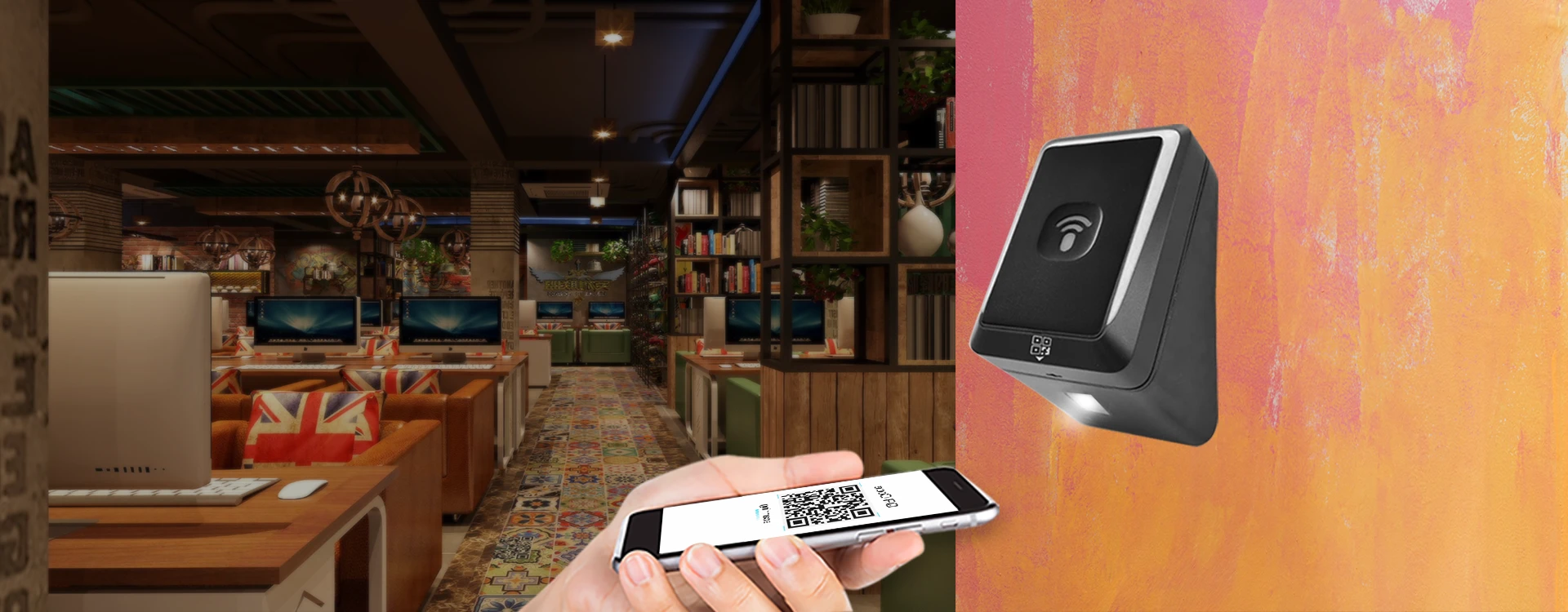

Touch Free Access Control By Using QR Code Via Over-the-air Credential

Touch Free Access Control By Using QR Code Via Over-the-air Credential

Innovation Technology

CT9 PRO_ Mobile Key access control_CIVINTEC

Your Phone Is The Room Key

Touch free access control compliant with encrypted BLE and NFC credential technology to use mobile phone or smart watch as mobile virtual card

CT9 PRO_ QR code access control_CIVINTEC

QR Code

Support multi format QR codes 1D & 2D codes QR & Micro QR codes, Barcode and QR codes used in paper or mobile phone. Touchless access control solution for visitor management

CT9 PRO_ Dynamic QR Code access control_CIVINTEC

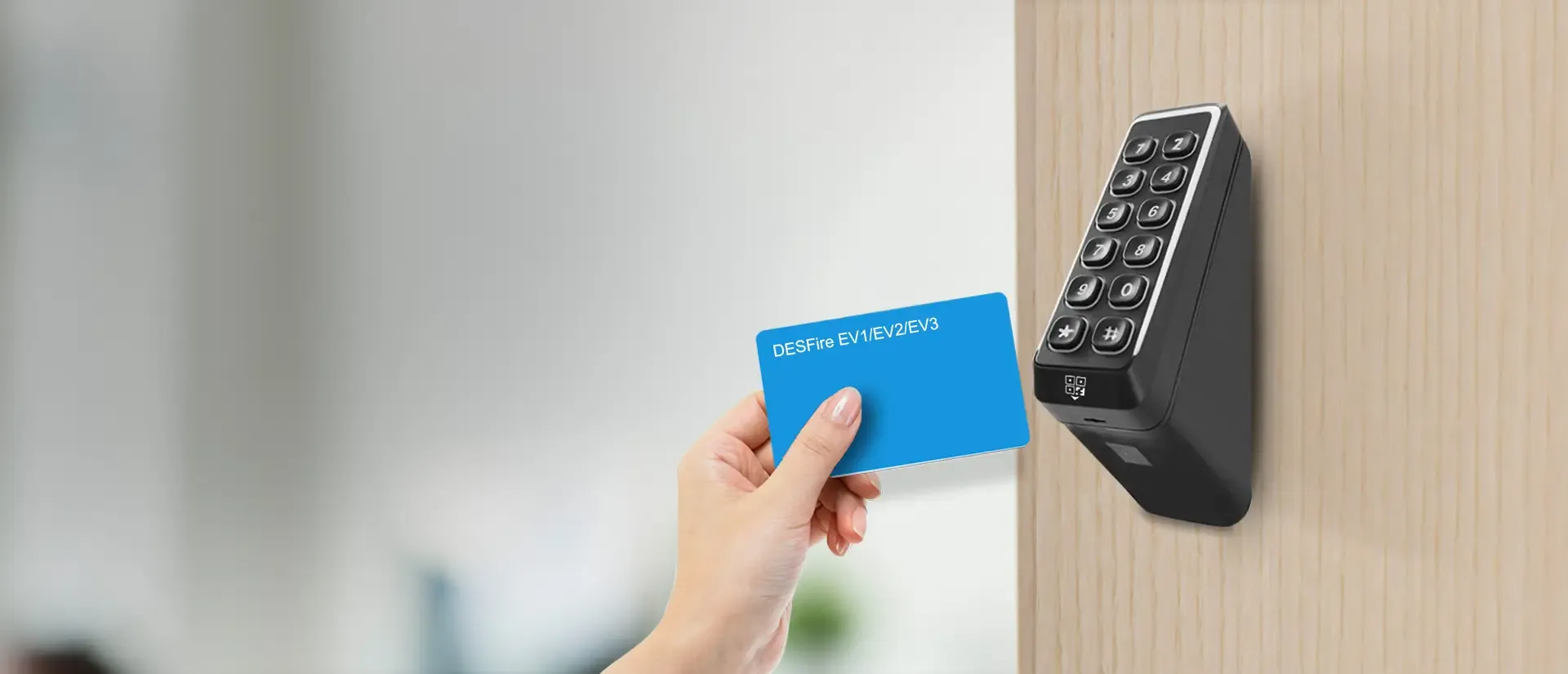

RFID & NFC Tags 125KHz+13.56MHz Encrypted Cards

ISO14443A/B Mifare®, Mifare® PLUS, DESFire® EV1/EV2/EV3 with ISO7816 SAM (Secure Access Module) for data encryption

CT9 PRO_ 13.56MHz and 125KHz RFID Smart Card Reader_CIVINTEC

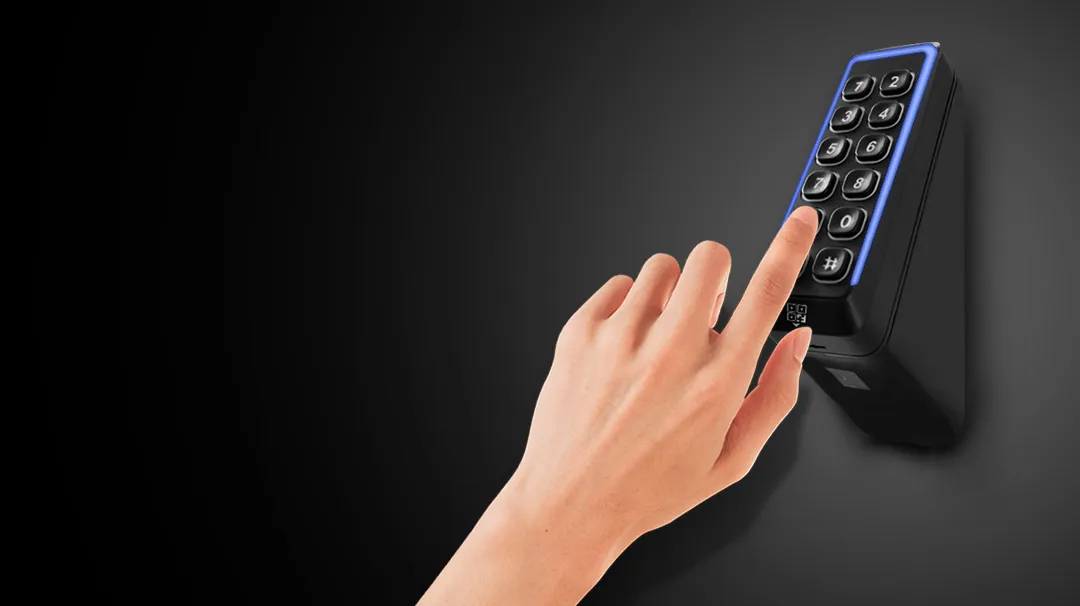

Mechanical Keypad

Support Mifare SAM AV2/AV3 and SAM(Secure Access Module) for data encryption

CT9 PRO_ Cloud Server Real-time Online Remote Access Control_CIVINTEC

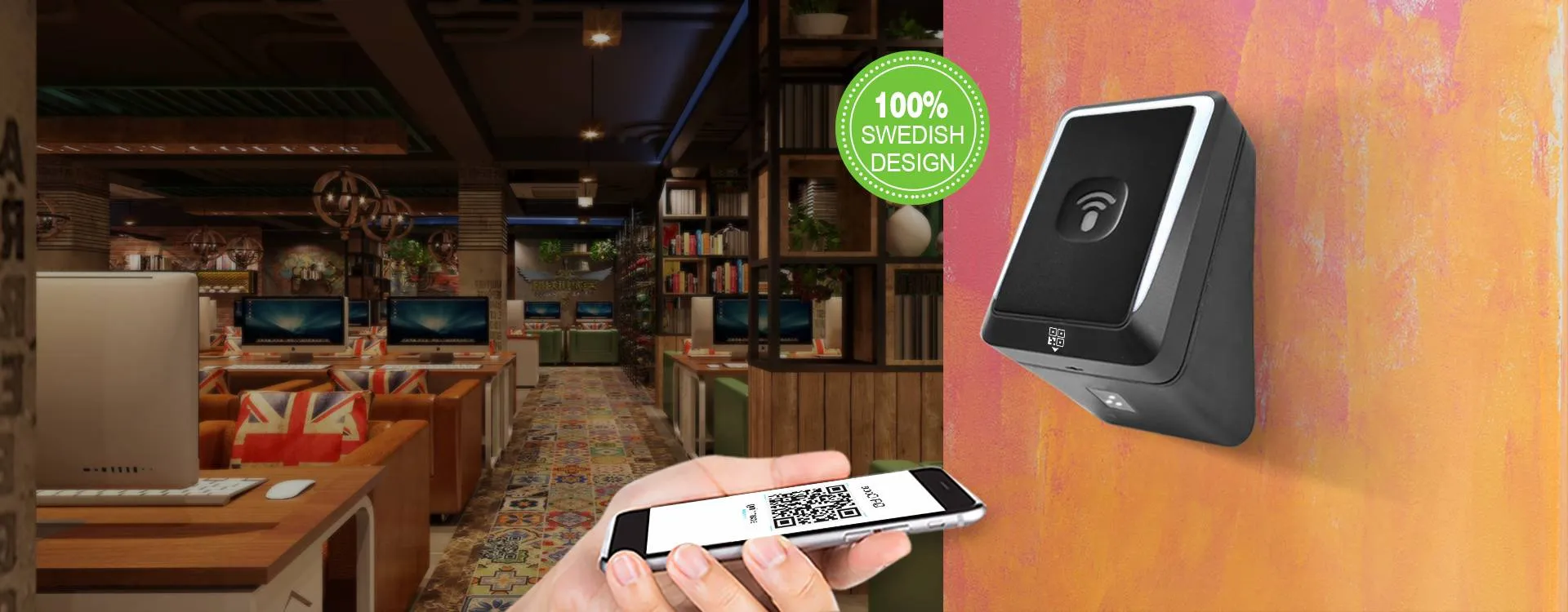

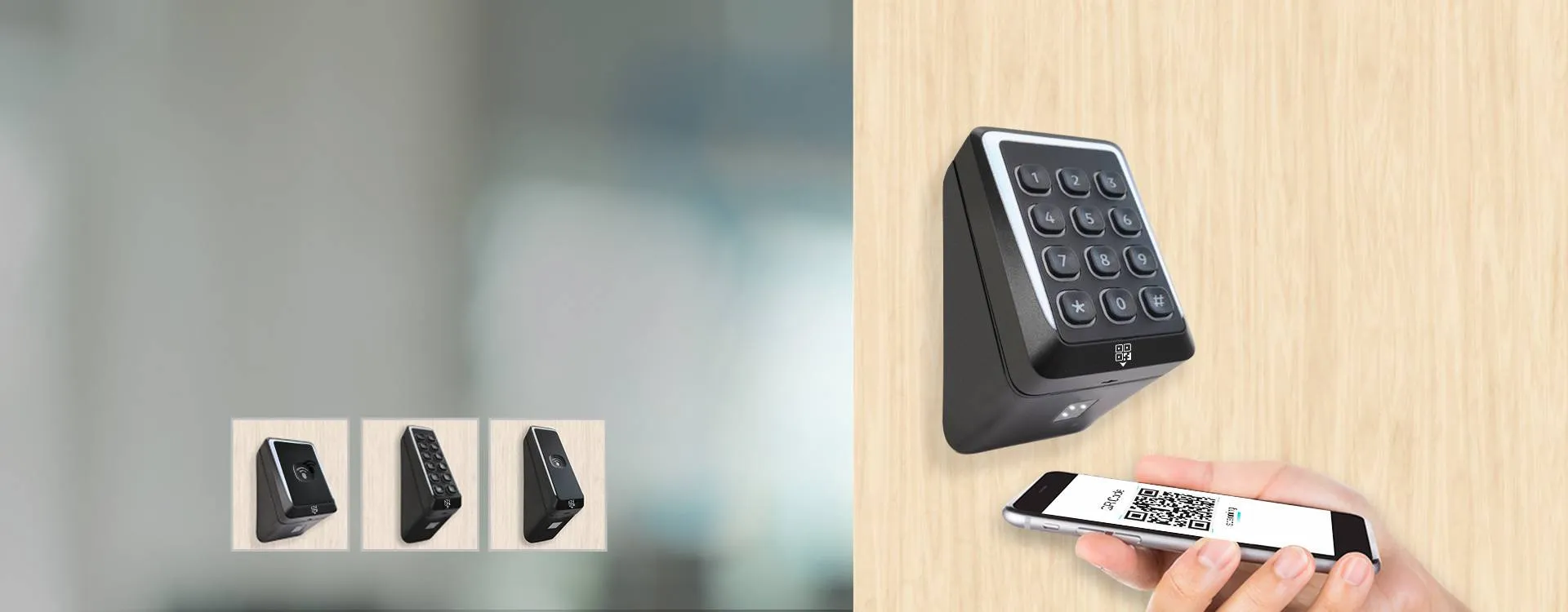

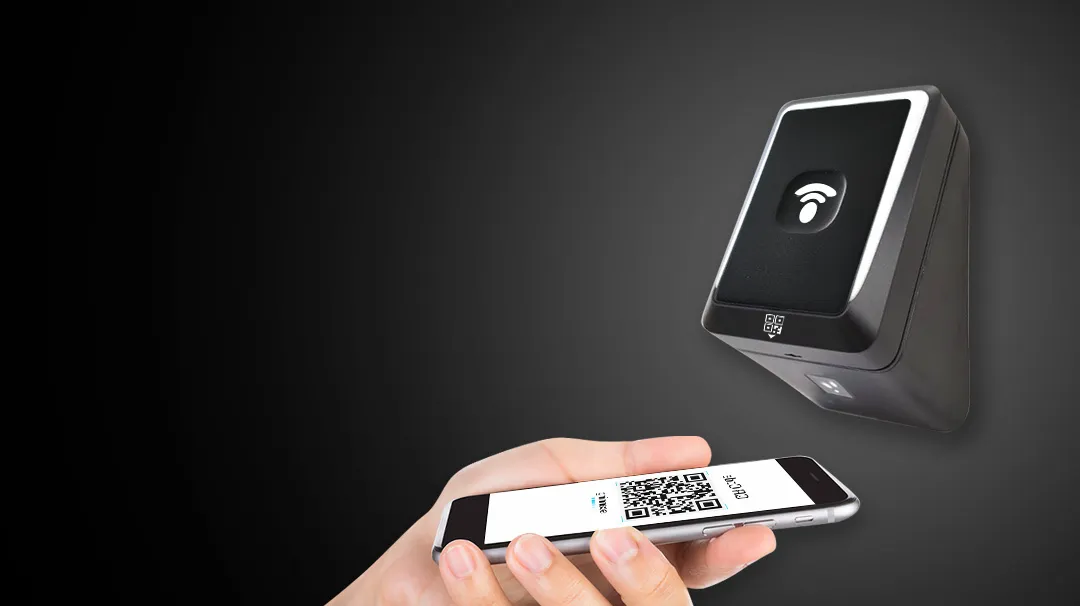

Touchless Access Control QR Code Scanner Reader

Support multi format QR codes 1D & 2D codes, QR & Micro QR codes, Barcode and QR codes used in paper or mobile phone.Touchless access control solution for visitor management.

CT9 PRO_ Cloud Server Real-time Online Remote Access Control_CIVINTEC

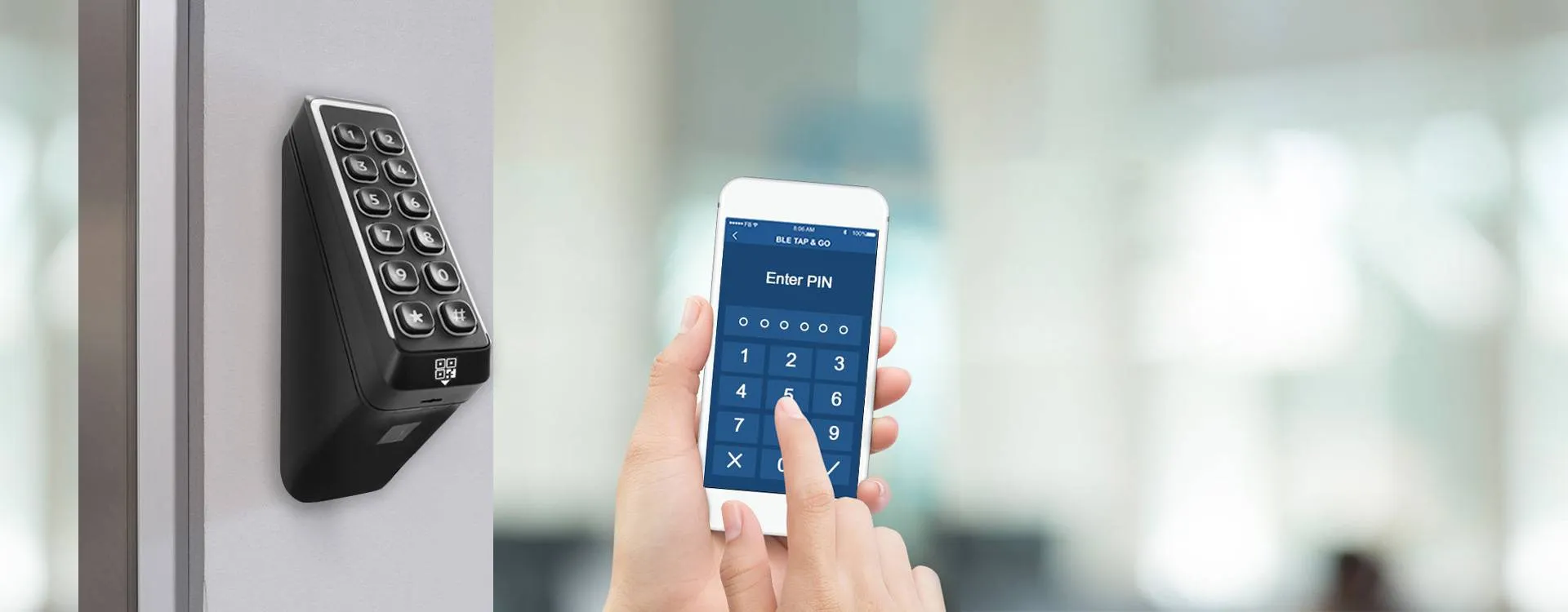

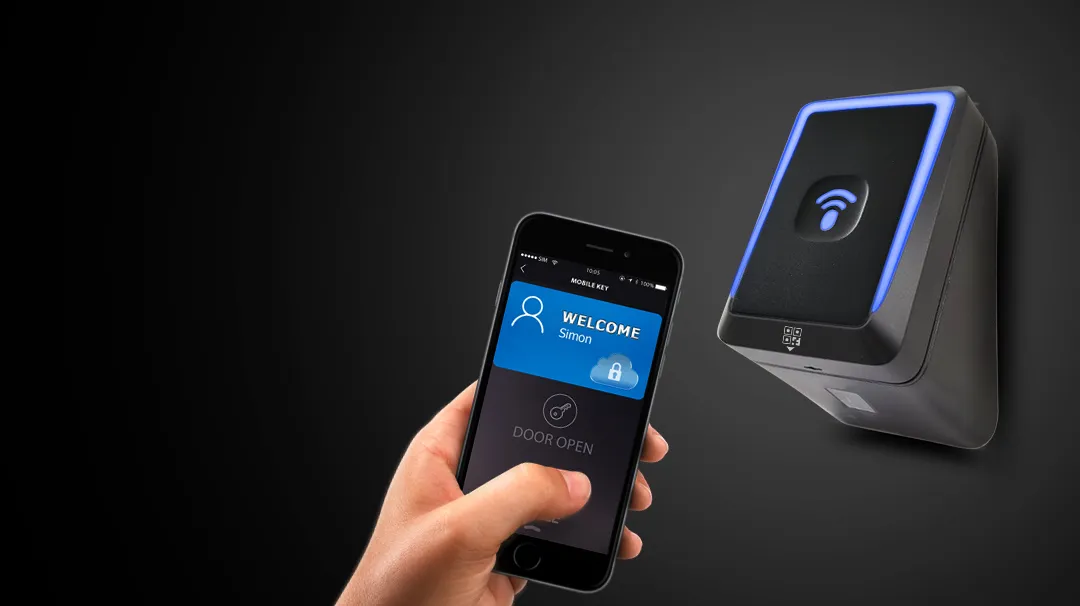

Your Phone Is The Room Key

Touch free access control by using personal mobile phone via NFC and BLE credential, with configurable BLE reading range for hand free access control.

CT9 PRO_Cloud Server Real-time Online Remote Access Control_CIVINTEC

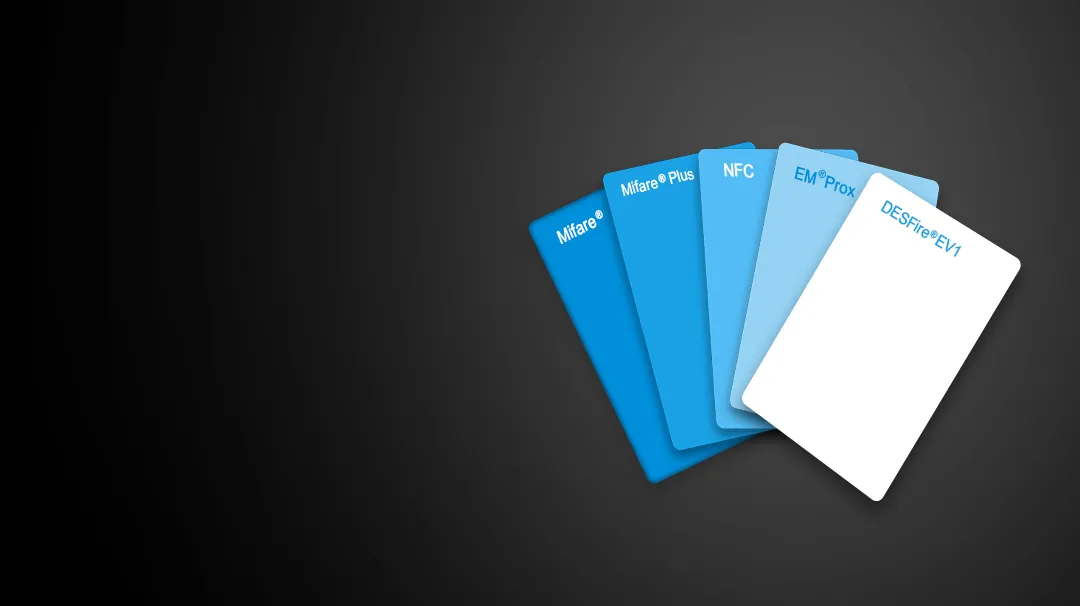

Secure RFID Smart Cards

Cidron reader supports 13.56MHz technologies, MIFARE Classic®, MIFARE PIus® and DESFire®EV1/EV2/EV3 combined with 125KHz technologies, which makes it ideal to use where several card populations with different RFlD-technologies or frequencies should be used at the same time.

CT9 PRO_Tamper Alarm Access Control_CIVINTEC

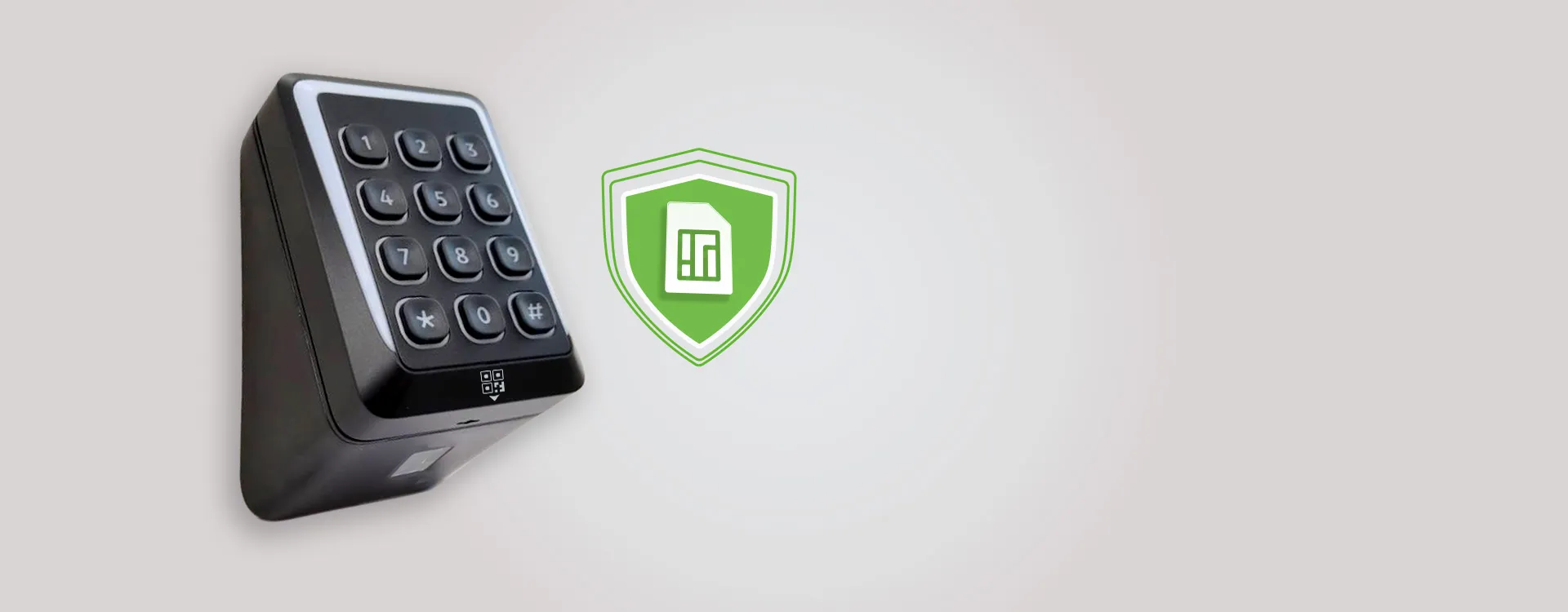

Secure Access Module

Cidron reader features a contact card socket to read secure Access Module's (SAM's) embedded on a SIM-card sized contact chip. Cidron is compatible with MIFARE ® SAM AV2/AV3 which gives the possibility to increase further the security of storing encryption keys (Evaluation Assurance Level, EAL 5+) and also allows for diversification of encryption keys.

CT9 PRO_touch screen access control_CIVINTEC

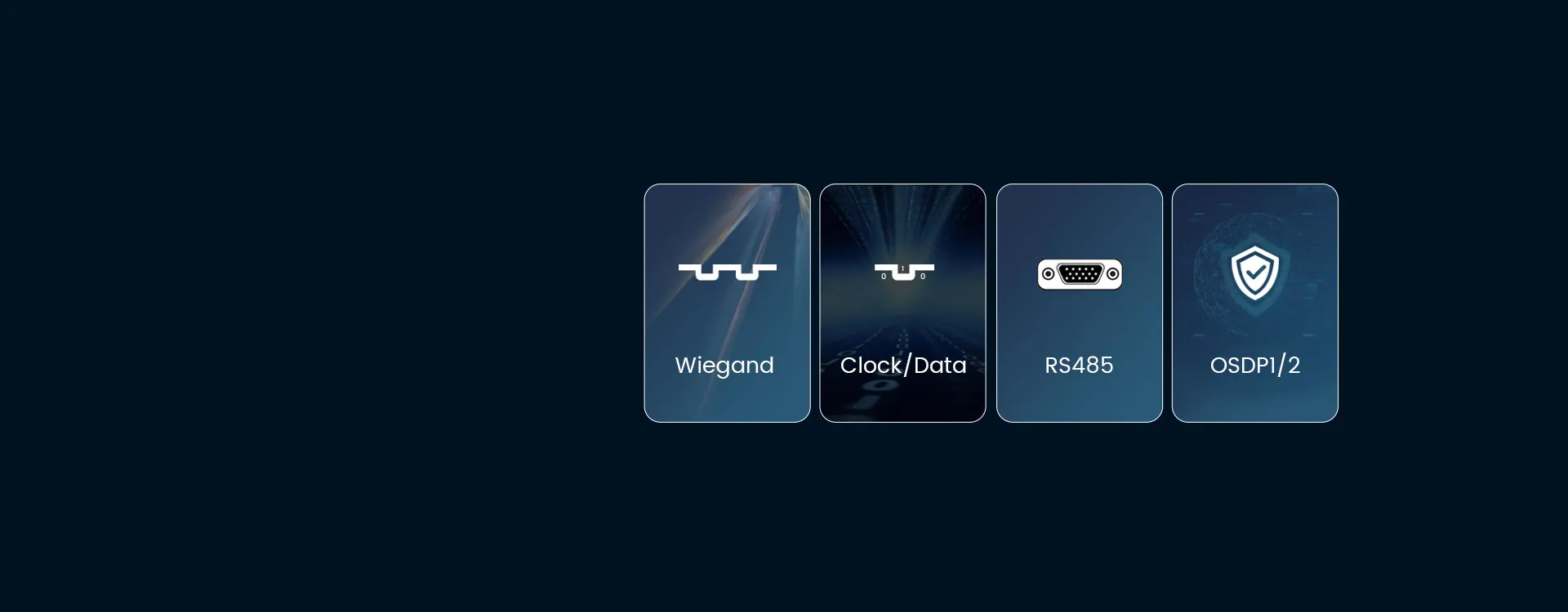

Multiple Communication Interfaces

Wiegand, Clock/Data, OSDP 1, OSDP 2 (including Secure channel) and RS485, offer universal compatibility to work with the third-party access controller.

CT9 PRO_PoE access control with relay_CIVINTEC


            CT9 PRO SDK for developer_CIVINTEC

Indicator

The substantial LED frame provides visual indications with green, red or yellow. The LED frame, backlight and buzzer can all be configured to indicate different operations and events using sound or light to communicate with the user. The indications can also be activated by external controls by using general purpose input/ output's (GPlO's).

CT9 PRO access control system_CIVINTEC

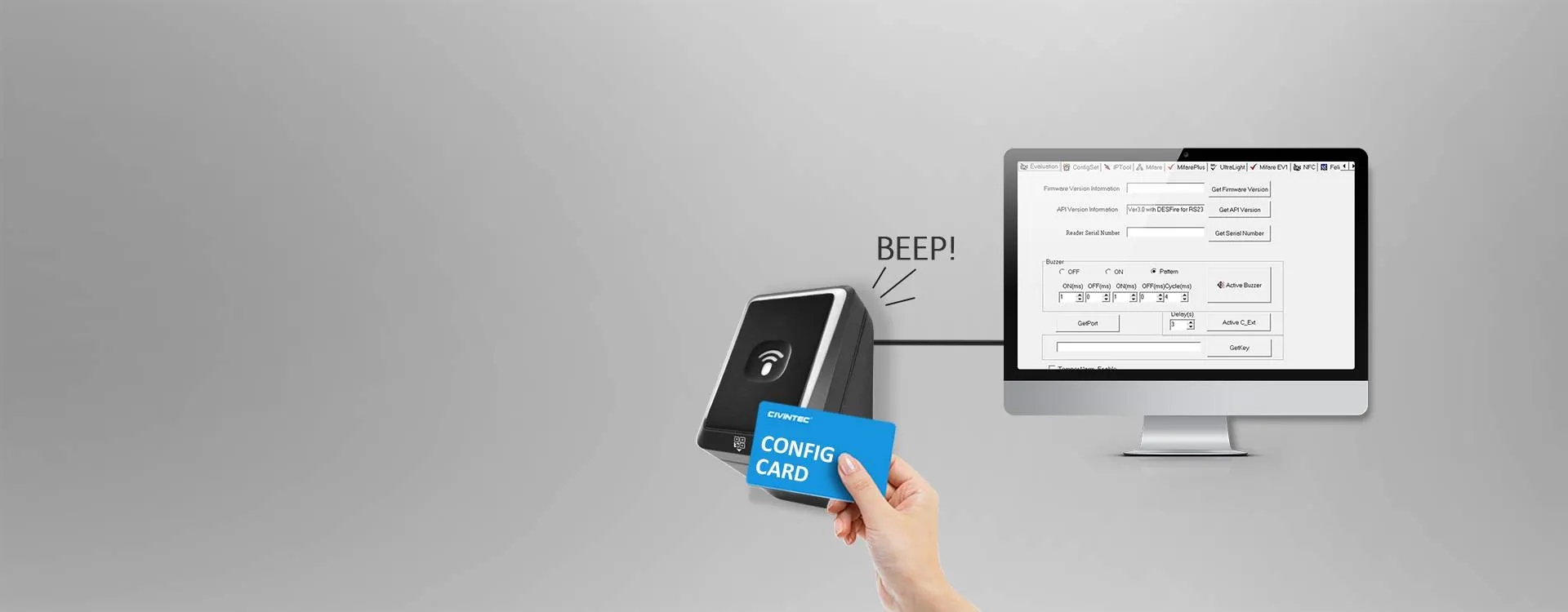

Plug & Play Testing Tool And Software Tool

CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.

CT9 PRO_Tamper Alarm Access Control_CIVINTEC

Specification


130x1450

Cidron QR
Cidron SERIES READER
Operating Frequency125KHz & 13.56MHz
Contactless ISO StandardISO14443A/B, ISO18092 NFCISO7816
Contactless Cards

- EM Prox, EM4100, EM4200

- MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1EV2EV3

- ISO18092 NFC (T2T, T4T) tags

Mobile IDISO18092 NFC, BLE
QR Code- Area image 640 x 480 pixels, Filed of View 68°(H) x 51(V)
- Decode range: 20mm-150mm(QR 20MIL)
- Roll/Pitch/Yaw: 360°, ±55°, ±55°
- Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code,PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.
Secure Access ModuleMIFARE SAM AV2/AV3, external SAM card connection slot
Communication InterfaceWiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE
Keypad12 digit keypad in 4 rows of 3 keys in each row with Blue LED backlit controlled to ON/OFF and auto, intensely adjustable
Indicators

- LED bar with red, green and amber intensely adjustable

- Buzzer

Power Supply9 – 30VDC
Input/Output4 input for LED and buzzer and 2 configurable GPIO’s
Tamper AlarmBuilt-in mechanical tamper switch which allows for indication both break off protection and opening of the reader
Operating Temperature-40° ~ +70°C. With thermostat controlled embedded heater
Operating Humidity0 ~ 95% RHNC (Relative Humidity No Condensation)
Ingress Protection ClassificationIP65 (request weather protection casing)
Harsh EnvironmentYes (keypad reader request silicon front plate)
Housing Dimensions143*80*91 mm (Standard); 180*95*63 mm (Slimline)
Configuration MethodsConfiguration card, reader tool software or factory configured readers


* The specifications are subject to change without notice.
