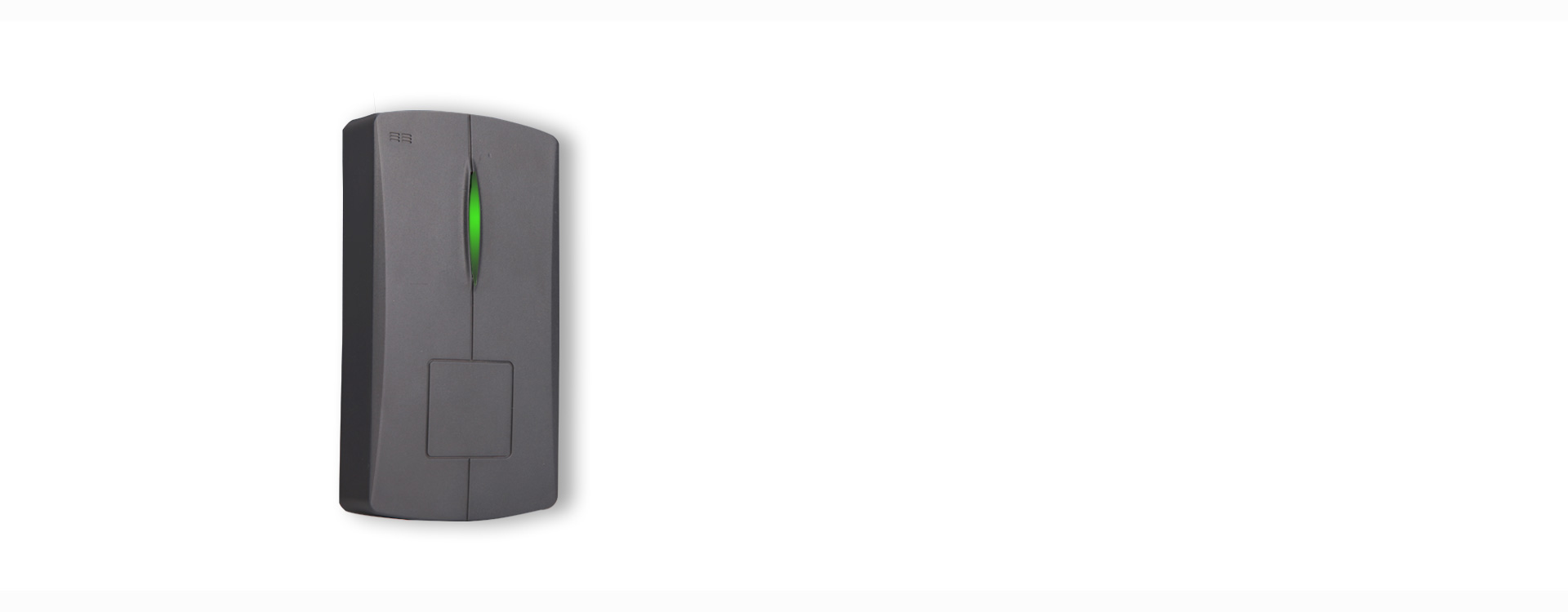

Contactless NFC Smart Card Reader

CN56X0B

Technology-packed Reader Introduce NFC, Mifare®Plus, Desfire®EV1

Access Control Reader

Combined with lSO18092 NFC and encrypted smart card, CN56X0B series reader makes access control more secure and smart.

Identification Technology

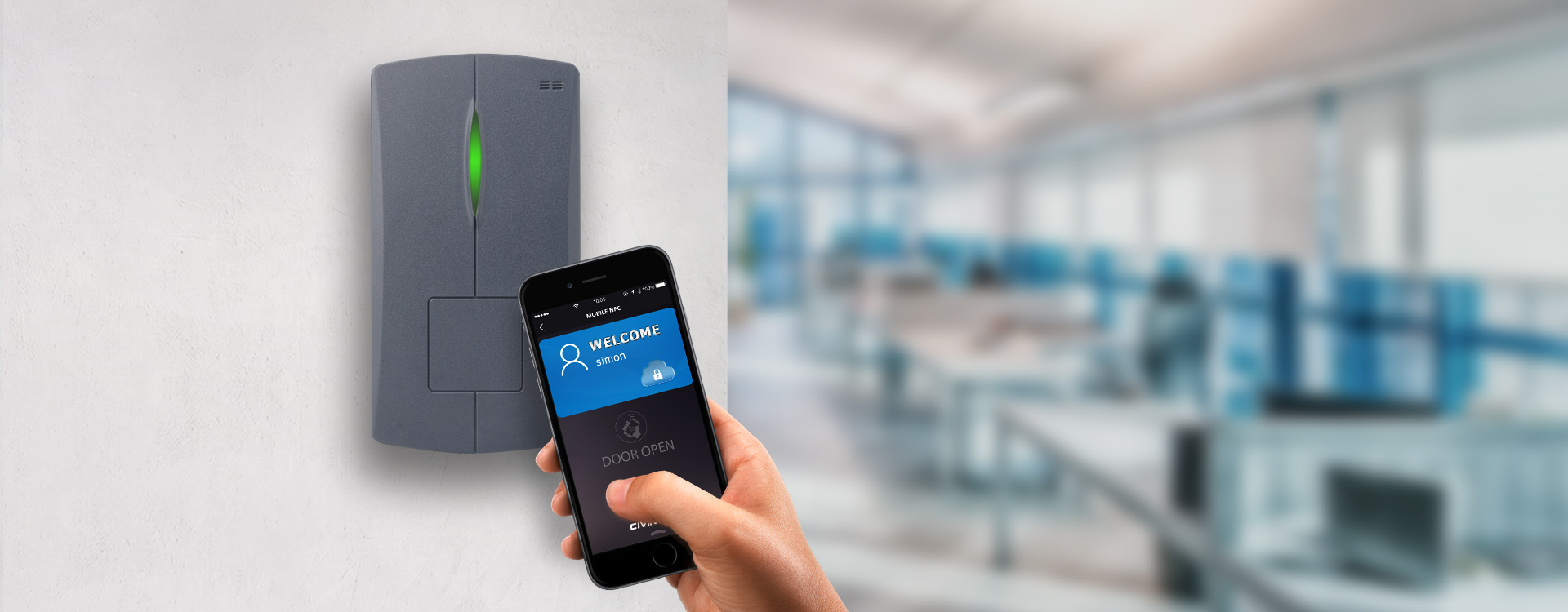

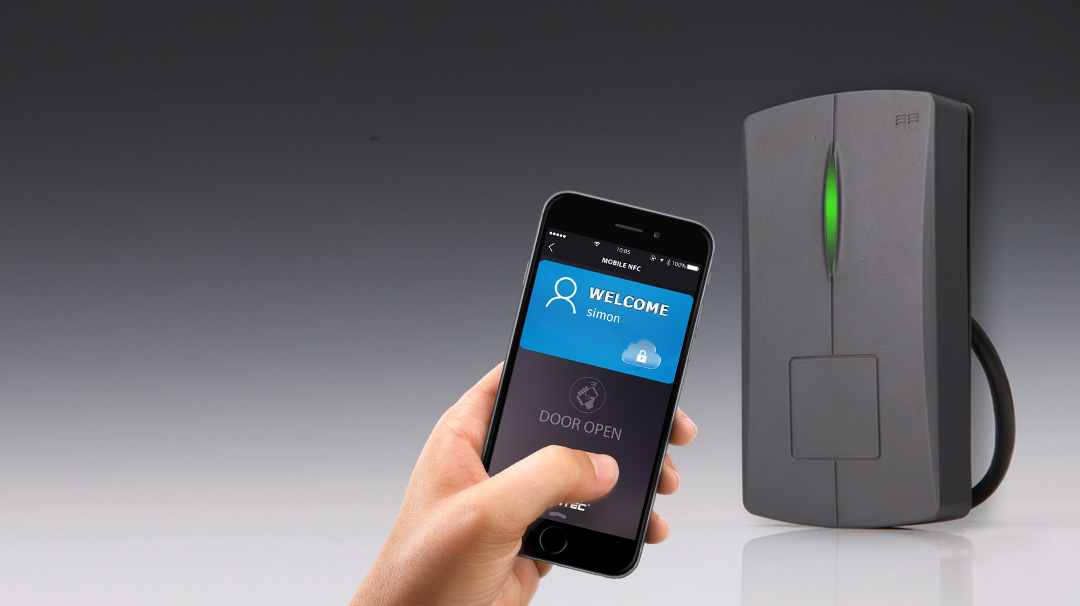

Mobile Keyless Access Control

Mobile Keyless Access Control

Introduce lSO18092 NFC smart phone as access credential to build smart access control for easy management

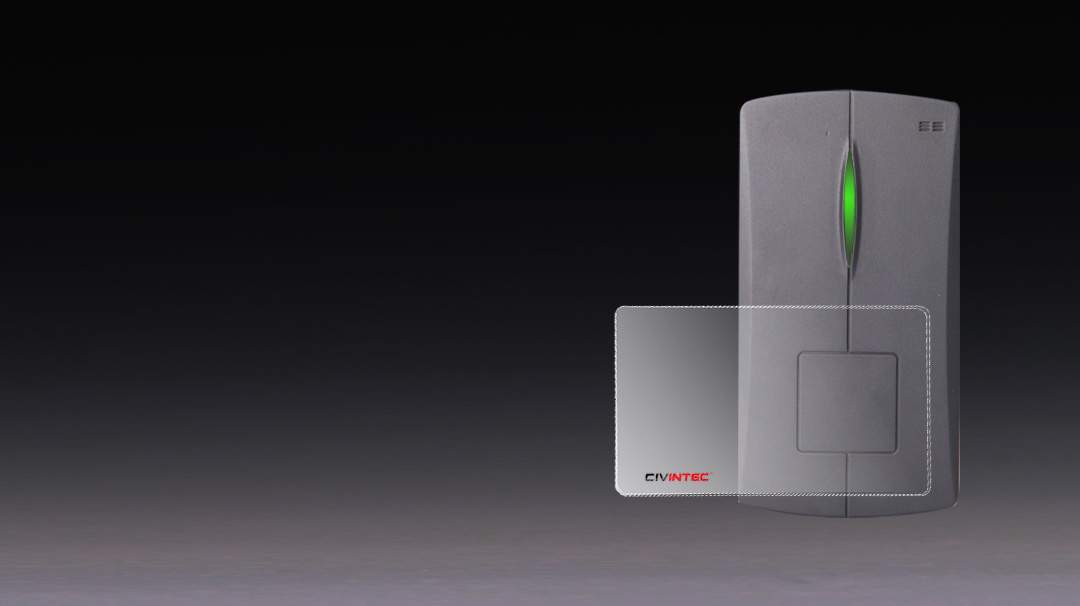

Introduce 13.56mhz Versatile Smart Cards

Introduce 13.56mhz Versatile Smart Cards

Mifare®, Mifare® Plus, DESFire® EV1, Ultralight®C, FeLiCA® and NFC tags Encrypted smartcard supported

Tailored Indicator

Fully Controllable bio-color LEDs and buzzer through software to meet various tailored setting.

High Compatibility With Controller As Slave Reader

With multiple-interfaces in various output formats, and wide operating voltage, CN56X0B is with high compatibility for most controllers on the market.

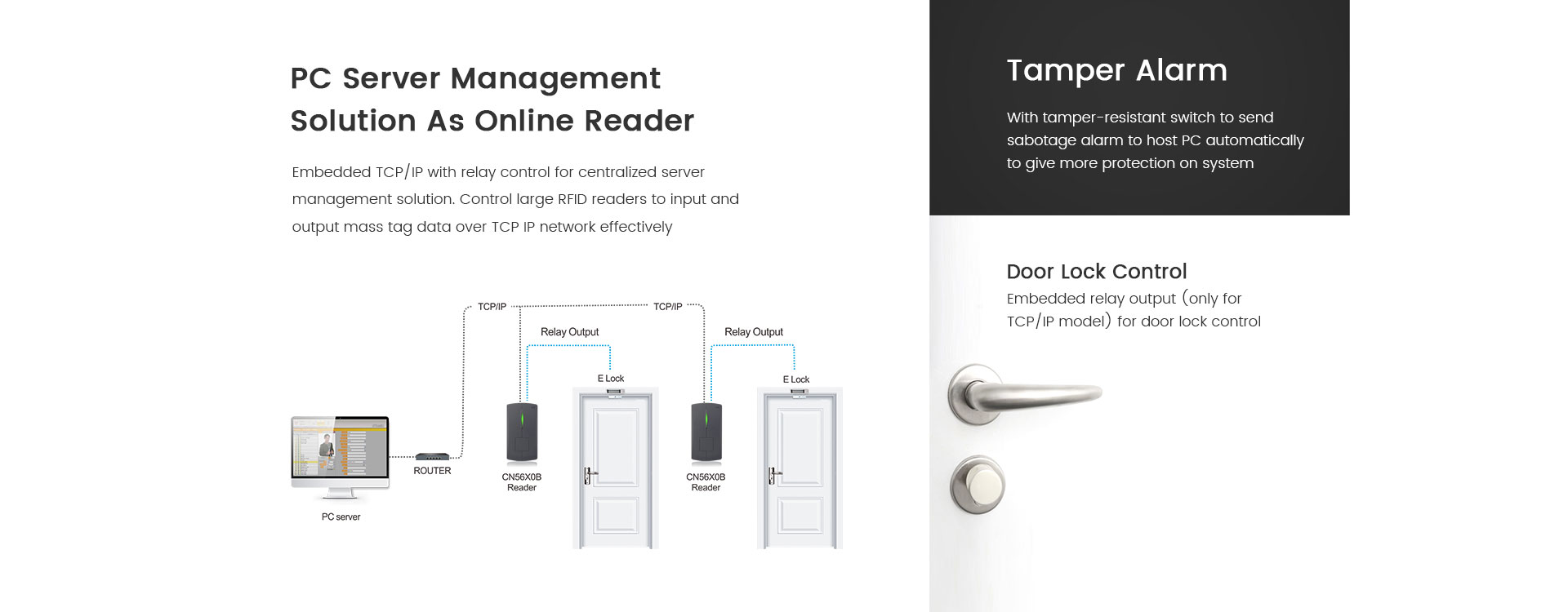

TCP/IP Networked Management

Embedded TCP/lP with HTTP protocol supported and versatile interfaces Wiegand 56, RS232, RS485,Clock&Data, ABA

Specification




CN56X0B
CN56X0B RFID READER
ModelCN56X0B-X-XX
Operating Frequency13.56MHz
RFID StandardISO18092 NFC peer to peer
RFID Card SupportedUltralight, Mifare® 1K/4K, Mifare® Pro/Prox, Mifare® Plus, DESFire ®EV1 and other ISO14443A,NFC tags (T2T, T4T) compatible cards, Sony Felica, ISO14443B on request
Power Supply9V DC (9-24V), <150mA
Interface

RS232RS485TCP/IPWiegand (26, 34, 42, 50, 58) / Clock & Data 8, 10 / ABA1 , 2

Dimension116*67*14mm
Reading output formatWiegand 26, 34, 42, 50, 58 / Clock & Data 8, 10 (3 byte, 5byte, HEX, ASCI I ) / ABA1 , 2
Keypad output format4bit, 8bit, wiegand 26
Keypad-----
IndicatorsBio-color LED and Buzzer controlled by three-wires
Reading Distance50 - 100mm (depending on antenna, transponder)
Writing Distance30 - 70mm (depending on antenna, transponder)
Operating Temperature-20°C`+60°C/-4°F`140°F
Storage Temperature-20°C`+60°C/-4°F`140°F
Operating Humidity0 ~ 95% relative humidity non-condensing
Housing MaterialABS
Protection Classelectric epoxy potted for harsh environment



* The specifications are subject to change without notice.
