CRYTAL CK5

Quick look

CRYSTAL KEYPAD READER provides a multiple platform of RF-ID technologies and communication interfaces equipped with an OLED display and a mechanical keypad in a timeless design. CRYSTAL KEYPAD READERs achieve almost all kinds of applications and environments for indoor and outdoor installations and to the highest level of security.

CRYSTAL KEYPAD READER incorporates several technology and communication interface standards. For access control systems supporting OSDP secure channel a credential transaction can be completed with AES encryption secured during the card reading and transmitting process between the reader and the access control controller. CK5 keypad access control reader supports Wiegand or RS485 universal interface to work with the 3rd controller and synchronizes data to Cloud/PC in real time via the controller to build IoT access control under 4G WiFi network.

In additional, CK5 readers support 13.56MHz and 125KHz also BLE 5.0 with and SAM AV2 encryption. This combination makes the product flexible for all kind of security applications and future technology requirements applicable for the security industry.

The LED symbol indicates in combination with display text and buzzer sounds a user-friendly and clear information in real time for the user.

CRYSTAL KEYPAD READER is equipped with a tamper switch which allows for indication on attempts of break off and manipulation of the reader.

Advantages

. 2.4" OLED display with keypad reader

. With embedded RFID reader compatible to dual frequency full range of 125KHz and 13.56MHz Ultralight, Mifare, Mifare Plus, DESFire EV1/EV2/EV3 cards

. BLE & NFC for Mobile credentials access control by using mobile device

. Wiegand and RS485 (OSDP Secure Channel) communication interface, high compatible to third party controller

. OTA Firmware upgrade support

. CK5 touch keypad reader is IP65 waterproof for outdoor installation

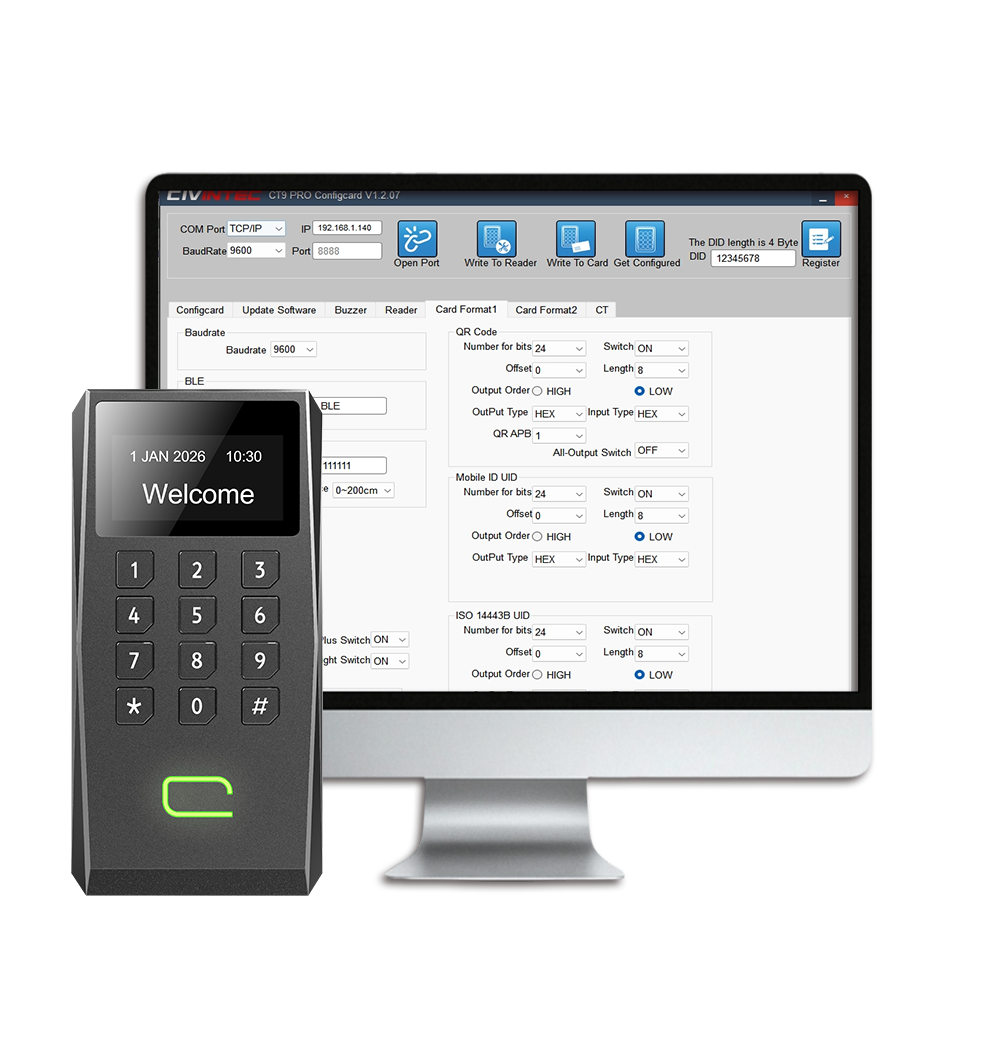

For user testing, configuration and FW upgrade

- Hardware testing package (HTP)

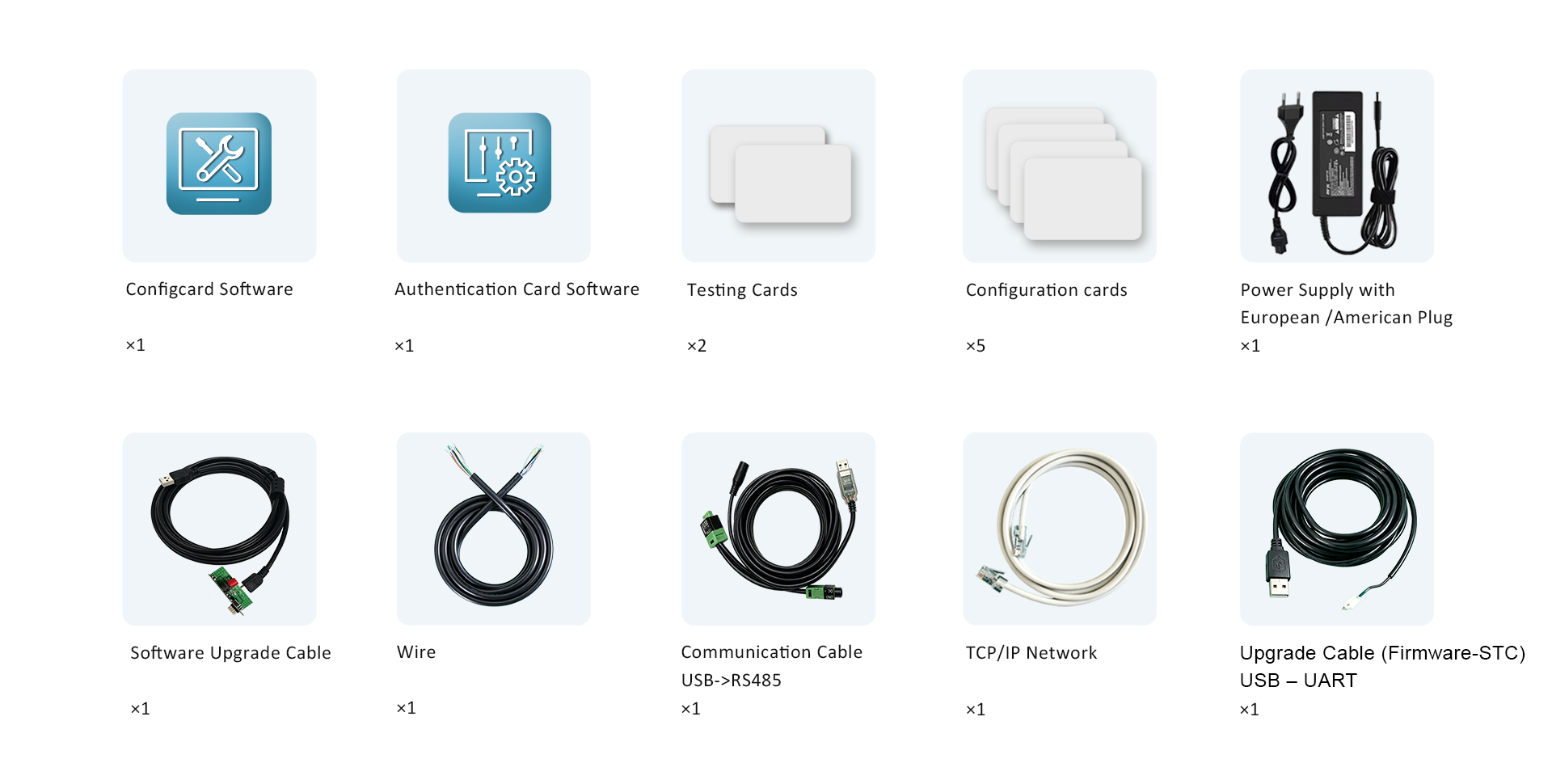

We provide customer HTP package, in order to customers make CK5 testing, configuration using software or locally with cards, and later may make FW upgrading by OTA. The HTP package includes:

(1) Hardware package

(2) Configcard software for CK5 configuration

(3) Authentication card software (customer) & authentication Card/Change Authentication Card/Configuration Card /OSDP Installation Mode Card.

The software and four kinds of cards are used for achieving CK5 configuration locally.

(4) OTA software

OEM & Customization Service

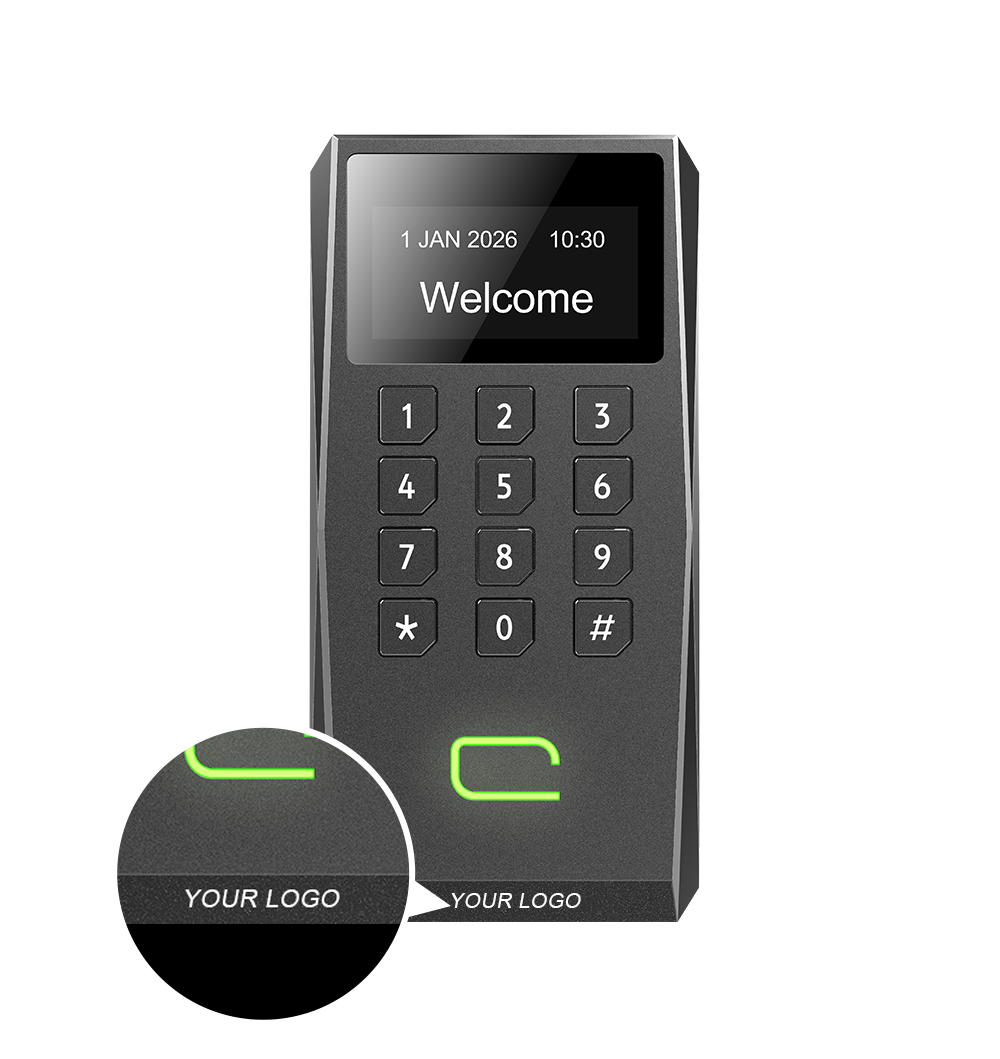

OEM service to enable logo printing in single or full color or program LOGO to display on touch screen. We also offer development customization service from hardware new features to firmware development.
