Cidron E

Quick look

Cidron E series is a slimline reader operating on 13.56MHz. The Cidron E series allows for controlled upgrading of secure RFID technology such as Mifare® DESFire® EV1/EV2/EV3 which operates on 13.56MHz and allows for AES128 encrypted communication between credential and reader. Cidron E reader series supports reading of 13.56MHz technologies, for instance, Mifare® Classic sector and Mifare® DESFire® EV1/EV2 application combined.

The Cidron E series slimline reader has a symbol at the front of the reader which will be lit when a card is presented to a reader configured to auto mode. The substantial LED frame provides visual indications to the user, the LED frame can indicate green, red or yellow. There is also an embedded buzzer that can be used for audible indications. The LED frame,backlight and buzzer can all be configured to indicate different operations and events using sound or light to communicate with the user. The indications can also be activated by external controls by using general purpose input/output's (GPIO's), for instance an individual reader can be configured to light up the LED frame in green or red by the fire alarm system depending on which GPIO the fire alarm system is connected to.

The Cidron E reader series also includes a range of built-in accessories that facilitates installation, assist in complying with legislation and protects the reader from external factors. The Cidron family reader is designed for surface mounting but can also be fitted to standard European installation boxes.

With the array of communication protocols available in the Cidron reader it makes it extremely versatile and can be installed in most physical access control systems without any additional plug-in modules. The Open Supervised Device Protocol, OSDP is a bidirectional communication protocol developed by SIA (Security Industry Association) which provides continuous monitoring of the reader but if applied it also enables AES128 encrypted communication between the reader and the controller. This so called "Secure Channel" is available in Cidron readers.

Advantages

· Timeless design reader in slimline size

· 13.56MHz Mifare® Classic, DESFire®  EV1/EV2/EV3

· Wiegand and RS485 communication interface

· OSDP Secure Channel

· High compatible to third party controller

For developer

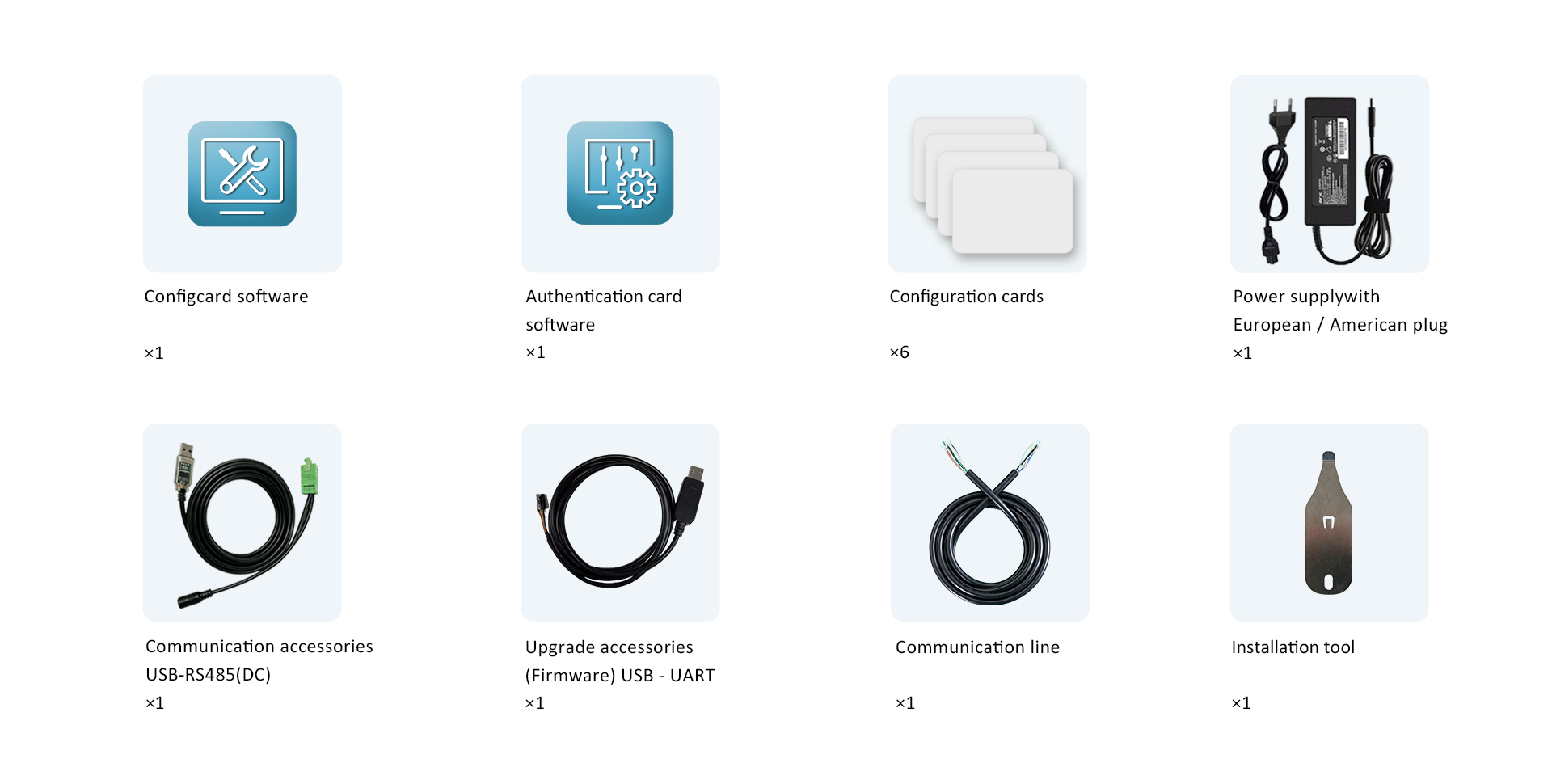

- Hardware testing package (HTP)

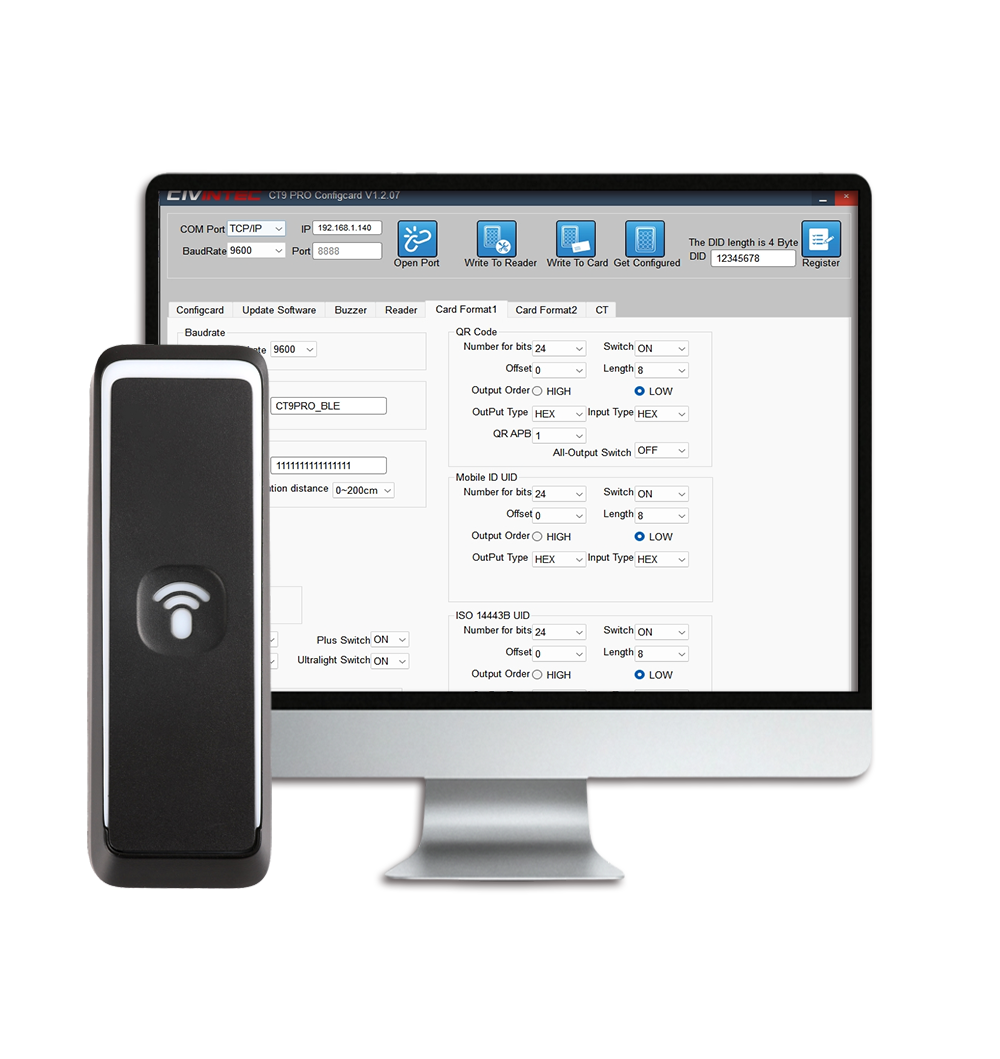

HTP is plug and play hardware testing, debug and upgrading package with all necessary accessories, software tool, configuration card to establish full testing environment for customer’s easy test, device configuration, fast development and software upgrade.

OEM & Customization Service

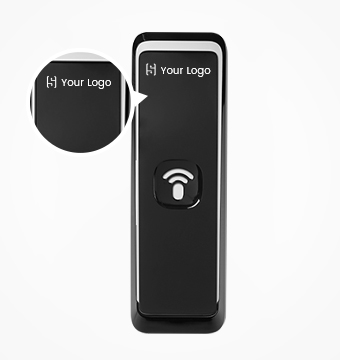

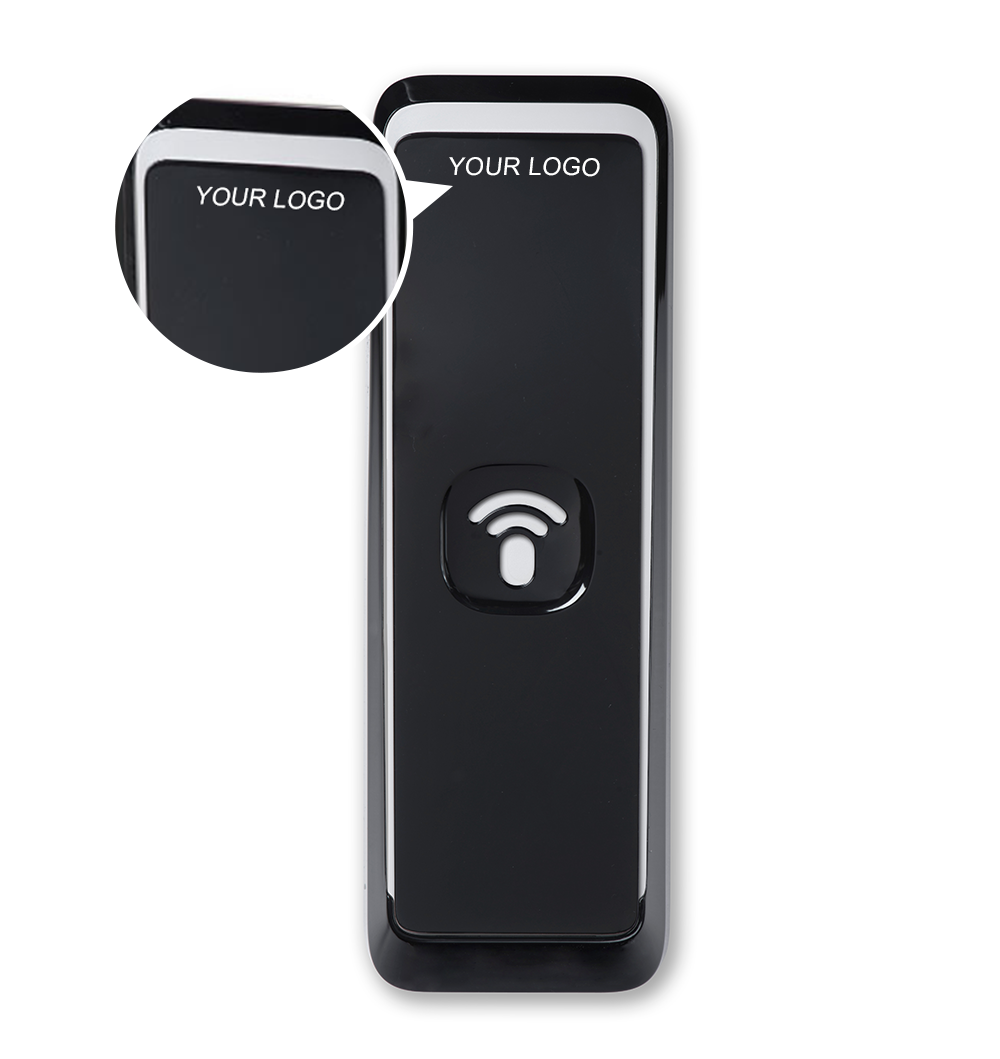

To make product stand out from the crowd, we offer the opportunity to profile your readers for increased recognition. OEM service to enable logo printing in single or full color. We also offer development customization service from hardware new features to software development.
