Case Study

Access control systems play crucial role in ensuring security, managing flow, and maintaining order in diverse environments such as residential complexes, corporate offices, industrial facilities, and public venues. Barrier access control system are installed to regulate and monitor entry and exit points efficiently. CT9 PRO smart cloud remote controlled access control terminal provides an effective and agile physical access control solution for turnstile integration.

CT9 PRO access control systems can be equipped with tripod turnstile gate, speed gates, flap turnstile gate, revolving cross door or swing barrier gate for security access control. CT9 PRO turnstile access control system supports multiple advanced identification technologies to allow or deny entry based on the presented credentials. Its main function is to ensure that only authorized personnel can enter specific areas while providing an efficient and safe access experience.

1. How does the turnstile door access control system to work?

CT9 PRO turnstile access control system verifies visitor’s credential to check the permissions. With 1~2 relay output and two inputs (door contact, door exit), CT9 PRO controls electronic lock or turnstile to give access and display “ACCESS GRANTED with valid time” on 3.5” touch screen. The code can also be set with an expiration according to the schedule booking. If an expired code is presented or incorrect location, CT9 PRO will deny the access and display “Access Denied with failure reason”. CT9 PRO is ideal for cloud server remote control to achieve booking time and information which offer flexible customization for your innovative booking and access control solutions.

2. Turnstile Access Control System Technology

. Proximity RFID Smart Card : Users present RFID smart card to CT9 PRO for authentication. The card is compatible with 13.56MHz & 125KHz DESFire EV1/EV2/EV3, Mifare cards etc.

. Keypad/PIN Entry: Users enter a personal identification number (PIN code) on the access control terminal for access.

. NFC/BLE Mobile Credential: Mobile-based access offers users use NFC/BLE credential to approach the barrier gate access control system, if the valid credentials have been verified by the cloud server, CT9 PRO flashes green, notifying the user that the door has open. If the credentials are invalid, the CT9 PRO flashes red, and you don't have permission to access the barrier gate.

. QR Code Scanning: users scan QR codes displayed on mobile devices for identification.

3. The Benefits of Access Control Systems for Turnstile

Enhanced Security: Turnstile access control system provide a robust physical barrier, greatly eliminate the risk of unauthorized entry or trespassing.

Efficiency and Automation: Automated turnstile access control system eliminates the need for 24-7 staffing, ensuring seamless operations and reducing labor costs.

Flow Management: By controlling the rate of passage, turnstile access control system prevents overcrowding and streamlines traffic. This is particularly beneficial in high-traffic areas likes metro stations, stadiums, offices, amusement parks or parking lots.

Data Logging and Monitoring: CT9 PRO supports bidirectional communication protocols HTTPS/HTTP to synchronize data with the web server in real-time over 4G, Wi-Fi, and BLE networks. This ensures accurate tracking of access events and the recording of relevant data. The logs record collected can also assist enterprises in monitoring the number of visitors on-site, ensuring that venues maintain adequate capacity.

Integration with Alarm System: CT9 PRO seamlessly integrates with other external device, involving property management systems, light, alarm to build comprehensive access control solutions for IoT facility.

Membership and Management: CT9 PRO turnstile access control system has with embedded QR code generator to display dynamic QR code on 3.5” touch screen. A web-based remote management software can also remotely display QR code on screen for visitor’s mobile phone to scan, ideal for self-service registration, online cashless payment and access control turnstile applications. For leisure and entertainment venues , the turnstile will open at the exit only after all fees are paid.

Cost-save Installation: As the terminal CT9 PRO is with local network TCP/IP connectivity and integrated PoE together for less wiring and cost-save installation.

Weather-resistant Protection: With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.

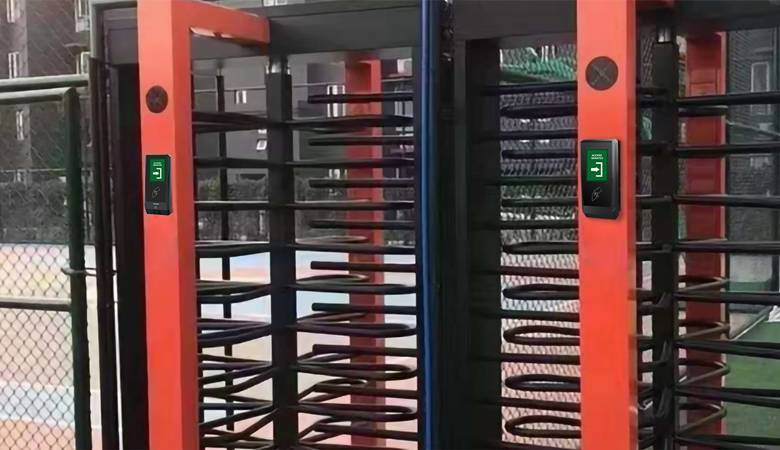

Turnstile IN & OUT Access Control

CT9 PRO is with Wiegand or RS485 port to connect with access control reader for turnstile IN and Out in a one-way direction access control. Cidron family access control readers are recommended for best performance to achieve an encrypted secured level of smart card and BLE technologies.

Customization Service

As manufacturer and designer of CT9 PRO, we offer customization service from hardware design to software to well meet CT9 PRO technologies integration into your turnstile device. Today the competition is very tough in many markets, making it increasingly more important to stand out from the crowd and therefore we also offer the opportunity to profile your access control devices for increased recognition. You can program your company LOGO to display on 3.5” touch screen or print LOGO on terminal body.

 Turnstile access control system as the backbone of modern security systems, offering a blend of functionality, efficiency, and reliability.
