Case Study

CT9 Pro is All-IN-ONE new sport court automat terminal for court reservation, access control, light control, rental and vending. CT9 Pro as a controller with integrated 4G and TCP/IP connectivity to cloud-based back-end to get all the data synchronized and commands control, and enables administrators to know the real time activities of the sports court and to management. 4G version provides wireless communication and flexible installation, do not require network infrastructure on site.

CT9 Pro automated door lock system is designed with relay output to control electronic or magnetic lock, or turnstile, and versatile facilities like court light.

CT9 Pro manages club member by using RFID club card or member’s mobile phone APP to check the permissions and scan temporary visitor’s QR code or barcode displayed on mobile phone or paper printed. It also supports fixed or dynamic pincode for staff and visitors.

With 3.5” touch screen, CT9 Pro automated door lock system is intuitive for visitor to check the status of full information as access, payment, booking time etc. It’s fully controllable for cloud server software to send commands in real time to display image with TEXT to provide clear and visible information to visitor, for example, ACCESS GRANTED, ACCESS DENIED, Visitor’s Name with clock data. Moreover, CT9 Pro is with embedded QR code generator to display dynamic QR codes on a 3.5” screen for visitors to scan by smartphone or Pad for online payment.

Cloud Based Access Control Management System

CT9 PRO is All-in-One Linux HTTP access control & IoT terminal to build cloud server centralized & remote control solutions. It features with wireless 4G, WiFi communication, flexibility and unlimited for various installation occasions without huge infrastructure for client. It supports TCP/IP Ethernet HTTP/HTTPs for both LAN and Internet Cloud Server Software, with PoE (Power Over Ethernet) for less wiring and lost cost installation.

As online reader, CT9 PRO use GET/POST command via standard HTTP/HTTPs to get bio-direction communication between CT9 PRO and third-party cloud server. It works as client to automatically detect if server is online running. When CT9 PRO establishes a connection with the cloud server, it can automatically receive HTTP commands from the cloud server or actively send HTTP commands to the cloud server. Each device with MAC address to avoid IP conflict for smart devices remote management under internet.

CT9 PRO is with embedded relay control, it can work as cloud server management terminal and also standalone control terminal to control lock, light and facilities. CT9 PRO has HOST mode or Local mode for selection to meet different system platform integration.

▶  HOST Mode

CT9 PRO HOST mode provides fully cloud server remote control in real time. Server software remotely get user/visitor’s ID and check the permissions, send commands to activate CT9 PRO relay and control screen to display specific image with TEXT for intuitive guide.

▶ Local Mode

CT9 PRO Local mode provide device locally control application. It is with large memory locally to store user/visitor’s ID and read to check the permissions to activate the relay locally, with 4G, WiFi or TCP/IP to synchronize the event logs to server.

CT9 PRO Multi-Technology Identifications

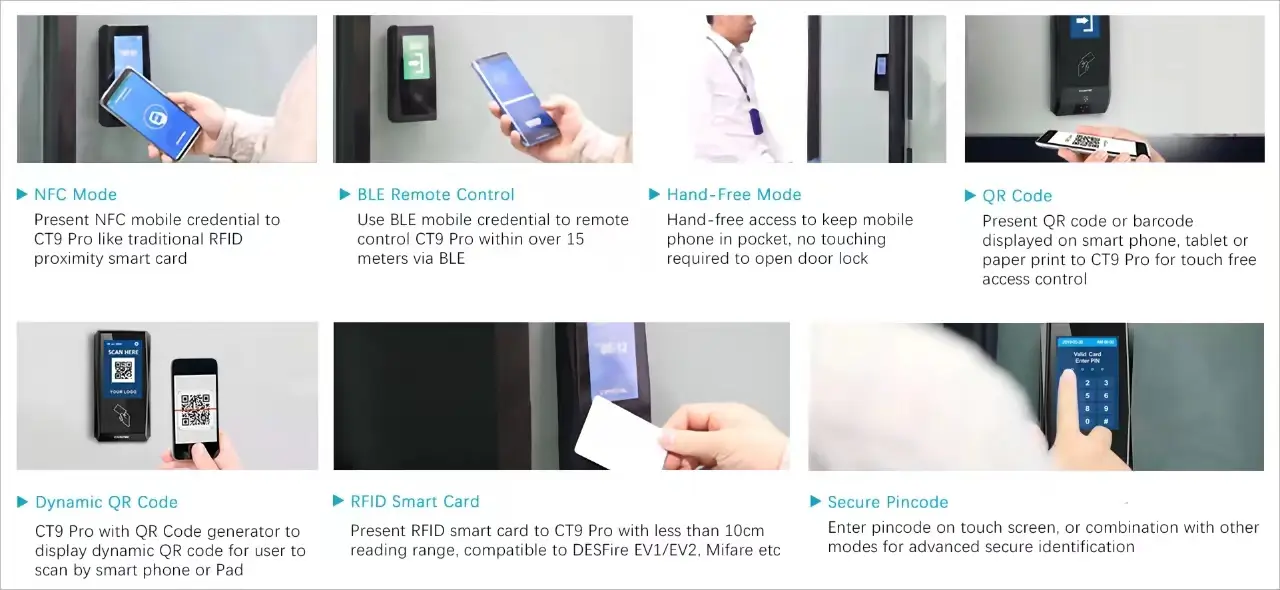

CT9 PRO incorporates with 5-in-1 multiple access credential technologies, use the latest technology BLE and NFC mobile access credential, QR CODE, Barcode by using mobile phone for visitor access control management, and RFID dual 125KHz & 13.56MHz smart cards and touch keypad. This combination makes the product flexible for all kinds of security applications and future technology requirements applicable for the security industry.
